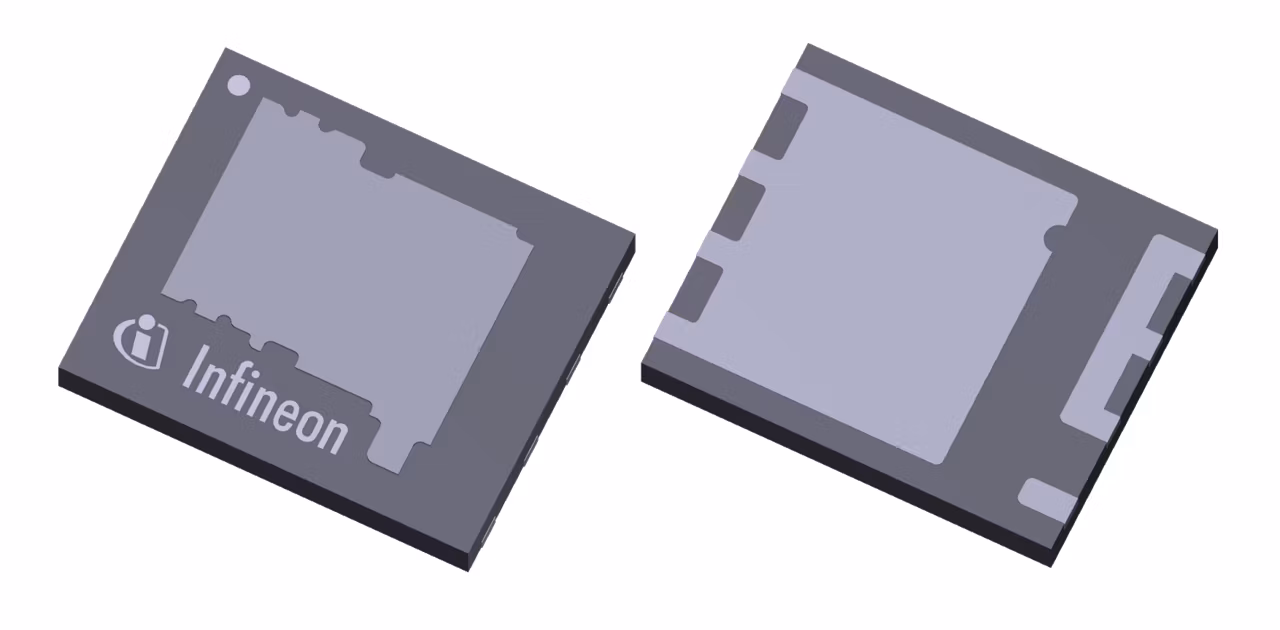

BSC160N15NS5SC
  • BSC160N15NS5SC

BSC160N15NS5SC

Active and preferred

OptiMOS™ 5 power MOSFETs 150 V in SuperSO8 DSC (dual-side cooling) package offers thermal benefits of dual-side cooling with industry-standard footprint. About 30% of the heat generated on the MOSFET die is transferred through the top and less heat is transferred to the PCB, thus, either the PCB runs cooler at the same power dissipation improving reliability, or more power can be handled by the MOSFET for higher power density.

Infineon Technologies BSC160N15NS5SC Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.14

ID (@25°C) max

56 A

IDpuls max

224 A

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6 DSC

Polarity

N

Ptot max

115 W

QG (typ @10V)

19 nC

RDS (on) (@10V) max

16 mΩ

Special Features

Dual-Side Cooling

VDS max

150 V

VGS(th) range

3 V to 4.6 V

VGS(th)

3.8 V

Features

  • High performance silicon technology
  • Low top-side RthJC (0.94 K/W)
  • Package rated to TJmax=175ºC
  • Industry standard footprint
  • Compatible with SuperSO8 and PQFN 5x6

Description

  • Low losses for high system efficiency
  • Improved heat dissipation
  • Superior power handling & longer life
  • Drop-in replace SuperSO8 & PQFN 5x6
