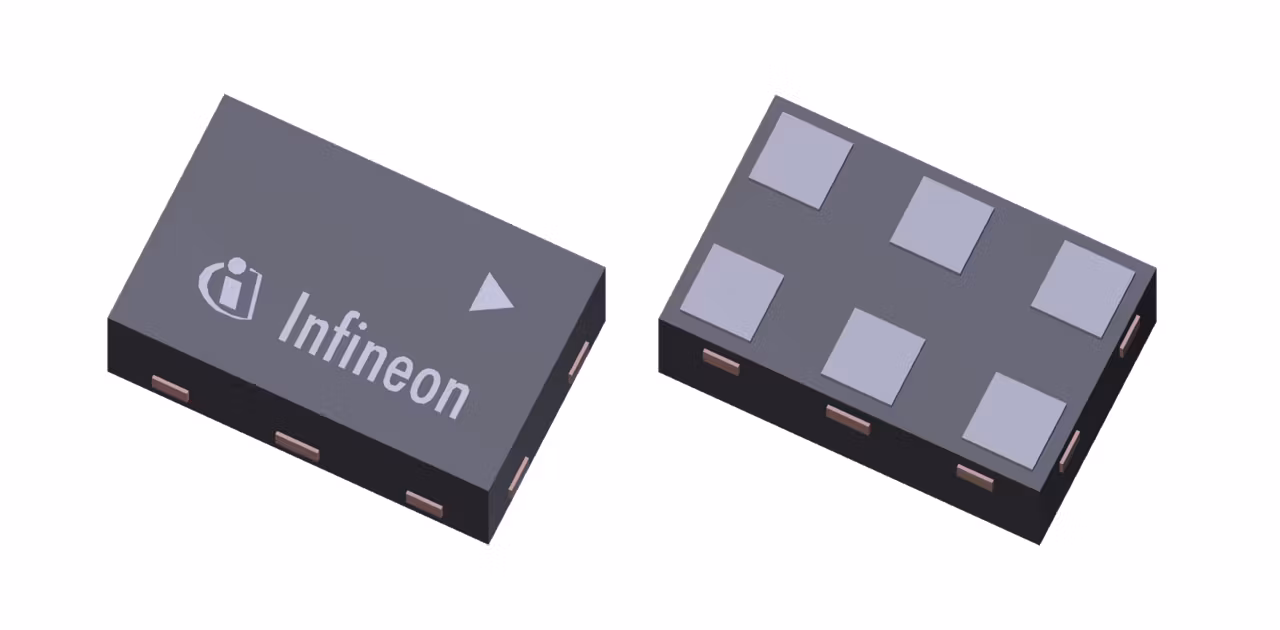

BGA123N6
  • BGA123N6

BGA123N6

Active and preferred

The BGA123N6 is designed to enhance GNSS signal sensitivity especially in wearables and mobile cellular IoT applications.With the very good performance, it ensures high system sensitivity. The ultra-low power consumption of 1.5mW preserves valuable battery power, ideal for small battery powered GNSS devices. The wide supply voltage range from 1.1 V to 3.3 V ensure flexible design and high compatibility. It supports all GNSS systems including GPS, GLONASS, Beidou and Galileo.

Infineon Technologies BGA123N6 Product Info

16 April 2026 0

Parameters

Frequency

1550 – 1615 MHz

Gain

19 dB

ICC

1.35 mA

IIP3

-7 dBm

NF

0.75 dB

P-1dB (in)

-15

VCC operating range

1.1 V to 2.8 V

Apps

Automotive telematics control unit (TCU), Mobile device and smartphone solutions, Consumer Wearables

Features

  • Operation frequencies: 1550 to 1615 MHz
  • Ultra low current consumption: 1.3 mA
  • Wide supply voltage range: 1.1 V to 3.3 V
  • High insertion power gain: 19.0 dB
  • Low noise figure: 0.75 dB
  • 2 kV HBM ESD protection (including AI pin)
  • Ultra small and RoHS/WEEE compliant package
