IRS25752L
  • IRS25752L

IRS25752L

Active and preferred

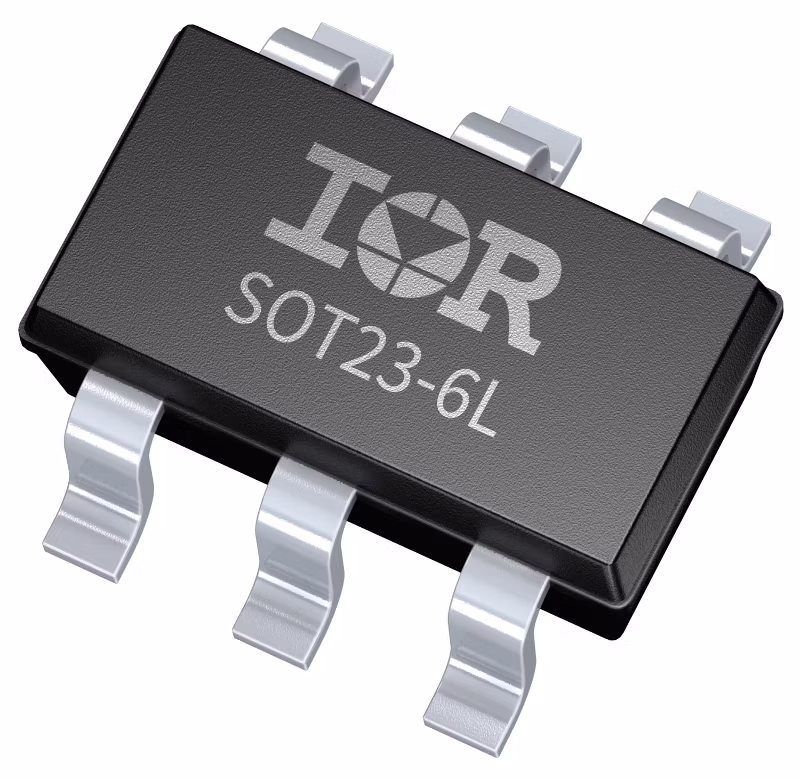

EiceDRIVER™ 600 V high side Gate Driver IC with typical 0.16 A source and 0.24 A sink currents in 6 Lead SOT23 package for IGBTs and MOSFETs .

Infineon Technologies IRS25752L Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

10 V to 18 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Source)

0.16 A

Output Current (Sink)

0.24 A

Qualification

Industrial

Turn Off Propagation Delay

215 ns

Turn On Propagation Delay

140 ns

VBS UVLO (Off)

8 V

VBS UVLO (On)

9 V

VCC UVLO (Off)

8 V

VCC UVLO (On)

9 V

Voltage Class

600 V

Apps

Cordless power tools and outdoor power equipment, Induction cooking

Features

  • Compact µHVIC™ device
  • Floating driver for bootstrap op.
  • Fully operational to +600 V
  • Operational to +200 V or +100 V
  • Excellent dv/dt immunity
  • Excell. negative vs transient immu.
  • Wide Vcc range
  • UVLO on low-side and high-side
  • Schmitt-trigger input
  • Output in phase with input
  • Integr. ESD protection on all pins
  • 5-pin SOT-23 package
