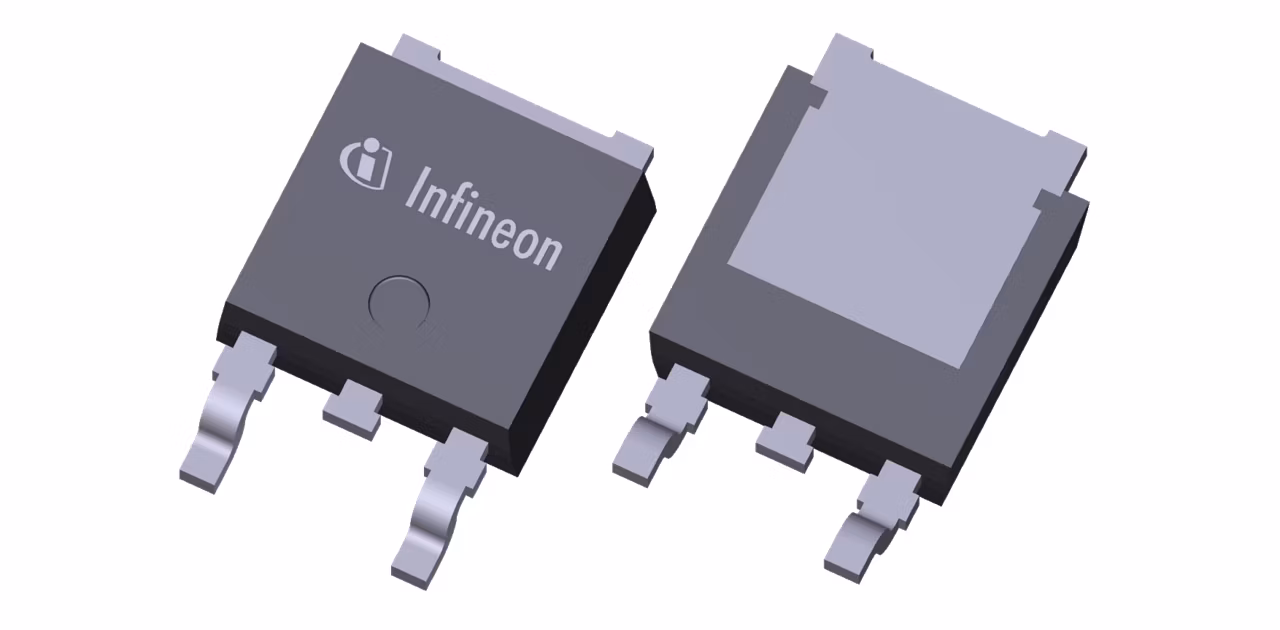

IPD135N03L G
  • IPD135N03L G

IPD135N03L G

Ultra low gate and output charge, together with lowest on-state resistance in small footprint packages, make OptiMOS™ 25V the best choice for the demanding requirements of voltage regulator solutions in servers, datacom and telecom applications. OptiMOS™ 30V products are tailored to the needs of power management in notebook by improved EMI behavior, as well as increased battery life. Available in halfbridge configuration (power stage 5x6)

Infineon Technologies IPD135N03L G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.2

Ciss

770 pF

Coss

350 pF

ID (@25°C) max

30 A

IDpuls max

210 A

Operating Temperature range

-55 °C to 175 °C

Package

DPAK (TO-252)

Polarity

N

Ptot max

31 W

QG (typ @10V)

10 nC

QG (typ @4.5V)

4.8 nC

RDS (on) (@10V) max

13.5 mΩ

RDS (on) (@4.5V) max

20.5 mΩ

RDS (on) (@4.5V LL) max

20.5 mΩ

Rth

4.9 K/W

Special Features

Logic Level

VDS max

30 V

VGS(th) range

1 V to 2.2 V

Apps

Automotive instrument cluster

Features

  • Ultra low gate and output charge
  • Lowest on-state resistance
  • Easy to design-in

Description

  • Increased battery lifetime
  • Improved EMI, no need for snubbers
  • Saving costs
  • Space saving
  • Reducing power losses
