ISC025N08NM5LF2
  • ISC025N08NM5LF2

ISC025N08NM5LF2

Active and preferred

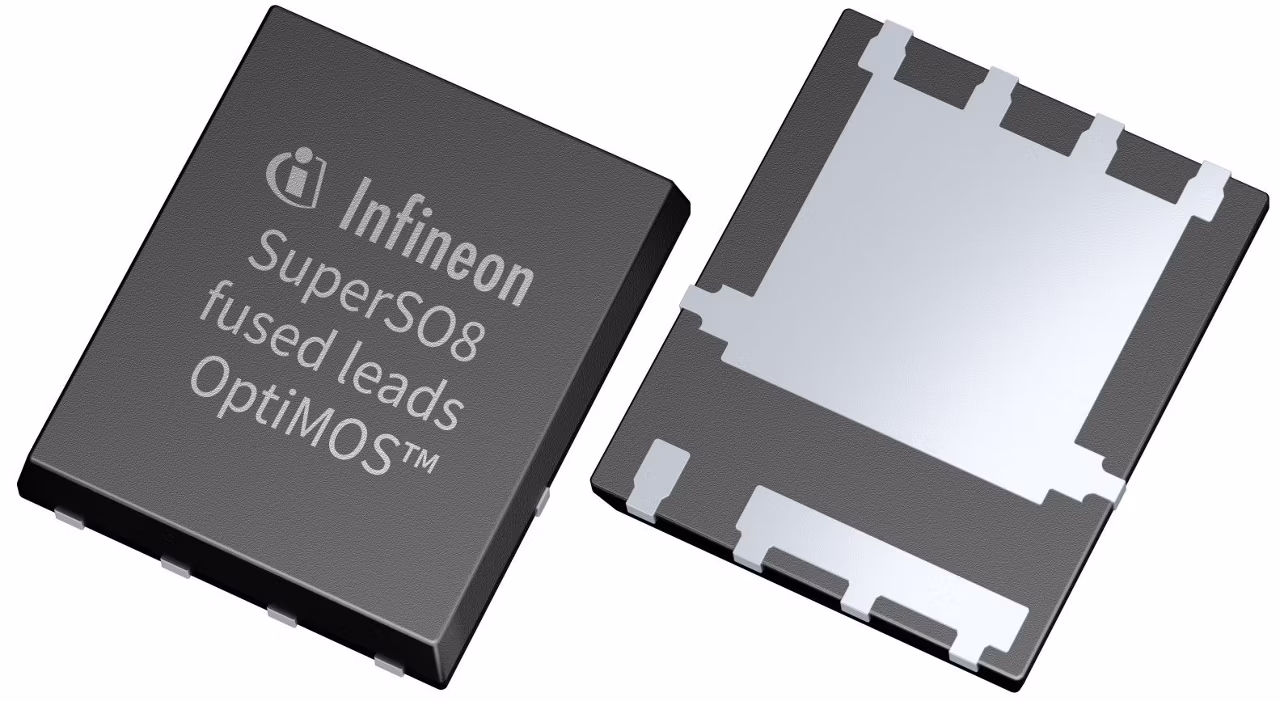

ISC025N08NM5LF2 is Infineon’s new best-in-class 80 V OptiMOS™ 5 Linear FET in a PQFN 5x6 mm (SuperSO8) package, offering the industry’s lowest on-state resistance RDS(on) and wide safe operating area (SOA) at 25˚C and 125˚C. The OptiMOS™ Linear FET is a revolutionary approach that solves the trade-off between on-state resistance and linear mode capability. Combined with the low cost, low profile PQFN 5x6 package, ISC025N08NM5LF2 is targeted for high in-rush current, harsh applications, such as hot-swap, e-fuse, and protection applications commonly found in telecom, data server and battery management systems (BMS).

Infineon Technologies ISC025N08NM5LF2 Product Info

16 April 2026 0

Parameters

ID (@25°C) max

198 A

Operating Temperature range

-55 °C to 175 °C

Package

SuperSO8 5x6 FL

Polarity

N

QG (typ @10V)

77 nC

RDS (on) (@10V) max

2.55 mΩ

Special Features

Wide SOA

VDS max

80 V

VGS(th) range

2.3 V to 3.9 V

VGS(th)

3.1 V

Features

  • Wide safe operating area (SOA)
  • Low RDS(on)
  • High max. pulse current
  • High max. continuous current
  • Available in small low profile package

Description

  • Rugged linear mode operation
  • Low conduction losses
  • High in-rush current enabled
  • Fast start-up and shorter down time
  • Industry standard footprint
