1EDI20H12AH
  • 1EDI20H12AH

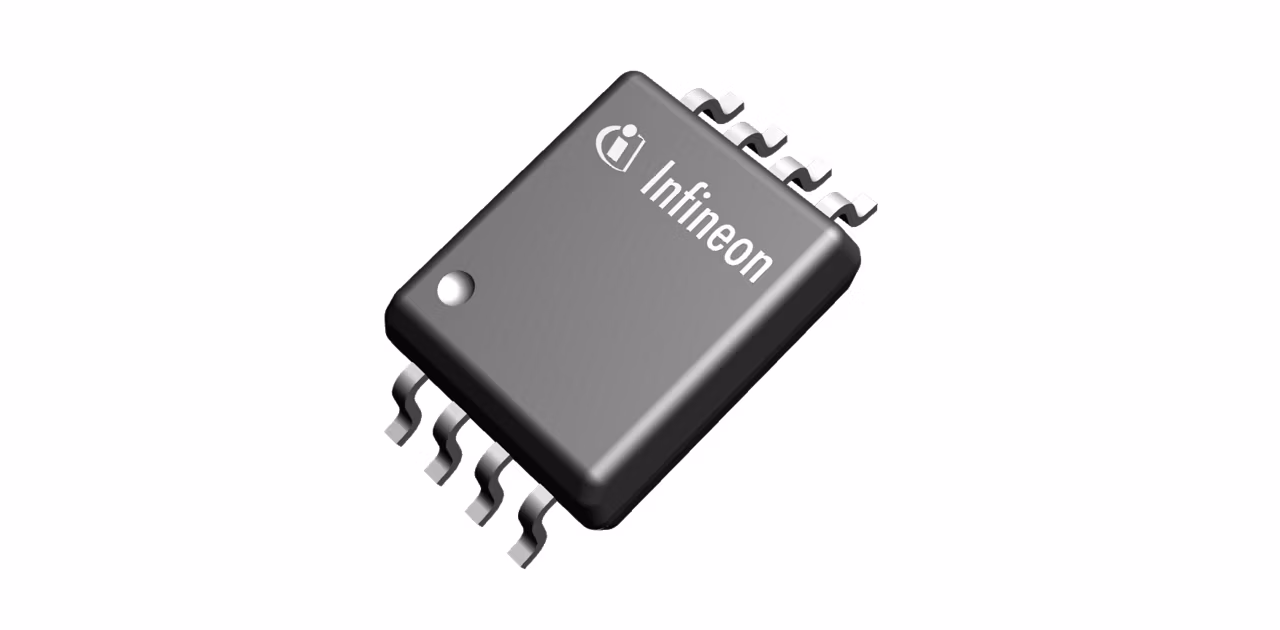

1EDI20H12AH

EiceDRIVER™ 1200 V high side gate driver IC with typical 4.0 A source and 3.5 A sink in a wide-body DSO-8 package with CT technology for IGBT Modules .For higher isolation rating, higher current, shorter propagation delay, check out our newly released X3 Compact family , 1ED3120MU12H . The DSO-8 150mil narrow body version with great price performance ratio is also available: 1EDI20N12AF

Infineon Technologies 1EDI20H12AH Product Info

16 April 2026 0

Parameters

Channels

1

Configuration

High-side

Input Vcc range

3.1 V to 17 V

Isolation Type

Galvanic isolation - Functional

Output Current (Source)

4 A

Output Current (Sink)

3.5 A

PDout

400 mW

Qualification

Industrial

RDSON_H(max)

4.3 Ω

RDSON_H(typ)

2.25 Ω

RDSON_L (max)

5 Ω

RDSON_L(typ)

2.25 Ω

RthJA

165 K/W

Turn Off Propagation Delay

125 ns

Turn On Propagation Delay

120 ns

VBS UVLO (Off)

11.1 V

VBS UVLO (On)

12 V

VCC UVLO (Off)

2.75 V

VCC UVLO (On)

2.85 V

Voltage Class

1200 V

Apps

Induction cooking, EV charging, Industrial automation, Medium voltage (MV) drive, Photovoltaic, Uninterruptible power supplies (UPS)

Features

  • Coreless transformer isolated
  • 2 A rail-to-rail outputs
  • 300 mil wide-body package
  • Package with 8 mm creepage distance
  • Separate source/sink outputs
