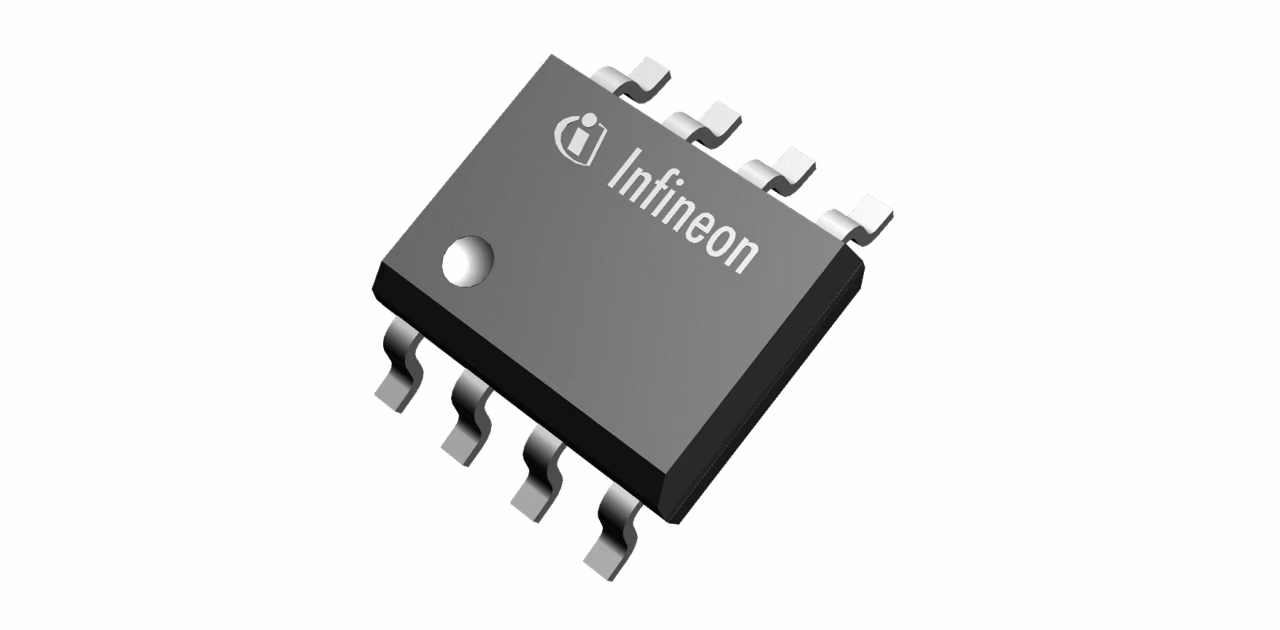

TLE6258-2G
  • TLE6258-2G

TLE6258-2G

The TLE6258-2G is designed for LIN and ISO9141 systems, featuring a stand-by mode to reduce current consumption and wake-up capability. It is a single-wire transceiver with very low current consumption, short circuit protection, and overtemperature protection. This AEC Qualified green product is suitable for Body and Convenience, Safety Applications, Powertrain, and Small Electric Vehicles.

Infineon Technologies TLE6258-2G Product Info

16 April 2026 0

Parameters

Additional Features

ENN, Vcc

Bus Wake-Up Capability

Yes

Features

ENN, Vcc

Planned to be available until at least

n.a

Qualification

Automotive

Quiescent Current

< 40 µA standby mode

Standards

ISO9141, LIN 1.2, 1.3, 2.0, 2.1

Supply Voltage

3.3 V, 5 V

Transmission Rate max

20 kBit/s

Type

LIN

Wake-up Inputs

Bus Wake-up

Features

  • Single-wire transceiver, suitable for LIN protocol
  • Compatible to LIN specification 1.2, 1.3 and 2.0
  • Compatible to ISO 9141 functions
  • Transmission rate up to 20 kBaud
  • Very low current consumption in stand-by mode
  • Wake-up from Bus
  • Short circuit proof to ground and battery
  • Overtemperature protection
  • Green Product (RoHS compliant)
  • AEC Qualified
