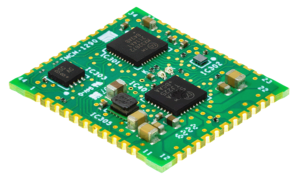

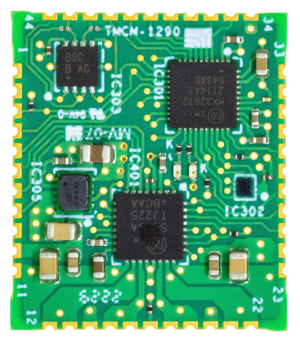

TMCM-1290

RECOMMENDED FOR NEW DESIGNS

Single Axis Controller and Driver Module

Analog Devices TMCM-1290 Product Info

10 February 2026 5

Features

Supply Voltage +4.5 to +36V DC
Up to 2.1A Motor RMS Current
RS485 and SPI
TMCL^™ and Modbus Protocol Stack
Integrated Stepper Motor Driver
Integrated 8-Point Motion Controller
ABN Incremental Encoder Interface

StealthChop2 CoolStep StallGuard2 SpreadCycle Support
Reference Switch Inputs
Analog and Digital IO
+3.3V Supply for Peripherals
Compact Size (24mm x 20.5mm)

Part details & applications

The TMCM-1290 is a single axis controller and driver module for 2-phase stepper motors. It comes either with TMCL or with Modbus firmware installed and communicates through RS485 or SPI. Both allow use of the TMC5240 motion controller and motor driver. StealthChop, SpreadCycle, Stall-Guard2, and CoolStep allow for dynamic current control and quiet, smooth, and efficient motor operation.

Applications

Broad Market
System Integrators
Lab Automation
Textile
Packaging
Life Sciences
Semiconductor Handling
Pumps and Motor Drives
Multi-Axis Applications
