PD-1140
  • PD-1140
  • PD-1140

PD-1140

PRODUCTION

NEMA 17 smart stepper motor 9 to 28V, 22Ncm, 256 µSteps, with USB, CAN and RS485 interface, SensOstep, StallGuard2 and CoolStep

Analog Devices PD-1140 Product Info

10 February 2026 12

Features

Applications
  • Compact and decentralized stepper motor solutions
  • Step loss detection for high reliability operation
Electrical data
  • Supply voltage: +24V DC nominal
  • Motor current: up to 2.8A peak / 2A RMS (programmable)
Integrated motion controller
  • Motion profile calculation in real-time (TMC429 motion controller)
  • On the fly alteration of motor parameters (e.g. position, velocity, acceleration)
  • High performance ARM Cortex-M3™ microcontroller for overall system control and serial communication protocol handling
Integrated bipolar stepper motor driver
  • Up to 256 microsteps per full step
  • High-efficient operation, low power dissipation (MOSFETs with low RDS(ON))
  • Dynamic current control
  • Integrated protection
  • StallGuard2™ feature for stall detection
  • Automatic load dependent motor current adaptation for reduced power consumption and heat dissipation (CoolStep)™
Integrated encoder
  • Integrated sensOstep™ magnetic encoder (max. 1024 increments per rotation) e.g. for step-loss detection under all operating conditions and positioning
Integrated motor
  • Two phase bipolar stepper motor with 2A RMS nom. coil current
  • Holding torque: 0.22Nm, 0.36Nm, 0.44Nm or 0.7Nm
Interfaces
  • RS485 2-wire communication interface
  • CAN 2.0B communication interface
  • USB full speed (12Mbit/s) device interface
  • 4 multi-purpose inputs:
    • 3x general-purpose digital inputs (alternate functions: STOP_L/STO

Part details & applications

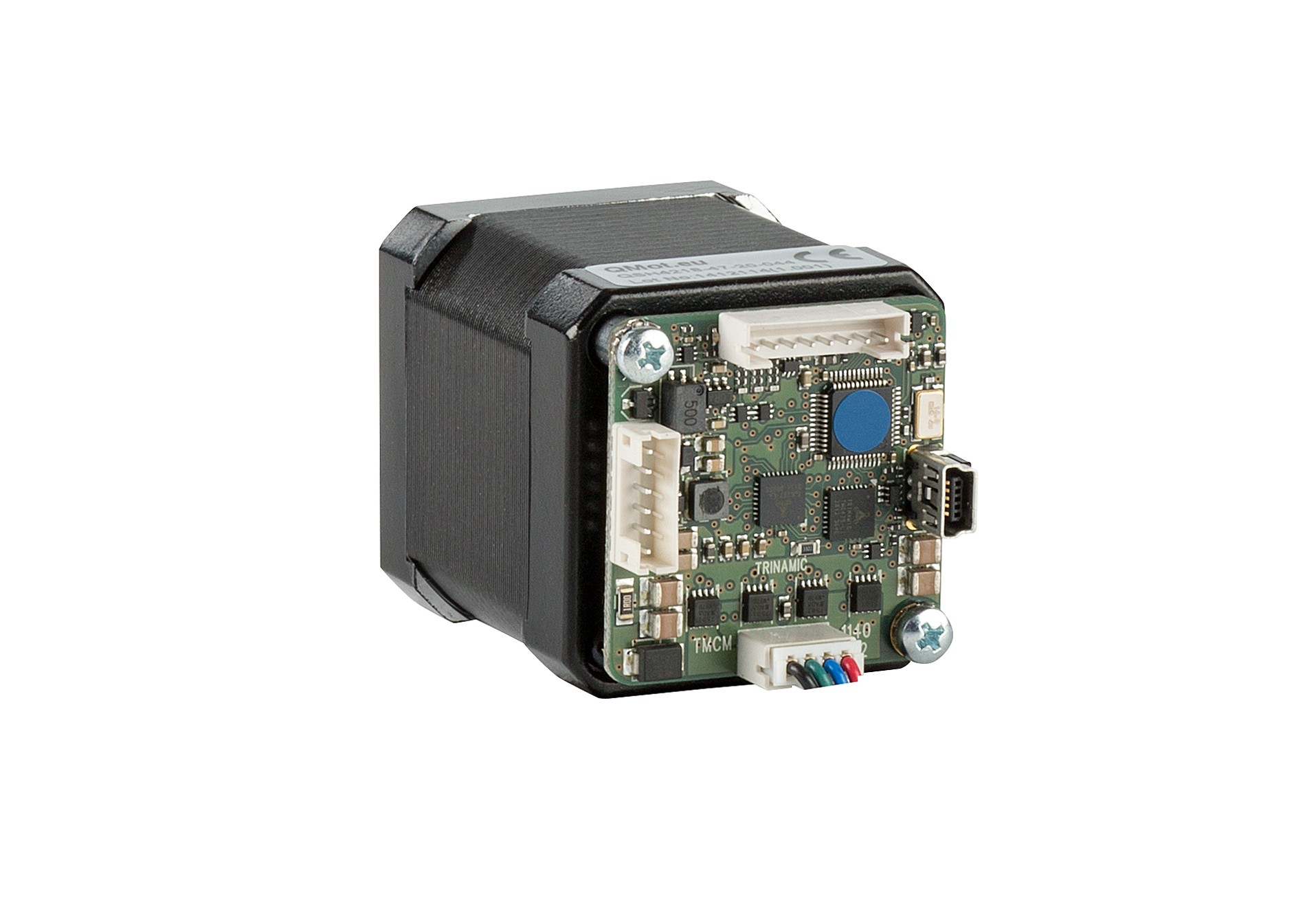

The PANdrive PD-1140 family is a mechatronic solution including a 40mm flange stepper motor, a controller board and a SensOstep™ encoder. It can be controlled via serial interface or operated in standalone mode. Power supply, external encoder, interface and I/Os can be connected with JST connectors.

With the advanced StallGuard2™ the motor load can be detected with high resolution. The outstanding CoolStep™ technology for sensorless load dependent current control allows efficient motor operation.

All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data.
