Analog Devices MAX3188E Product Info

• Small 6-Pin SOT23 Package
• ESD-Protected RS-232 Output
  • ±15kV per Human Body Model
  • ±8kV per IEC 1000-4-2, Contact Discharge
  • ±15kV per IEC 1000-4-2, Air-Gap Discharge
• 150µA Operating Supply Current
• Shutdown Reduces Supply Current to 1µA
• Guaranteed Data Rate
  • 1Mbps (MAX3189E)
  • 250kbps (MAX3188E)
• Three-State RS-232 Transmitter Output
• No External Components

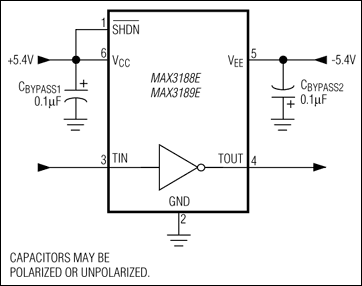

The MAX3188E/MAX3189E single RS-232 transmitters in a SOT23-6 package are for space- and cost-constrained applications requiring minimal RS-232 communications. These devices consume only 150µA of supply current from ±4.5V to ±6V supplies. They feature a shutdown input that reduces current consumption to only 1µA and forces the transmitter output into a high-impedance state. RS-232 data transmission is guaranteed up to 250kbps with the MAX3188E and up to 1Mbps with the MAX3189E.

The MAX3188E/MAX3189E are EIA/TIA-232 transmitters that convert CMOS/TTL logic levels to RS-232-compliant signals. The transmitter output is protected to ±15kV using the IEC 1000-4-2 Air-Gap Discharge method, to ±8kV using the IEC 1000-4-2 Contact Discharge method, and to ±15kV per the Human Body Model, ensuring strict compliance with international standards. The MAX3188E/MAX3189E transmitters have a standard inverting output.

Applications

• Diagnostic Ports
• Digital Still Cameras
• Handheld Equipment
• Network Equipment
• Set-Top Boxes
• Telecommunications
