Analog Devices MAXM17901 Product Info

• Easy to use
• Wide 4.5V to 24V Input
• Adjustable 0.9V to 5V Output
• Fixed 3.3V Output (MAXM17901)
• ±1.5% Feedback Accuracy
• Up to 300mA Output-Current Capability
• Internally Compensated
• All Ceramic Capacitors
• High Efficiency
• Selectable PWM- or PFM-Mode of Operation
• Shutdown Current as Low as 2.2µA (typ)
• Flexible Design
• Internal Soft-Start and Prebias Startup
• Open-Drain Power Good Output (Active-Low RESET Pin)
• Programmable EN/UVLO Threshold
• Robust Operation
• Hiccup Overcurrent Protection
• Overtemperature Protection
• -40°C to +125°C Ambient Operating Temperature/-40°C to +150°C Junction Temperature
• Rugged
  • Complies with CISPR22(EN55022) Class B Conducted and Radiated Emissions
  • Passes Drop, Shock, and Vibration Standards: JESD22-B103, B104, B111

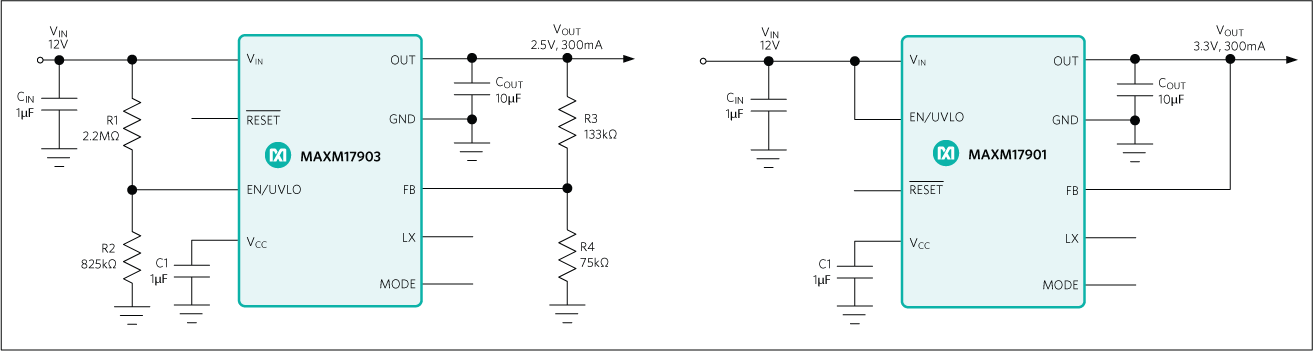

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power supply solutions. The MAXM17901/MAXM17903 are a family of high-efficiency, synchronous step-down DC-DC modules with integrated controller, MOSFETs, compensation components, and inductor that operate over a wide input-voltage range. The modules operate from 4.5V to 24V input and deliver up to 300mA output current. The MAXM17901 is a fixed 3.3V output modules. The MAXM17903 is an adjustable output (0.9V to 5V) module. The modules significantly reduce design complexity, manufacturing risks, and offer a true plug and play power/supply solution, reducing time-to-market.

Both modules employ peak-current-mode control architecture. To reduce input inrush current, the modules offer a fixed 4.1ms soft-start time.

The MAXM17901/03 modules is available in a low profile, compact 10-pin, 2.6mm × 3mm × 1.5mm, uSLIC™ package.

Applications

• 4-20mA Current-Loop Powered Sensors
• Battery-Powered Equipment
• General Purpose Point-of-Load
• HVAC and Building Control
• Industrial Sensors and Encoders
• LDO Replacement
• USB Type-C Powered Loads
