MAX96714

RECOMMENDED FOR NEW DESIGNS

Single GMSL2/GMSL1 to CSI-2 Deserializer

Analog Devices MAX96714 Product Info

10 February 2026 9

Features

Automotive Grade High-Speed Link
- -18dB at 3GHz (6Gbps) Max Insertion Loss
- -19.5dB at 1.5GHz (3Gbps) Max Insertion Loss
- Auto Adapt for Changes in Channel Conditions
- Operates -40°C to +105°C Ambient
Single GMSL Input Can Support up to 8MP Imagers
- 6/3Gbps in GMSL2 Forward Link-Rates
- 3.12Gbps in GMSL1 Forward Link-Rates
- 187.5Mbps/1Mbps (GMSL2/1) Reverse Link-Rates
High-Speed 1x4-lane MIPI Output Port, CSI-2 v1.3
- MIPI D-PHY v1.2 Rated at 2.5Gbps/Lane
- Polarity Flip and Data-Lane Reassignment
- Supports 16 Virtual Channels

Bidirectional Reverse Channel Supports
- Nine Configurable GPIOs
- 1 x I2C/UART Ports, up to 1MHz
- 2 x Pass-Through I²C/UART
Reduces BOM and Space Savings

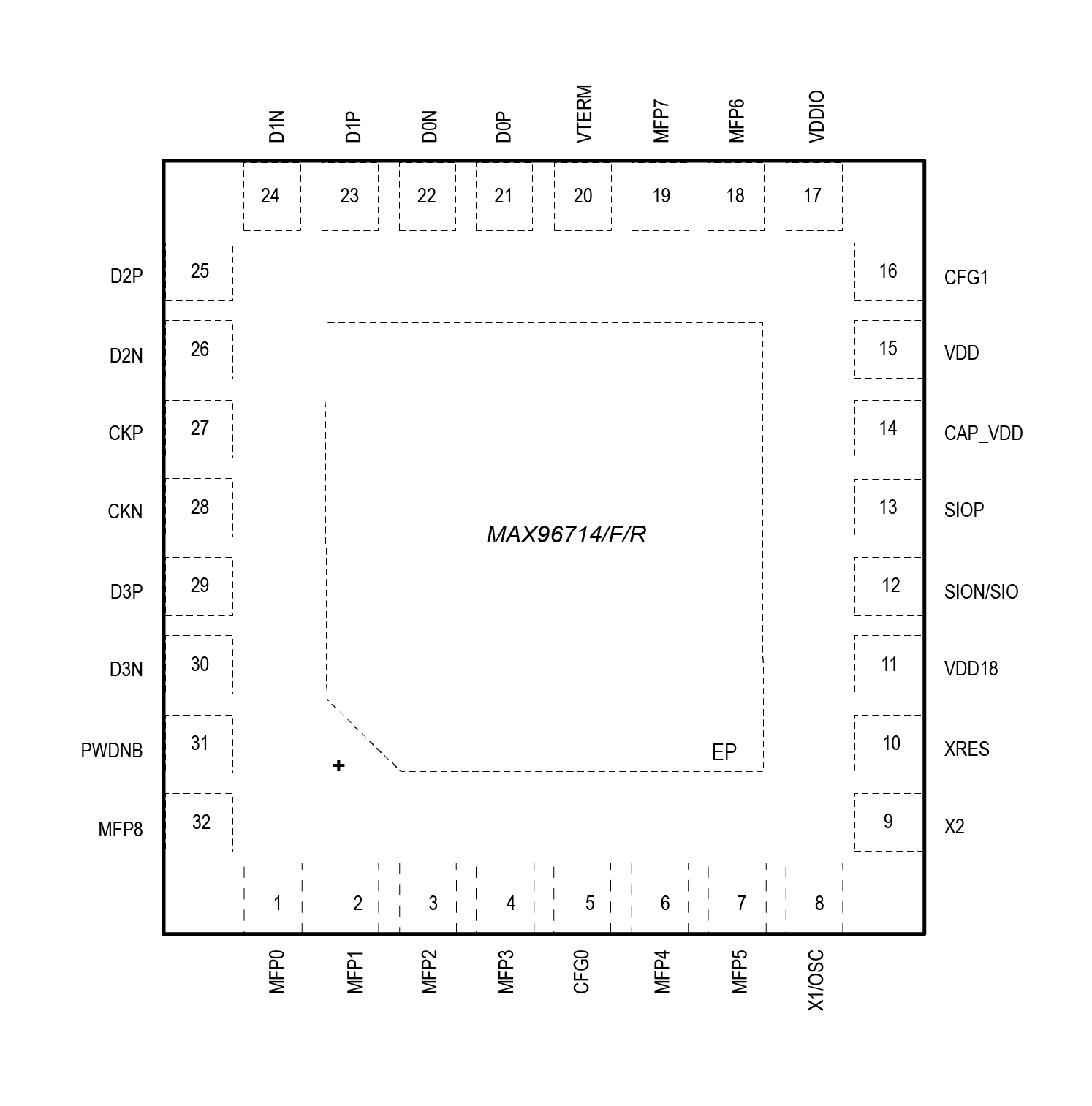

- Tiny 5mm x 5mm TQFN Standard and Side-Wettable
- Industry’s Smallest Power over Coax (PoC)
RoR for Crystal-Free Operation on Serializers
ASIL-B Compliant in GMSL2 Mode (MAX96714/F)
Supports ASIL-B(D) Decomposition (MAX96714/F)
MAX96714: 6Gbps, GMSL2, ASIL-B
MAX96714F: 3Gbps, GMSL2, ASIL-B
MAX96714R: 3Gbps, GMSL2, QM, I²C Only

Part details & applications

The MAX96714/F/R deserializers convert a GMSL^™2/1 input to MIPI CSI-2 output. The devices allow a simultaneously transmit bidirectional control channel while forward video transmissions are in progress. The MAX96714/F/R operate at a fixed rate of 3Gbps or 6Gbps in the forward direction and 187.5Mbps in the reverse direction.

Data can be transmitted over low-cost 50Ω Coax or 100Ω STP cables that meet the GMSL2 channel specifications.

Applications

Advanced Driver Assistance Systems (ADAS)
Forward Vision Camera Systems (FVC)
Rear View Camera (RVC)
Driver-Monitor Systems (DMS)
