MAX86150

LAST TIME BUY

Integrated Photoplethysmogram and Electrocardiogram Bio-Sensor Module For Mobile Health

Analog Devices MAX86150 Product Info

10 February 2026 4

Features

Electrocardiogram (ECG) Optimized for Dry Electrode Operation
Reflective Heart Rate Monitor and Medical-Grade Pulse Oximeter
Miniature 3.3mm x 5.6mm x 1.3mm 22-pin Optical Module

Optical-Grade Glass for Long-Term Optimal and Robust Performance

Ultra-Low Power Operation for Mobile Devices

Ultra-Low Shutdown Current (0.7μA Typical)

High SNR and Robust Ambient Light Cancellation
-40°C to +85°C Operating Temperature Range

Part details & applications

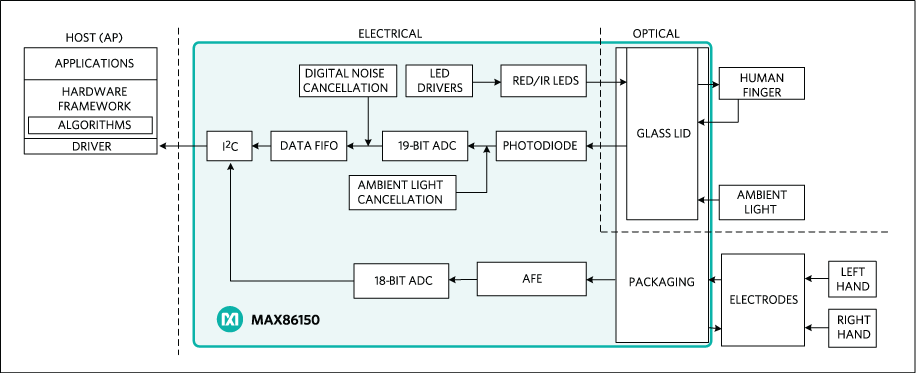

The MAX86150 is an integrated electrocardiogram, pulse oximeter, heart rate monitor sensor module. It includes internal LEDs, photodetector, and low-noise electronics with ambient light rejection. The MAX86150 helps ease design-in to mobile and wearable devices.

The MAX86150 operates on a 1.8V supply voltage with a separate power supply for the internal LEDs. Communication to and from the module is entirely through a standard I²C-compatible interface. The module can be shut down through software with near zero standby current, allowing the power rails to remain powered at all times.

Applications

Fitness Assistant Devices
Smartphones
Tablets
Wearable Devices
