Analog Devices MAX608 Product Info

• 1.8V to 16.5V Input Range
• 85% Efficiency for 30mA to 1.5A Load Currents
• Up to 10W Output Power
• 110µA Max Supply Current
• 5µA Max Shutdown Current
• Preset 5V or Adjustable Output (3V to 16.5V)
• Current-Limited PFM Control Scheme
• Up to 300kHz Switching Frequency
• Evaluation Kit Available

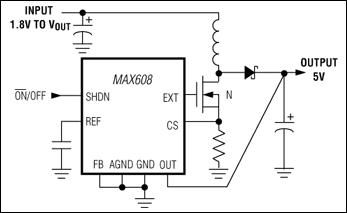

The MAX608 low-voltage step-up controller operates from a 1.8V to 16.5V input voltage range. Pulse-frequency-modulation (PFM) control provides high efficiency at heavy loads, while using only 85µA (typical) when operating with no load. In addition, a logic-controlled shutdown mode reduces supply current to 2µA typical. The output voltage is factory-set at 5V or can be adjusted from 3V to 16.5V with an external resistor divider.

The MAX608 is ideal for two- and three-cell battery-powered systems. An operating frequency of up to 300kHz allows use with small surface-mount components.

The MAX608 operates in "bootstrapped" mode only (with the chip supply, OUT, connected to the DC-DC output). For a 12V output without external resistors, or for nonbootstrapped applications (chip supply connected to input voltage), refer to the pin-compatible MAX1771. The MAX608 is available in 8-pin DIP and SO packages.

Applications

• Battery-Powered Applications
• High-Efficiency DC-DC Converters
• Portable Communicators
• Positive LCD-Bias Generators
