MAX4888B

PRODUCTION

Up to 8.0Gbps Dual Passive Switches Supports Multiple High-Speed Interfaces up to 8.0Gbps While Maintaining Signal Integrity in the Application

Analog Devices MAX4888B Product Info

10 February 2026 7

Features

Single +3.3V Power-Supply Voltage
Supports PCIe Gen I, Gen II, and Gen III Data Rates
Supports Up To and Including 6.0Gbps SAS/SATA Signals
Supports Other High-Speed Interfaces (e.g., XAUI)
Superior Bandwidth Return Loss
Small, 3.5mm x 5.5mm, 28-Pin TQFN Package

Part details & applications

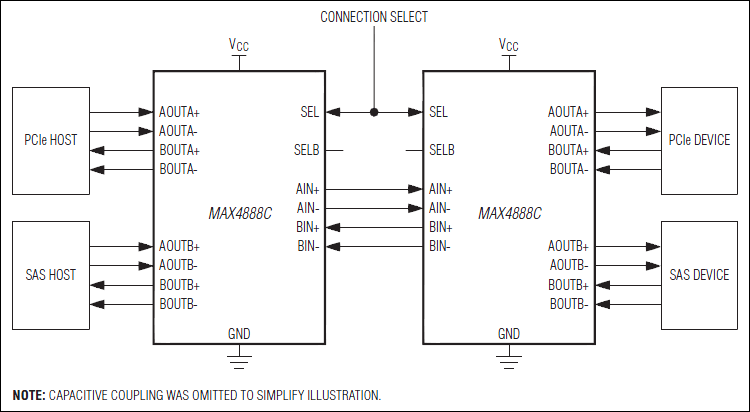

The MAX4888B/MAX4888C dual double-pole/double-throw (2 x DPDT), high-speed passive switches are ideal for switching two half-lanes of PCI Express® (PCIe) data between two possible destinations. These devices feature a dual digital control input to switch signal paths. The MAX4888C is intended for use in systems where both the input and output are capacitively coupled (e.g., SAS, SATA, XAUI, and PCIe) and provides a 10µA (typ) source current and a 60kΩ (typ) internal biasing resistor to GND at the AOUT_ and BOUT_ pins.

The devices are fully specified to operate from a single +3.3V (typ) power supply. Both devices are available in an industry-standard 3.5mm x 5.5mm, 28-pin TQFN package. They operate over the -40°C to +85°C extended temperature range.

Applications

Desktop PCs
Notebook PCs
Servers
