Analog Devices MAX3841 Product Info

• Up to 12.5Gbps Operation
• Less Than 10ps_P-P Deterministic Jitter
• Less Than 0.7ps_RMS Random Jitter
• 1.8V, 2.5V, and 3.3V DC-Coupled CML I/O
• Independent Output Power-Down
• 4mm x 4mm Thin QFN Package
• -40°C to +85°C Operation
• +3.3V Core Supply
• 215mW Power Consumption (Excluding Termination Currents)

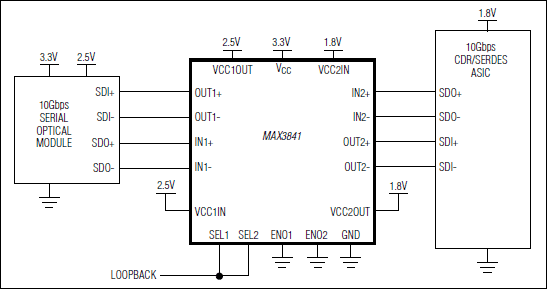

The MAX3841 is a low-power, 12.5Gbps, 2 x 2 crosspoint switch IC for high-speed serial data loopback, redundancy, and switching applications. The MAX3841 current-mode logic (CML) inputs and outputs have isolated V_CC connections to enable DC-coupled interfaces to 1.8V, 2.5V, or 3.3V CML ICs. Fully differential signal paths and Maxim's second-generation SiGe technology provide optimum signal integrity, minimizing jitter, crosstalk, and signal skew. The MAX3841 is ideal for serial OC-192 and 10GbE optical module, line card, switch fabric, and similar applications.

The MAX3841 has 150mV_P-P minimum differential input sensitivity and 500mV_P-P nominal differential output swing. Unused outputs can be powered down individually to conserve power. In addition to functioning as a 2 x 2 switch, the MAX3841 can be configured as a 2:1 multiplexer, 1:2 buffer, or dual 1:1 buffer. The MAX3841 is available in a 4mm x 4mm 24-pin thin QFN package, and consumes only 215mW with both outputs enabled.

Applications

• Clock Fanout
• OC-192, 10GbE Optical Modules
• OC-192, 10GbE Switch/Line Cards
• System Redundancy/Self Test
