Analog Devices MAX5183 Product Info

• 2.7V to 3.3V Single-Supply Operation
• Wide Spurious-Free Dynamic Range: 70dB at f_OUT = 2.2MHz
• Fully Differential Outputs for Each DAC
• ±0.5% FSR Gain Mismatch
• ±0.2° Phase Mismatch
• Low-Current Standby or Full-Shutdown Modes
• Internal 1.2V Low-Noise Bandgap Reference
• Small 28-Pin QSOP Package

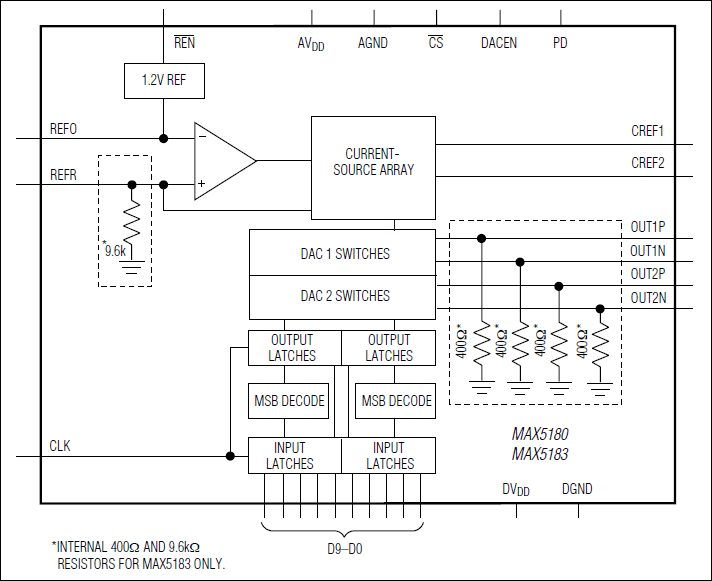

The MAX5180 contains two 10-bit, simultaneous-update, current-output digital-to-analog converters (DACs) designed for superior performance in communications systems requiring analog signal reconstruction with low distortion and low-power operation. The MAX5183 provides equal specifications, with on-chip precision resistors for voltage output operation. The devices are designed for 10pV-s glitch operation to minimize unwanted spurious signal components at the output. An on-board 1.2V bandgap circuit provides a well-regulated, low-noise reference that can be disabled for external reference operation.

The MAX5180/MAX5183 are designed to provide a high level of signal integrity for the least amount of power dissipation. The DACs operate from a single supply of 2.7V to 3.3V. Additionally, these DACs have three modes of operation: normal, low-power standby, and complete shutdown, which provides the lowest possible power dissipation with 1µA (max) shutdown current. A fast wake-up time (0.5µs) from standby mode to full DAC operation conserves power by activating the DACs only when required.

The MAX5180/MAX5183 are packaged in a 28-pin QSOP and are specified for the extended (-40°C to +85°C) temperature range. For lower-resolution, dual 8-bit versions, refer to the MAX5186/MAX5189 data sheet.

Applications

• Arbitrary Waveform Generation (AWG)
• Digital Signal Processing (DSP)
• Imaging
• Signal Reconstruction of I and Q Transmit
• Signals
