AD5555

PRODUCTION

Precision DUAL 16-Bit 14-Bit-DACs in Compact TSSOP Packages

Analog Devices AD5555 Product Info

10 February 2026 5

Features

14-bit resolution
±1 LSB DNL monotonic
±1 LSB INL
2 mA full-scale current ±20%, with V_REF = 10 V
0.5 μs settling time

2Q multiplying reference-input 6.9 MHz BW
Zero or midscale power-up preset
Zero or midscale dynamic reset
3-wire interface
Compact TSSOP-16 package

Part details & applications

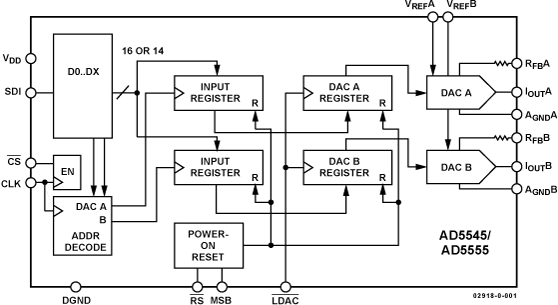

The AD5545/AD5555 are 16-bit/14-bit, current-output, digital- to-analog converters designed to operate from a single 5 V supply with bipolar output up to ±15 V capability.

An external reference is needed to establish the full-scale output-current. An internal feedback resistor (R_FB) enhances the resistance and temperature tracking when combined with an external op amp to complete the I-to-V conversion.

A serial data interface offers high speed, 3-wire microcontroller compatible inputs using serial data in (SDI), clock (CLK), and chip select (CS). Additional LDAC function allows simultaneous update operation. The internal reset logic allows power-on preset and dynamic reset at either zero or midscale, depending on the state of the MSB pin.

The AD5545/AD5555 are packaged in the compact TSSOP-16 package and can be operated from –40°C to +85°C.

APPLICATIONS

Automatic test equipment
Instrumentation
Digitally controlled calibration
Industrial control PLCs
Programmable attenuator
