Analog Devices MAX1718 Product Info

• Quick-PWM Architecture
• ±1% V_OUT Accuracy Over Line and Load
• 5-Bit On-Board DAC with Input Muxes
• Precision-Adjustable V_OUT Slew Control
• 0.6V to 1.75V Output Adjust Range
• Precision Offset Control
• Supports Voltage-Positioned Applications
• 2V to 28V Battery Input Range
• Requires a Separate 5V Bias Supply
• 200/300/550/1000kHz Switching Frequency
• Over/Undervoltage Protection
• Drives Large Synchronous-Rectifier FETs
• 700µA (typ) I_CC Supply Current
• 2µA (typ) Shutdown Supply Current
• 2V ±1% Reference Output
• VGATE Blanking During Transition
• Small 28-Pin QSOP Package

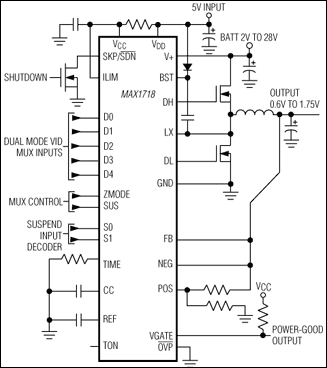

The MAX1718 step-down controller is intended for core CPU DC-DC converters in notebook computers. It features a dynamically adjustable output, ultra-fast transient response, high DC accuracy, and high efficiency needed for leading-edge CPU core power supplies. Maxim's proprietary Quick-PWM™ quick-response, constant-on-time PWM control scheme handles wide input/output voltage ratios with ease and provides 100ns "instant-on" response to load transients while maintaining a relatively constant switching frequency.

The output voltage can be dynamically adjusted through the 5-bit digital-to-analog converter (DAC) over a 0.6V to 1.75V range. The MAX1718 has an internal multiplexer that accepts three unique 5-bit VID DAC codes corresponding to Performance, Battery, and Suspend modes. Precision slew-rate control provides "just-in-time" arrival at the new DAC setting, minimizing surge currents to and from the battery.

The internal DAC of the MAX1718B is synchronized to the slew-rate clock for improved operation under aggressive power management of newer chipsets and operating systems that can make incomplete mode transitions.

A pair of complementary offset control inputs allows easy compensation for IR drops in PC board traces or creation of a voltage-positioned power supply. Voltage-positioning modifies the load-transient response to reduce output capacitor requirements and total system power dissipation.

Single-stage buck conversion allows these devices to directly step down high-voltage batteries for the highest possible efficiency. Alternatively, two-stage conversion (stepping down the 5V system supply instead of the battery) at a higher switching frequency allows the minimum possible physical size.

The MAX1718 is available in a 28-pin QSOP package.

Applications

• 2-Cell to 4-Cell Li+ Batte
