Analog Devices LTC2850 Product Info

• 3.3V Supply Voltage

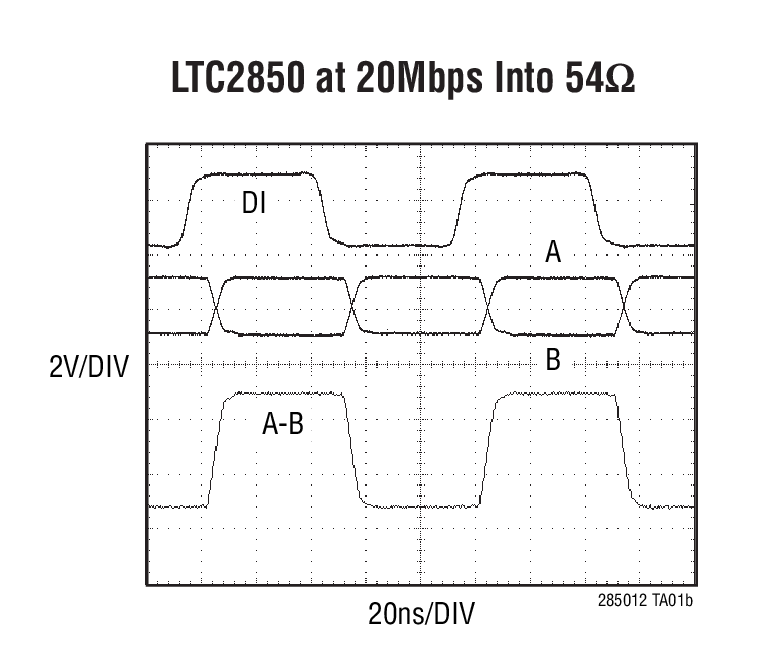

• 20Mbps Maximum Data Rate
• No Damage or Latchup Up to ±15kV HBM
• High Input Impedance Supports 256 Nodes (C, I‑Grade)
• Operation Up to 125°C (H-Grade)
• Guaranteed Failsafe Receiver Operation Over the Entire Common Mode Range
• Current Limited Drivers and Thermal Shutdown
• Delayed Micropower Shutdown: 5μA Maximum
  (C, I-Grade)
• Power Up/Down Glitch-Free Driver Outputs
• Low Operating Current: 370μA Typical in Receive Mode
• Compatible with TIA/EIA-485-A Specifications

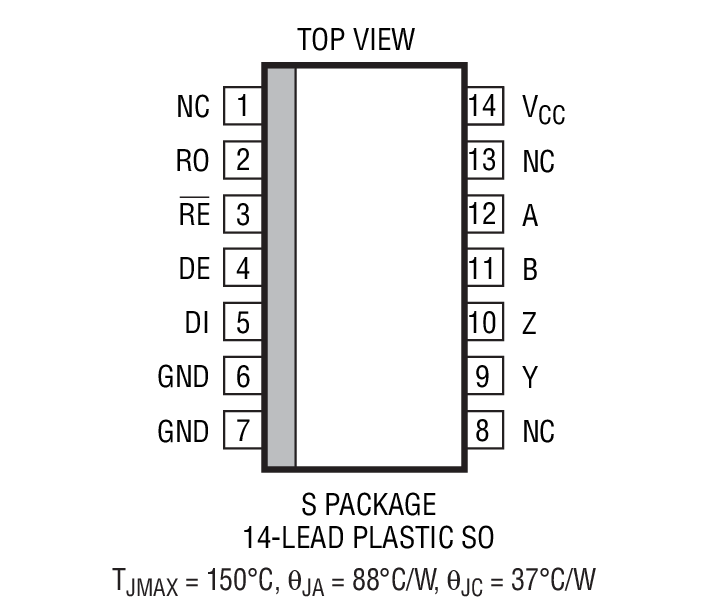

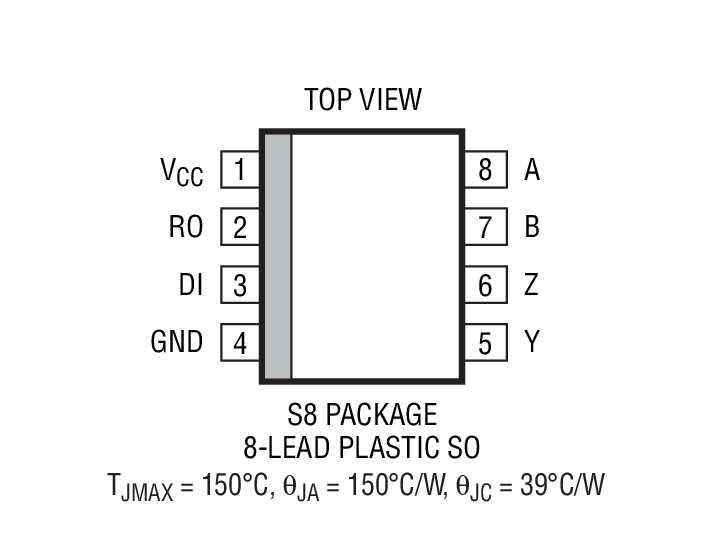

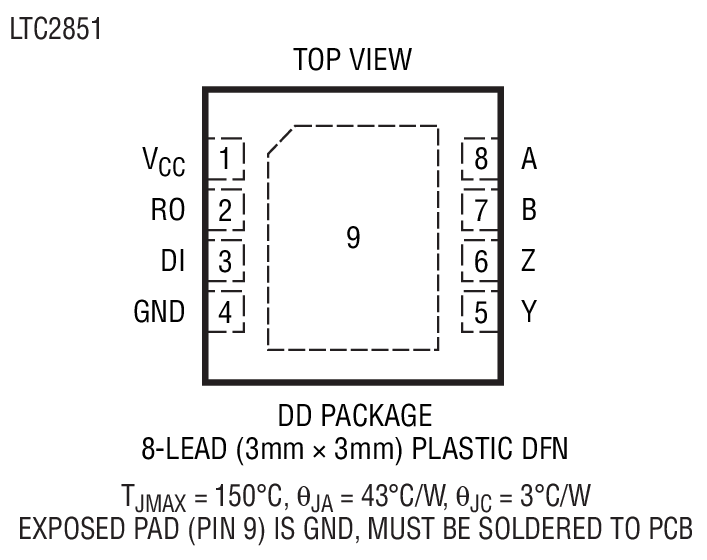

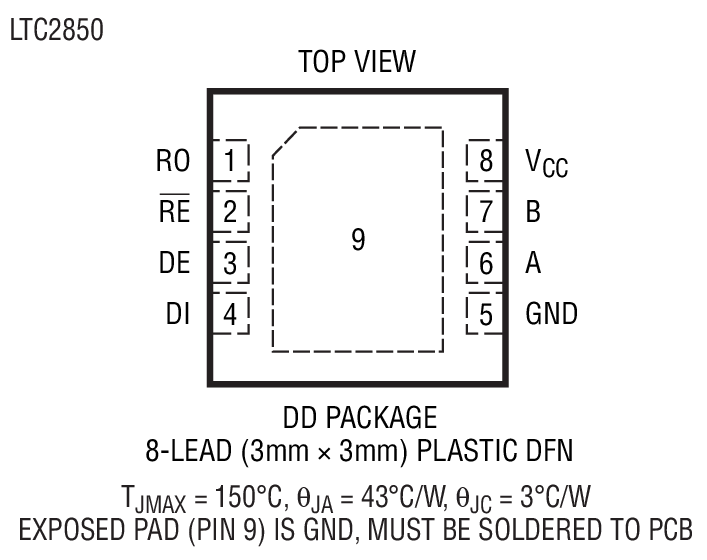

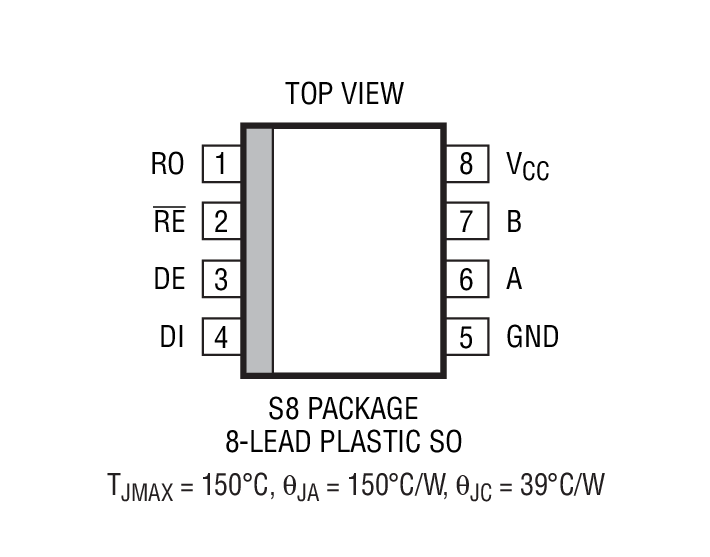

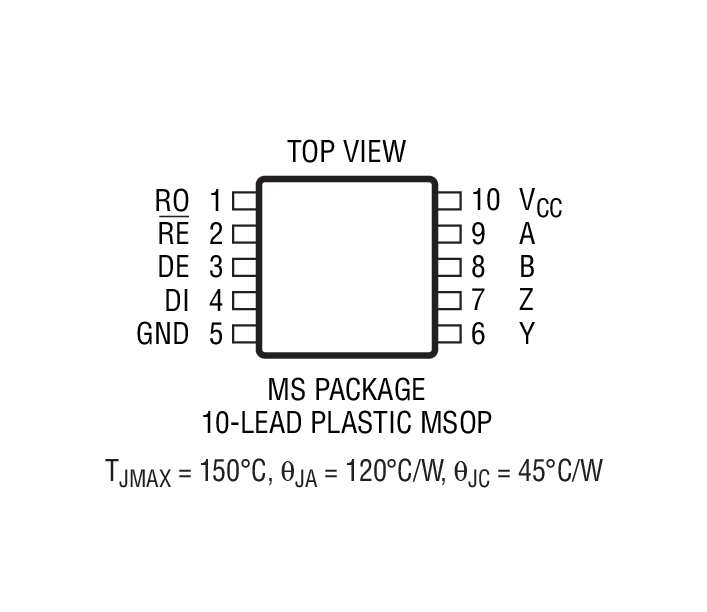

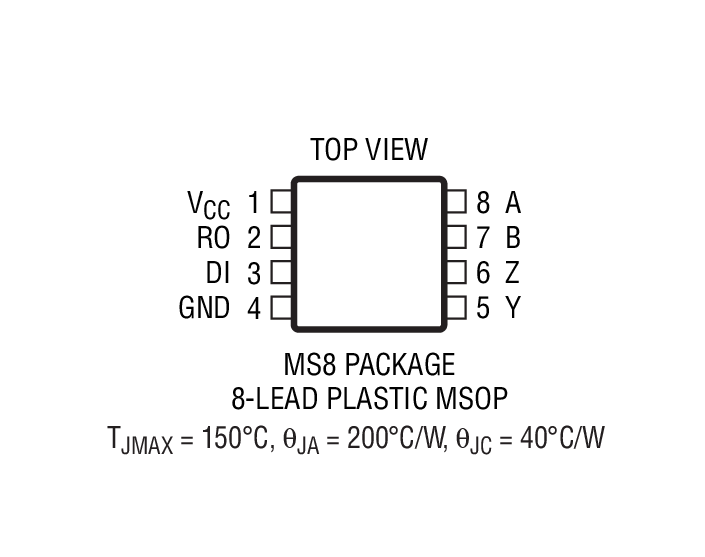

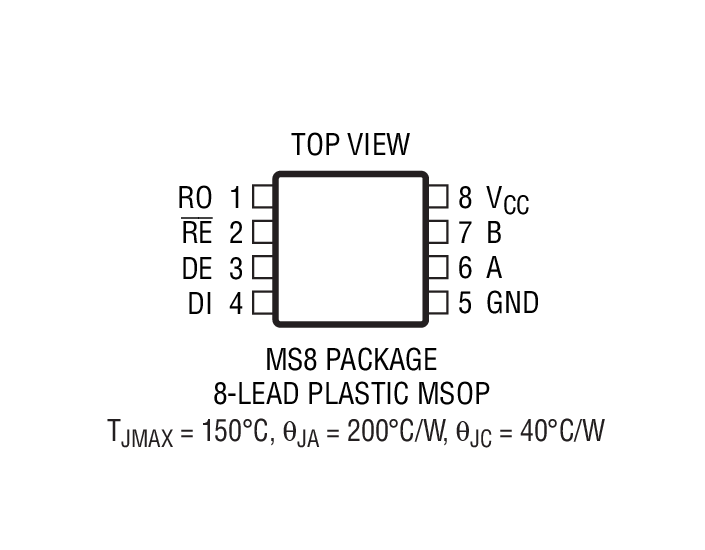

• Available in 8-Pin and 10-Pin 3mm × 3mm DFN, 8-Pin and 10-Pin MSOP, and 8-Pin and 14-Pin SO Packages

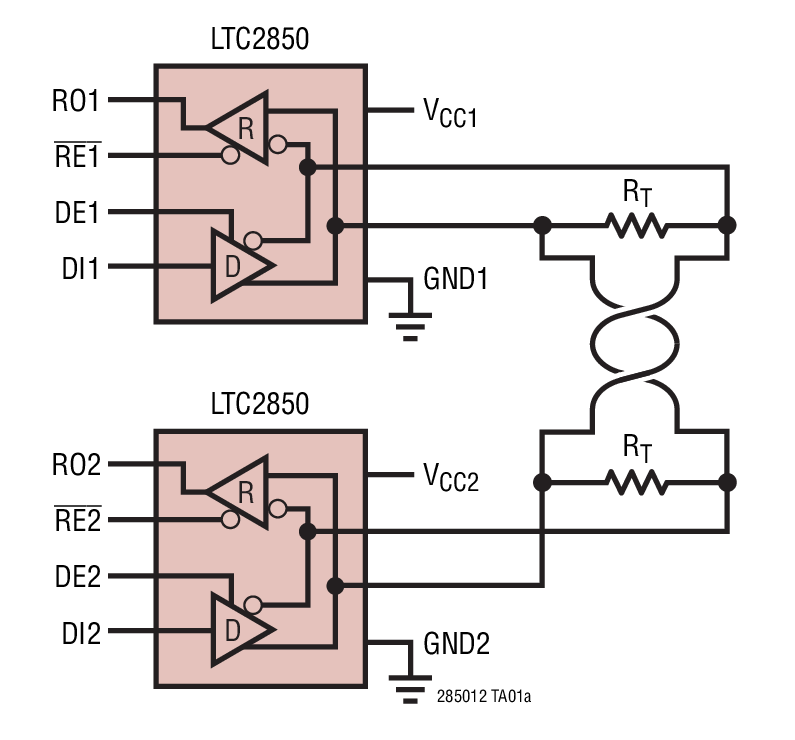

The LTC2850, LTC2851 and LTC2852 are low power, 20Mbps RS485/RS422 transceivers operating on 3.3V supplies. The receiver has a one-eighth unit load supporting up to 256 nodes per bus (C, I-grade), and a failsafe feature that guarantees a high output state under conditions of floating or shorted inputs.

The driver maintains a high output impedance over the entire common mode range when disabled or when the supply is removed. Excessive power dissipation caused by bus contention or a fault is prevented by current limiting all outputs and by thermal shutdown.

Enhanced ESD protection allows these parts to withstand up to ±15kV (human body model) on the transceiver interface pins without latchup or damage.

Applications

• Low Power RS485/RS422 Transceiver
• Level Translator
• Backplane Transceiver
