Analog Devices MAX1165 Product Info

• 16-Bit Wide (MAX1165) and Byte Wide (MAX1166) Parallel Interface
• High Speed: 165ksps Sample Rate
• Accurate: ±2.5 LSB INL, 16 Bit No Missing Codes
• 4.096V, 25ppm/°C Internal Reference
• External Reference Range: +3.8V to +5.25V
• Single +4.75V to +5.25V Analog Supply Voltage
• +2.7V to +5.25V Digital Supply Voltage
• Low Supply Current
  • 1.8mA (External Reference)
  • 2.7mA (Internal Reference)
  • 0.1µA (10ksps, External Reference)
• Small Footprint
  • 28-Pin TSSOP Package (16-Bit Wide)
  • 20-Pin TSSOP Package (Byte Wide)

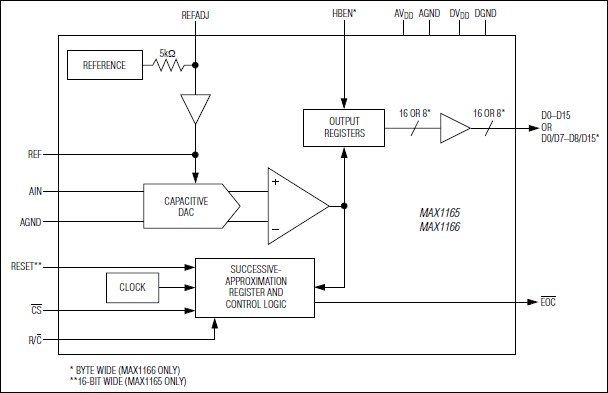

The MAX1165/MAX1166 16-bit, low-power, successive-approximation analog-to-digital converters (ADCs) feature automatic power-down, factory-trimmed internal clock, and a 16-bit wide (MAX1165) or byte wide (MAX1166) parallel interface. The devices operate from a single +4.75V to +5.25V analog supply and a +2.7V to +5.25V digital supply.

The MAX1165/MAX1166 use an internal 4.096V reference or an external reference. The MAX1165/MAX1166 consume only 1.8mA at a sampling rate of 165ksps with external reference and 2.7mA with internal reference. AutoShutdown™ reduces supply current to 0.1mA at 10ksps.

The MAX1165/MAX1166 are ideal for high-performance, battery-powered, data-acquisition applications. Excellent dynamic performance and low power consumption in a small package make the MAX1165/MAX1166 ideal for circuits with demanding power consumption and space requirements.

The 16-bit wide MAX1165 is available in a 28-pin TSSOP package and the byte wide MAX1166 is available in a 20-pin TSSOP package. Both devices are available in either the 0°C to +70°C commercial, or the -40°C to +85°C extended temperature range.

Applications

• Accelerometer Measurements
• Cable/Harness Tester
• Data Acquisition
• Digital Signal Processing (DSP)
• I/O Boards
• Industrial Process Controls
• Temperature Sensing and Monitoring
