Analog Devices LTM8048 Product Info

• Complete Switch Mode Power Supply
• 725VDC Isolation
• Wide Input Voltage Range: 3.1V to 32V

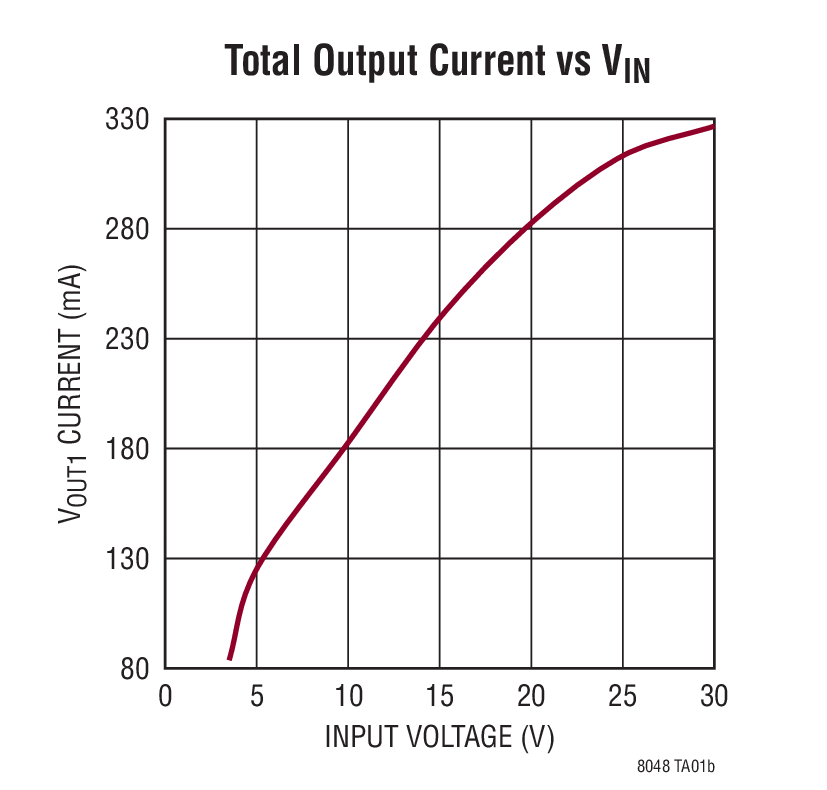

• V_OUT1 Output:
  • Up to 440mA (V_OUT1 = 2.5V, 24V_IN)
  • 2.5V to 13V Output Range
• V_OUT2 Low Noise Linear Post Regulator:
  • Up to 300mA
  • 1.2V to 12V Output Range
• Current Mode Control
• Programmable Soft-Start
• User Configurable Undervoltage Lockout
• SnPb or RoHS Compliant Finish

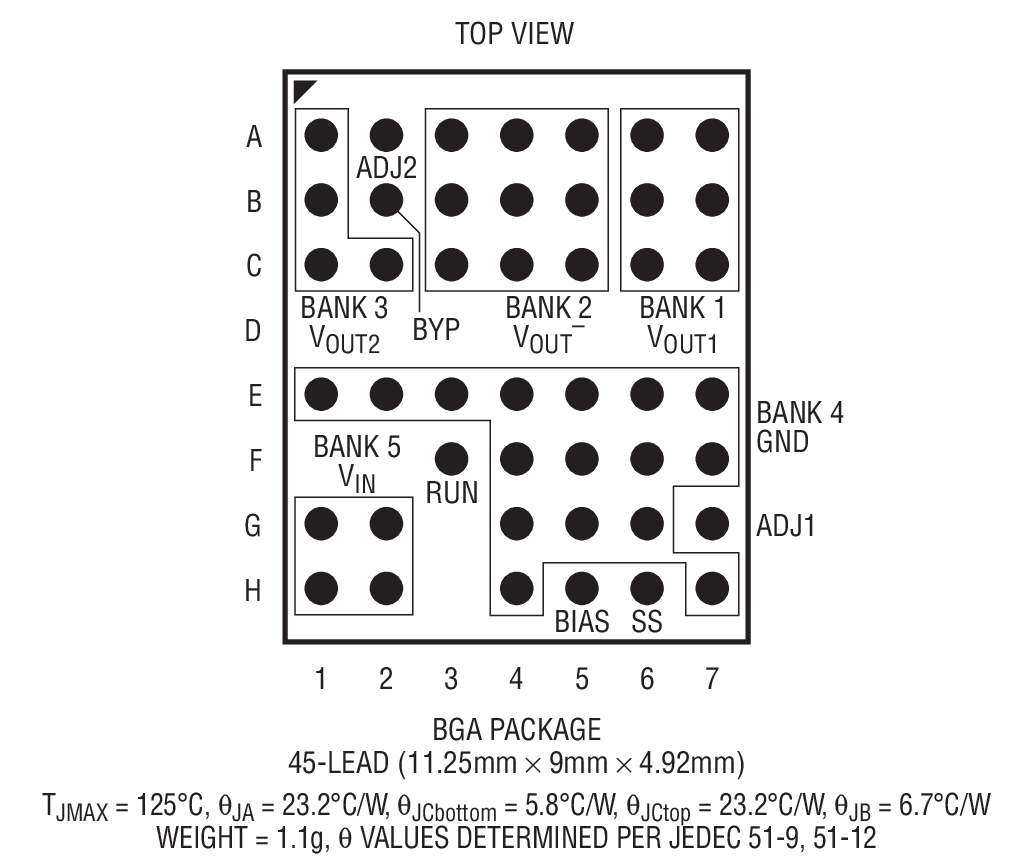

• Low Profile (11.25mm × 9mm × 4.92mm) Surface Mount BGA Package

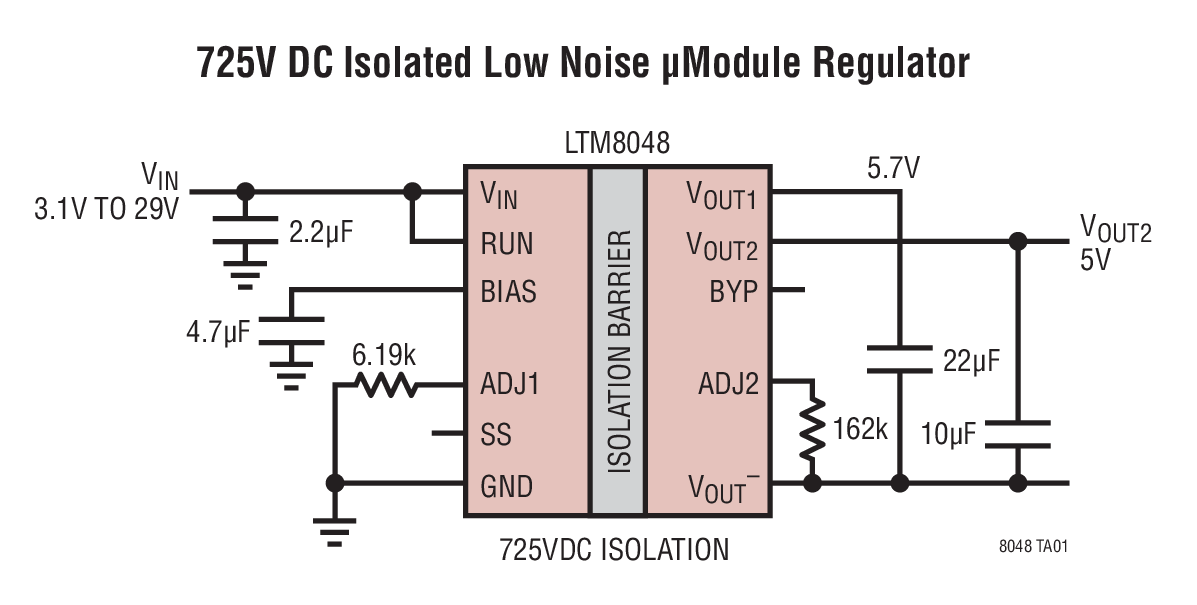

The LTM8048 is an isolated flyback μModule (power module) DC/DC converter with LDO post regulator. The LTM8048 has an isolation rating of 725VDC. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3.1V to 32V, the LTM8048 supports an output voltage range of 2.5V to 13V, set by a single resistor. There is also a linear post regulator whose output voltage is adjustable from 1.2V to 12V as set by a single resistor. Only output, input, and bypass capacitors are needed to finish the design. Other components may be used to control the soft-start control and biasing.

The LTM8048 is packaged in a thermally enhanced, compact (11.25mm × 9mm × 4.92mm) over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8048 is available with SnPb (BGA) or RoHS compliant terminal finish.

Applications

• Industrial Sensors
• Industrial Switches
• Ground Loop Mitigation
