Analog Devices LTM8046 Product Info

• 2kVAC Isolated μModule Converter (Tested to 3kVDC)
• UL 60950 Recognized File E464570
• Wide Input Voltage Range: 3.1V to 31V
• 5V at 550mA from 24V_IN
• 1.8V to 12V Output Voltage
• Current Mode Control
• Programmable Soft-Start
• User Configurable Undervoltage Lockout
• SnPb or RoHS Compliant Finish
• 9mm × 15mm × 4.92mm BGA Package

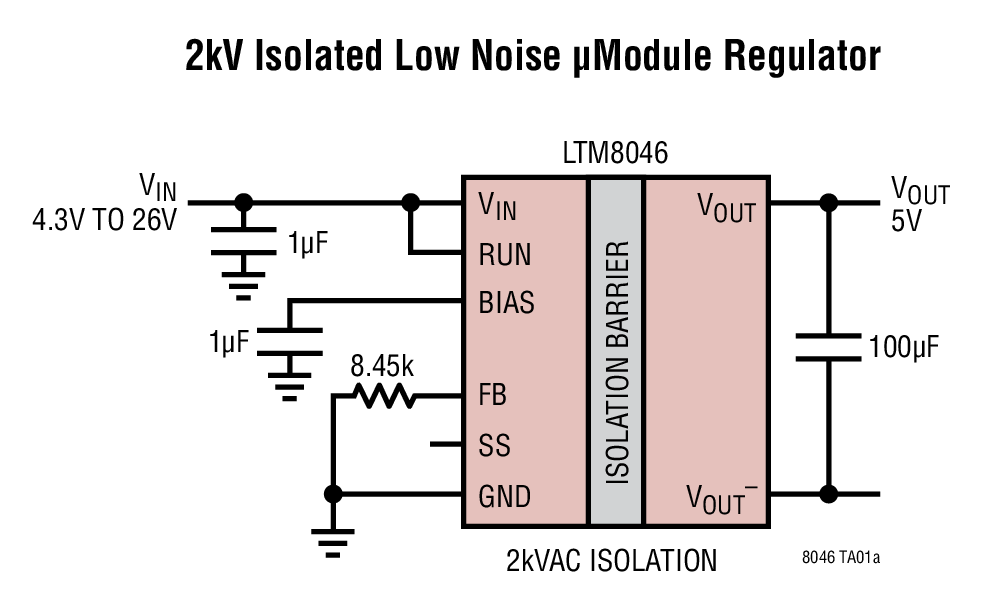

The LTM8046 is an isolated flyback DC/DC μModule^® (power module) converter. The LTM8046 has an isolation rating of 2kVAC. Included in the package are the switching controller, power switches, transformer, and all support components. Operating over an input voltage range of 3.1V to 31V, the LTM8046 supports an output voltage range of 1.8V to 12V, set by one resistor. Only output, input, and bias capacitors are needed to finish the design. An optional capacitor can be used to set the soft-start period.

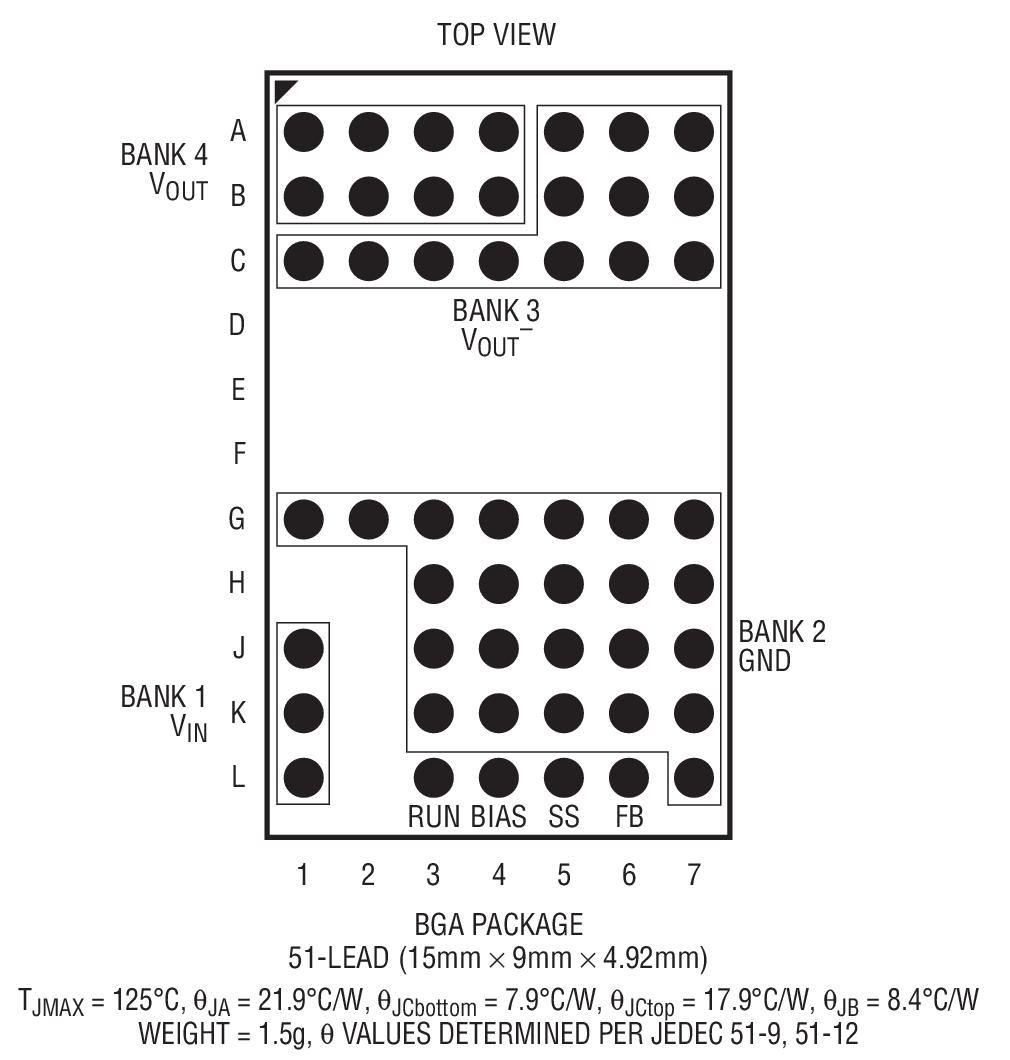

The LTM8046 is packaged in a 9mm × 15mm × 4.92mm over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8046 is available with SnPb (BGA) or RoHS compliant terminal finish.

Applications

• Industrial Sensors
• Industrial Switches
• Ground Loop Mitigation
