ADXL319

RECOMMENDED FOR NEW DESIGNS

Low Noise, Low Power, Wide Bandwidth, 3-Axis MEMS Accelerometer

Analog Devices ADXL319 Product Info

10 February 2026 5

Features

Ultralow noise density: 44μg/√Hz (XY) and 55μg/√Hz (Z)
Low power consumption: 520μA
Wide bandwidth: 8kHz
- Relative flatness with digital correction (<7.6kHz): 0.5dB
- Relative flatness without digital correction (<5kHz): 3.5dB
Low latency
- Group delay <85μs for I²S/TDM
- Group delay <25μs for PDM
Digital features
- 16-bit ADC
- Multiprotocol serial interfaces: SPI or I²C
- Multiprotocol audio data output: I²S, TDM, and PDM
- Programmable LPF and HPF
- Data synchronous or asynchronous sampling
- Output FIFO: 320 word

Built-in features for system-level power savings
- Configurable interrupt modes
Integrated temperature sensor
Voltage range options
- V_S with internal regulators: 2.25V to 3.6V (or V_1P8 at 1.8V)
- V_DDIO: 1.14V to 3.6V (1.62V to 3.6V for full temperature range)
Electromechanical self test
10,000g mechanical shock
RoHS compliant
Operating temperature range: −40°C to +125°C

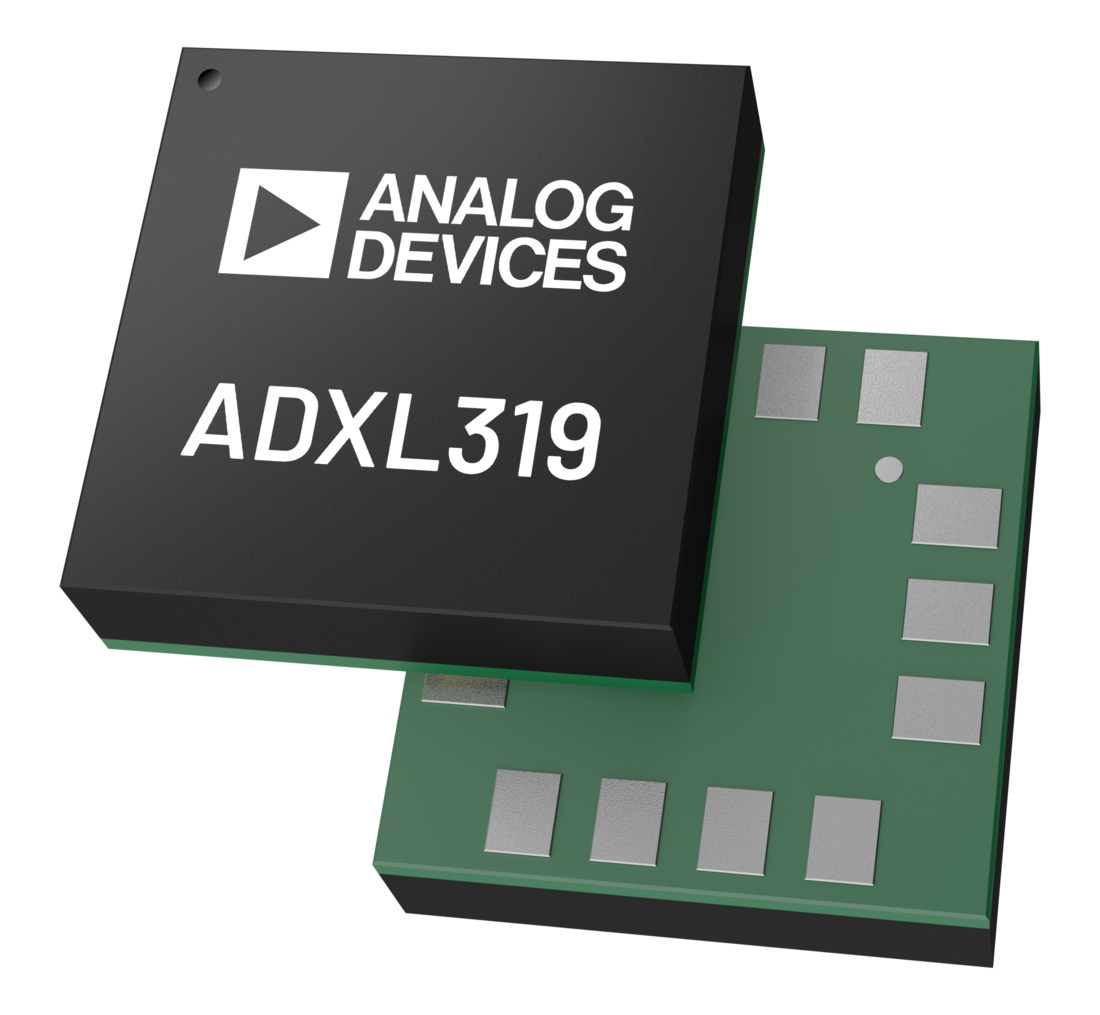

14-terminal, 2.9mm × 2.8mm × 0.87mm, LGA package
AEC-Q100 qualified for automotive applications

Part details & applications

The ADXL319 is a low noise density, low power, 3-axis accelerometer with selectable measurement ranges. The ADXL319 supports ±15g, ±30g, and ±60g ranges.

The ADXL319 offers industry leading noise, enabling precision applications with minimal calibration. The low noise and low power of the ADXL319 enables accurate measurements of audio signals even in high vibration environments.

The ADXL319 multifunction pin names may be referenced only by their relevant function for either the serial peripheral interface (SPI) or inter-IC (I²C) interface, or these pin names can be referenced by their audio function (pulse density modulation (PDM), inter-IC sound (I²S), or time division multiplexing (TDM)).

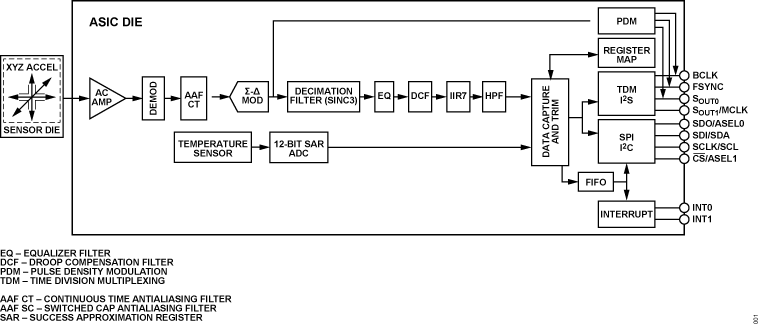

In addition to its low power consumption, the ADXL319 has many features to enable true system level performance. These features include a built-in micropower temperature sensor, interrupts, and first in, first out (FIFO). In addition, the ADXL319 has provisions for external control of the sampling time and/or an external clock.

The ADXL319 operates on a wide, 2.25V to 3.6V supply range (or 1.8V supply) and can interface, if necessary, to a host operating on a separate supply voltage. The ADXL319 is available in a 14-terminal, 2.9mm × 2.8mm × 0.87mm, LGA package, and it is specified to operate over the full Grade 1 automotive temperature range.

Automotive road noise cancellation (RNC)
Condition-based monitoring
Robotics
