ADIS16006

PRODUCTION

Dual-Axis ±5 g Accelerometer with SPI Interface

Analog Devices ADIS16006 Product Info

10 February 2026 3

Features

Dual-axis accelerometer
SPI digital output interface
Internal temperature sensor
Highly integrated; minimal external components
Bandwidth externally selectable
1.9 mg resolution at 60 Hz

Externally controlled electrostatic self-test
3.0 V to 5.25 V single-supply operation
Low power: <2mA
3500 g shock survival
7.2 mm × 7.2 mm × 3.6 mm package

Part details & applications

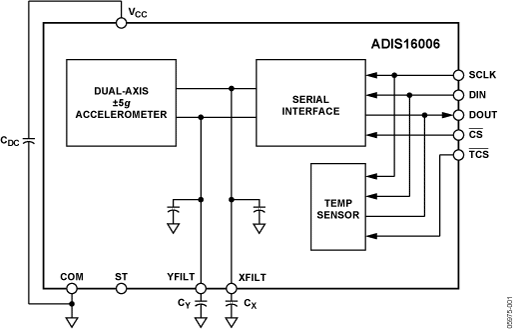

The ADIS16006 is a low cost, low power, complete dual-axis accelerometer with an integrated serial peripheral interface (SPI). An integrated temperature sensor is also available on the SPI interface. The ADIS16006 measures acceleration with a full-scale range of ±5g (minimum). The ADIS16006 can measure both dynamic acceleration (vibration) and static acceleration (gravity).

The typical noise floor is 200 µg/√Hz, allowing signals below 1.9 mg (60 Hz bandwidth) to be resolved.

The bandwidth of the accelerometer is set with optional capacitors, C_X and C_Y, at the XFILT pin and the YFILT pin. Digital output data for both axes is available via the serial interface.

An externally driven self-test pin (ST) allows the user to verify the accelerometer functionality.

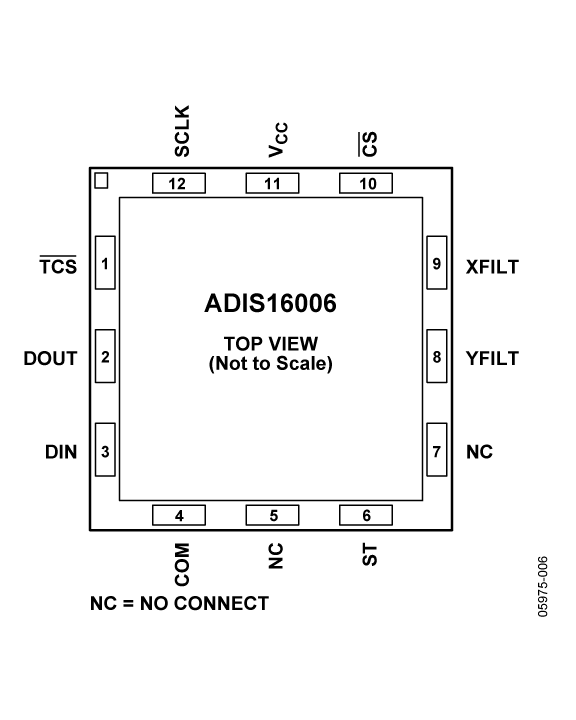

The ADIS16006 is available in a 7.2 mm × 7.2 mm × 3.7 mm, 12-terminal LGA package.

APPLICATIONS

Industrial vibration/motion sensing
Platform stabilization
Dual-axis tilt sensing
Tracking, recording, analysis devices
Alarms and security devices
