ADXL206

RECOMMENDED FOR NEW DESIGNS

Precision, ±5 g, Dual-Axis, High Temperature iMEMS Accelerometer

Analog Devices ADXL206 Product Info

10 February 2026 4

Features

High performance, dual-axis accelerometer on a single IC
−40°C to +175°C ambient temperature range
Long life: guaranteed 1000 hours at T_A = 175°C
13 mm × 8 mm × 2 mm side-brazed ceramic dual in-line package
1 mg resolution at 60 Hz
Low power: 700 μA at V_S = 5 V (typical)

High zero g bias repeatability
High sensitivity accuracy
Bandwidth adjustment with a single capacitor
Single-supply operation
RoHS-compliant
Compatible with Sn/Pb and Pb-free solder processes

Part details & applications

The ADXL206 is a precision, low power, complete dual-axis iMEMS^® accelerometer for use in high temperature environments.

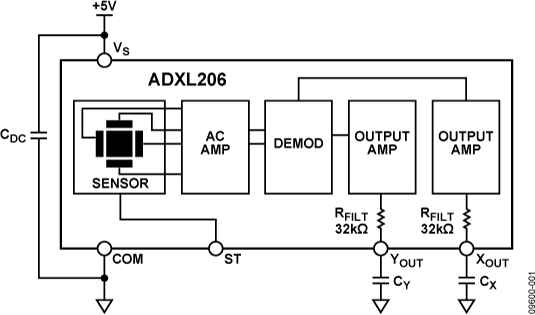

The accelerometer integrates the sensor with signal conditioned voltage outputs on a single, monolithic IC. The ADXL206 measures acceleration with a full-scale range of ±5 g. The ADXL206 can measure both dynamic acceleration (for example, vibration) and static acceleration (for example, gravity).

The typical noise floor is 110 μg/√Hz, allowing signals below 1 mg (0.06° of inclination) to be resolved in tilt sensing applications using narrow bandwidths (<60 Hz).

The user selects the bandwidth of the accelerometer using Capacitors C_X and C_Y at the X_OUT and Y_OUT pins, respectively. Bandwidths of 0.5 Hz to 2.5 kHz can be selected to suit the application.

The ADXL206 is available in a 13 mm × 8 mm × 2 mm, 8-lead, side-brazed ceramic dual in-line package (SBDIP).

APPLICATIONS

Geological exploration tilt and vibration measurement
Extreme high temperature industrial products
