LTC7880

RECOMMENDED FOR NEW DESIGNS

60V Dual Output Step-Up Controller with Digital Power System Management

Analog Devices LTC7880 Product Info

10 February 2026 6

Features

PMBus/I²C Compliant Serial Interface
- Telemetry Read-Back Includes Input and Output Voltage and Current, Temperature and Faults
- Programmable Voltage, Current Limit, Digital Soft-Start/Stop, Sequencing, Margining, OV/UV/OC, Frequency, and Control Loop Compensation
Output Error Less Than ±0.5% Over Temperature
Integrated 16-Bit ADC and 12-Bit DAC
Internal EEPROM with ECC and Fault Logging
Integrated N-Channel MOSFET Gate Drivers

Power Conversion

Wide Input Voltage Range: 5V to 40V
Operates Down to 2.5V After Start-Up
V_OUT0, V_OUT1 Range: Up to 60V
Analog Current Mode Control
Accurate PolyPhase^® Current Sharing for Up to 6 Phases (50kHz to 500kHz)

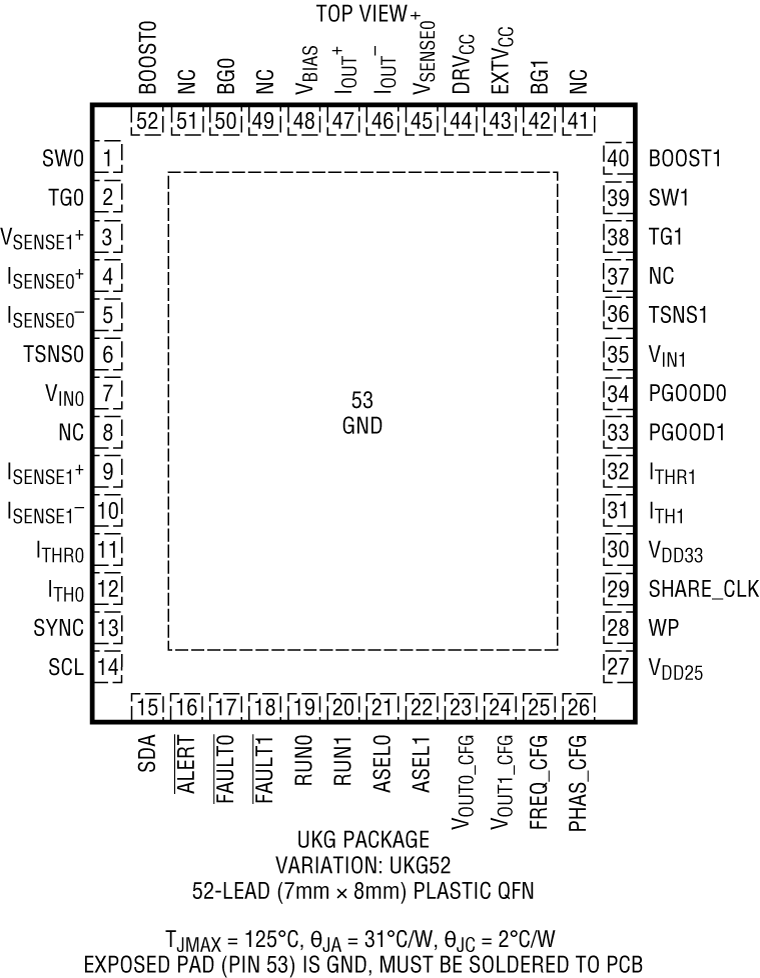

Available in a 52-Lead (7mm × 8mm) QFN Package

Part details & applications

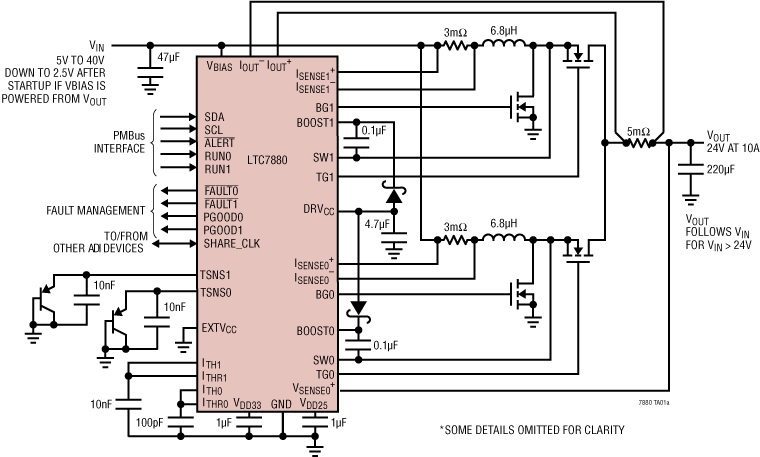

The LTC7880 is a dual PolyPhase^® DC/DC synchronous step-up switching regulator controller with I²C-based PMBus compliant serial interface. This controller employs a constant-frequency, current-mode architecture, with high voltage input and output capability along with programmable loop compensation. The LTC7880 is supported by the LTpowerPlay™ software development tool with graphical user interface (GUI).

Switching frequency, output voltage, and device address can be programmed both by digital interface as well as external configuration resistors. Parameters can be set via the digital interface or stored in EEPROM. The gate drive for the LTC7880 can be programmed from 6.3V to 9V to maximize efficiency. Both outputs have an independent power good indicator and FAULT function.

The LTC7880 can be configured for discontinuous (pulse-skipping) mode or continuous inductor current mode.

Applications

Automotive Always-On and Start-Stop Systems
Industrial and Point of Load Applications

All registered trademarks and trademarks are the property of their respective owners. Protected by U.S. patents, including 5481178, 5705919, 5929620, 6100678, 6144194, 6177787, 5408150, 6580258, 6304066, 7420359, 8786268 Patent Pending. Licensed under U.S. Patent 7000125 and other related patents worldwide.
