ADV7671A

RECOMMENDED FOR NEW DESIGNS

48 Gbps HDMI 1:1 Transceiver

Analog Devices ADV7671A Product Info

10 February 2026 5

Features

1-input, 1-output HDMI transceiver, uncompressed video support up to

8k60 YCbCr 4:2:0 ,12-bit
8k30 RGB/YCbCr 4:4:4/4:2:2 ,12-bit
4k120 RGB 4:4:4 ,12-bit
4k240, YCbCr 4:2:0, 12-bit

HDMI receiver

Up to 48 Gbps FRL support
Up to 18 Gbps TMDS video support
eARC transmitter
On-chip, 4-block EDID SRAM managed by external MCU host processor through API

HDMI transmitter

Up to 48 Gbps FRL support
Up to 18 Gbps TMDS video support
eARC receiver

HDCP

HDCP 1.4 and HDCP 2.3 support
Independent HDCP support on transmitter and receiver ports
Fully integrated HDCP 1.4 and HDCP 2.3 repeater modes
On-chip key storage in OTP memory

Audio

Audio extraction and insertion ports
6-channel, 1-bit audio support
8-channel, 192 kHz, 24-bit LPCM audio support
24.576 Mbps IEC 61937 compressed audio support

Video

FRL to TMDS and TMDS to FRL mode conversion
VRR, QFT, QMS, and ALLM passthrough support
Dynamic HDR passthrough support including HDMI dynamic HDR metadata, HDR10+, and Dolby Vision
DSC 1.2a compressed video passthrough support

Character and icon-based OSD capable of overlaying text and icons on 2D and 3D video formats
CEC 1.4 and 2.0
HDMI 1.4a, HDMI 1.4b, HDMI 2.0, and HDMI 2.1 compliant, and DVI-compatible transceiver

Part details & applications

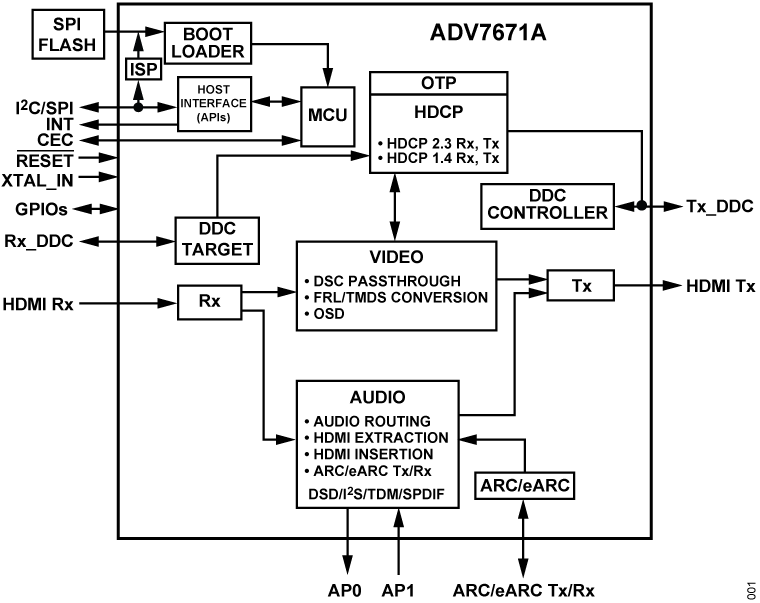

The ADV7671A is a High-Definition Multimedia Interface (HDMI^®) transceiver.

The ADV7671A supports 48 Gbps fixed rate link (FRL) and 18 Gbps transition minimized differential signaling (TMDS) video rates. The ADV7671A provides an HDMI receiver port, an HDMI transmitter port, an audio input port, an audio output port, and an enhanced audio return channel (eARC) interface.

The HDMI receiver and transmitter support up to uncompressed 8k at 60 Hz (8k60) YCbCr 4:2:0 12-bit video, 8k at 30 Hz (8k30) RGB 12-bit video, and 4k at 120 Hz (4k120) RGB 12-bit high frame rate video, with Digital Visual Interface (DVI) compatibility.

The audio input and output ports support 8‑channel at 192 kHz, 16-Channel at 96 kHz, and 32-Channel at 48 kHz linear pulse code modulation (LPCM). The ADV7671A audio ports also support compressed audio formats.

The eARC interface can be configured as either an eARC transmitter or an eARC receiver. The eARC interface supports 8-channel, 192 kHz LPCM audio, and high bit rate audio (HBR) compressed audio formats including 1-bit Direct Stream Digital^® (DSD) audio, Dolby Atmos^™, Dolby TrueHD^™, and DTS-HD^™.

The ADV7671A supports passthrough of Display Stream Compression (DSC) 1.2a data and high dynamic range (HDR) metadata passthrough for HDMI dynamic HDR, HDR10+, and Dolby Vision^™.

The ADV7671A implements the High-bandwidth Digital Content Protection (HDCP) 2.3 specification to protect the delivery of premium content. HDCP 2.3 is backward compatible with HDCP 2.2. and supports HDCP 1.4 to provide interoperability with legacy devices.

The ADV7671A has an integrated on-screen display (OSD) generator that enables the creation and control of high quality character and icon-based system status and control displays. The OSD can be overlaid on uncompressed video formats up to 8k/10k.

The A
