Analog Devices LTC6930 Product Info

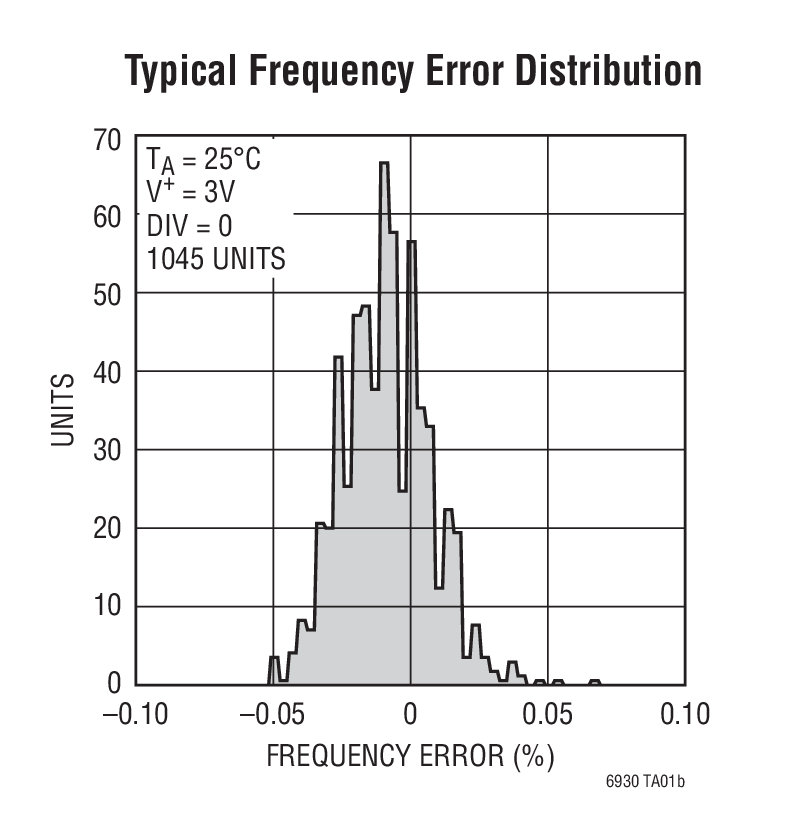

• Frequency Error <0.09% Max at 25°C
• Start-Up Time <110μs at All Frequencies
• 1.7V to 5.5V Single Supply Operation
• 105μA Typical Supply Current at 32kHz, V⁺ = 3V
• 490μA Typical Supply Current at 8MHz, V⁺ = 3V
• Typical RMS Period Jitter <0.15% at V⁺ = 3V
• No External Components to Set Frequency
• 5 Options Cover 32.768kHz to 8.192MHz:
  • LTC6930-4.19: 4.194304MHz ÷ N
  • LTC6930-5.00: 5.000000MHz ÷ N
  • LTC6930-7.37: 7.372800MHz ÷ N
  • LTC6930-8.00: 8.000000MHz ÷ N
  • LTC6930-8.19: 8.192000MHz ÷ N
  • Where N = 1, 2, 4, 8, 16, 32, 64, 128
  • (N Determined by State of DIVA, DIVB, DIVC Pins)
• –55°C to 125°C Operating Temperature Range

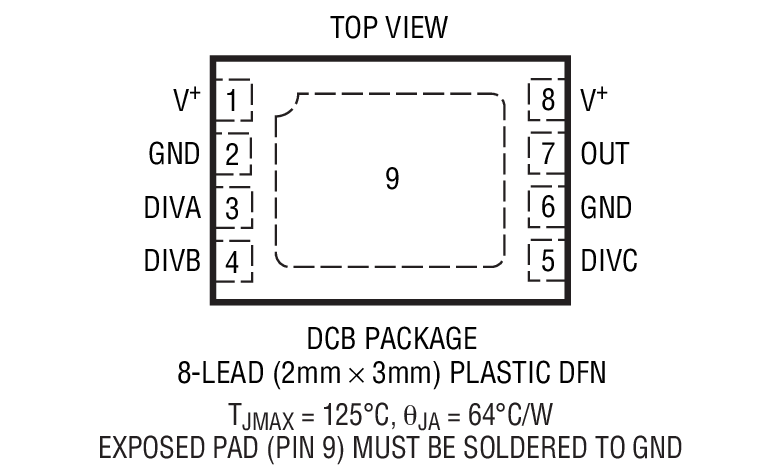

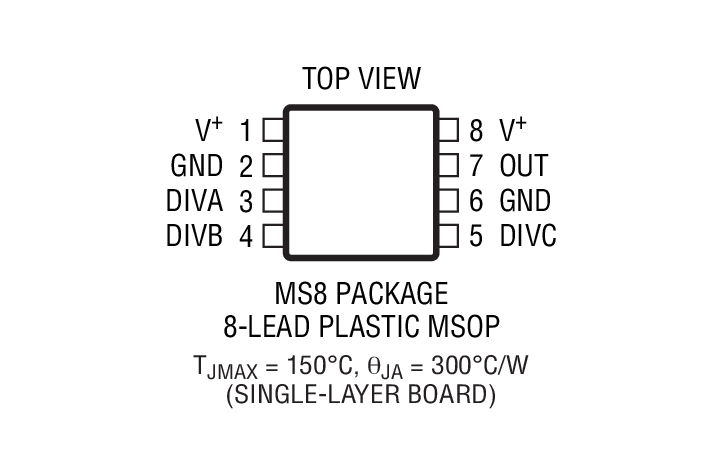

• Tiny 2mm x 3mm DFN or MS8 Package

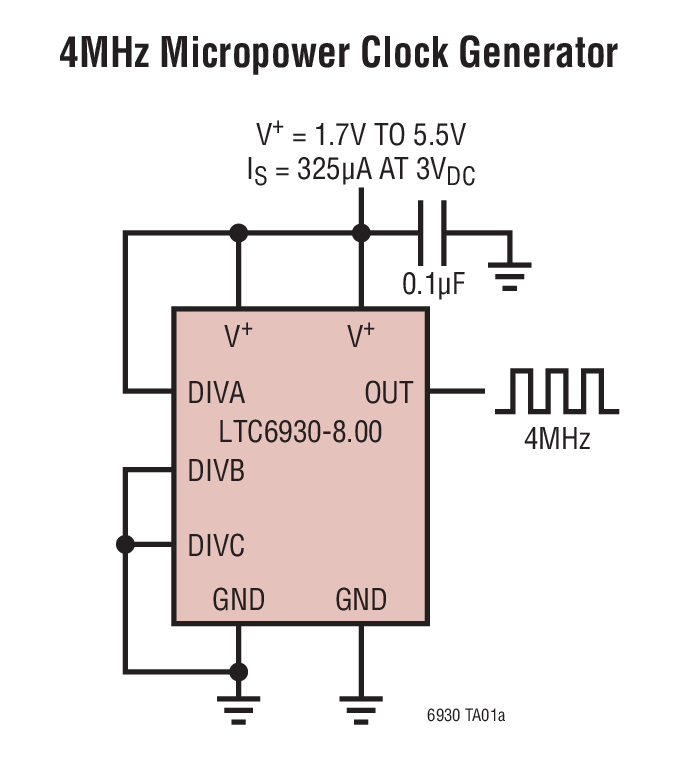

The LTC6930 series is a family of very low power precision silicon oscillators with a frequency error less than 0.09%. For each oscillator, the user can select one of 8 frequencies between 32.768kHz and 8.192MHz. Based on a fixed master oscillator frequency, internal frequency dividers between 1 and 128 provide the 8 different frequencies. The LTC6930 requires no external components other than power supply bypass capacitors. Requiring only a single 1.7V to 5.5V supply enables operation from a single Li-Ion cell or 2 AA alkaline cells.

The LTC6930 features a proprietary control architecture that allows for ultralow power operation while maintaining industry leading accuracy and jitter specifications. The exceptionally fast start-up time, combined with the low power consumption, is ideal for battery operated applications with frequent power-up cycles.

Any frequency from 32.768kHz to 8.192MHz can be provided by the factory. Minimum order sizes apply for custom frequencies.

Applications

• Digitally Controlled Oscillator
• Microprocessor Clock
• Power Supply Clock
• Portable and Battery Operated Devices
