Analog Devices LTC1606 Product Info

• Sample Rate: 250ksps
• Single 5V Supply
• Bipolar Input Range: ±10V
• Signal-to-Noise Ratio: 90dB Typ
• Power Dissipation: 75mW Typ
• Guaranteed No Missing Codes

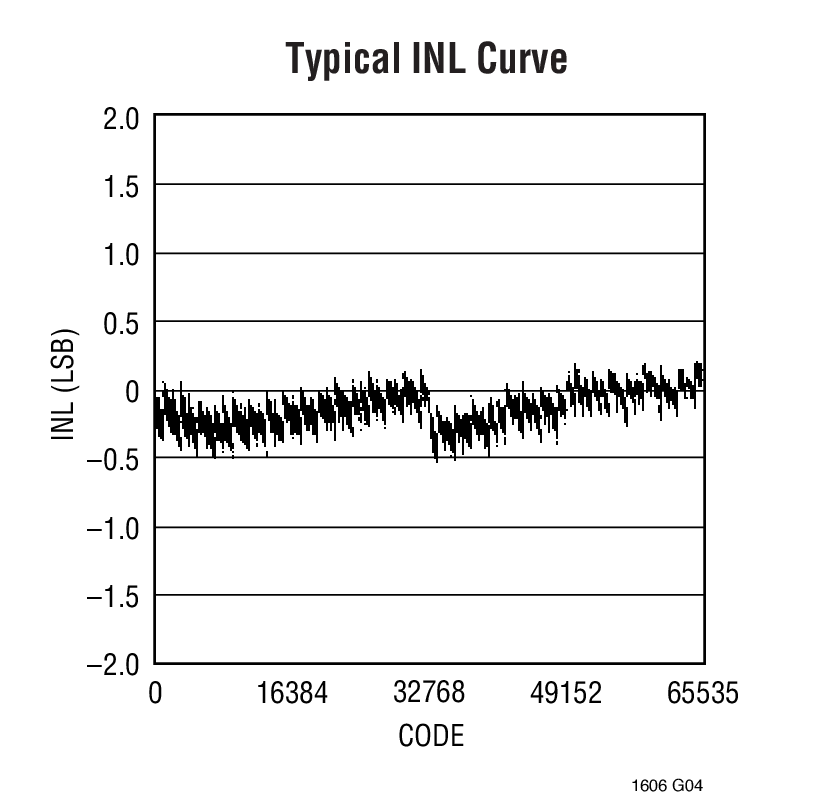

• Integral Nonlinearity: ±2.0LSB Max
• Operates with Internal or External Reference
• Internal Synchronized Clock

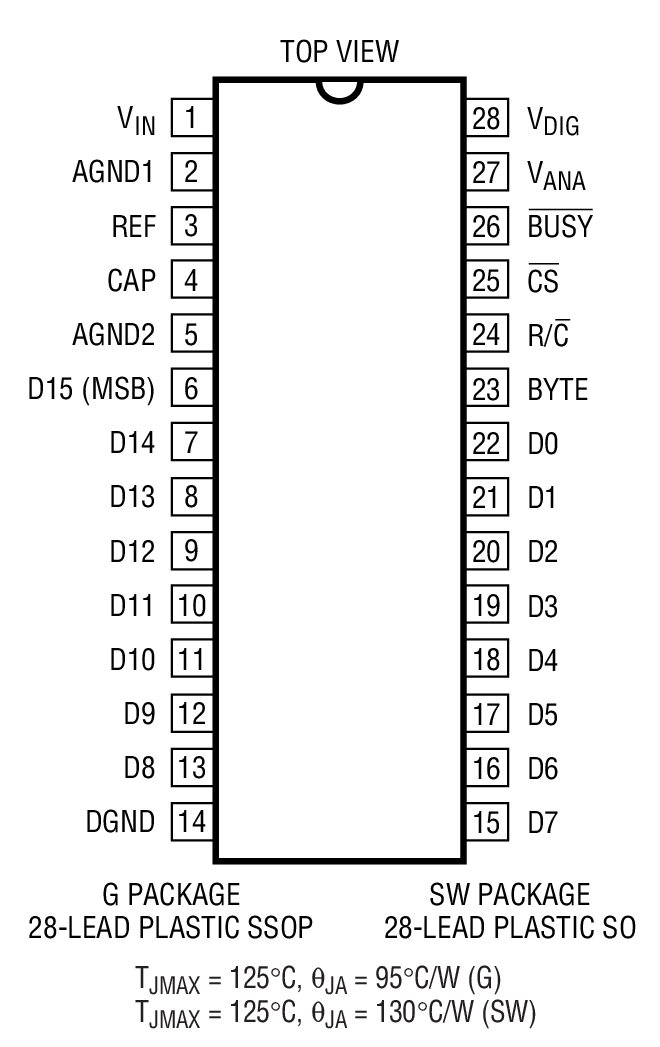

• 28-Pin SSOP and SO Packages
• 100ksps Version (LTC1605)
• Improved 2nd Source to AD976A and ADS7805
• Available in 28-Lead Plastic SSOP and SO Packages

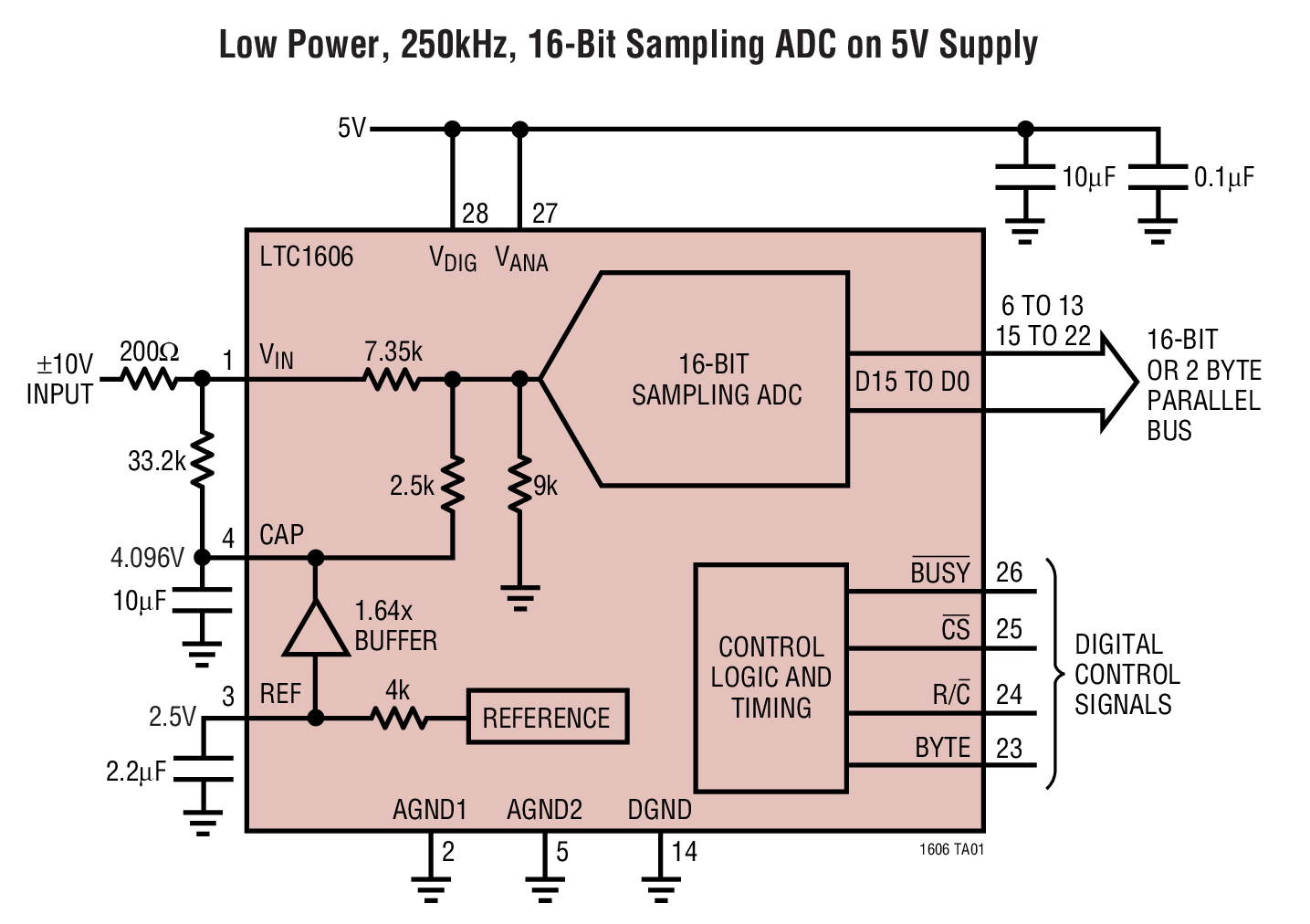

The LTC1606 is a 250ksps, sampling 16-bit A/D converter that draws only 75mW (typical) from a single 5V supply. This easy-to-use device includes sample-and-hold, precision reference, switched capacitor successive approximation A/D and trimmed internal clock.

The LTC1606's input range is an industry standard ±10V. Maximum DC specs include ±2.0LSB INL and 16 bits no missing codes over temperature. An external reference can be used if greater accuracy over temperature is needed.

The 90dB signal-to-noise ratio offers an improvement of 3dB over competing devices, and the RMS transition noise is reduced (0.65LSB vs 1LSB) relative to competitive parts.

The ADC has a microprocessor compatible, 16-bit or two byte parallel output port. A convert start input and a data ready signal (BUSY) ease connections to FIFOs, DSPs and microprocessors.

Applications

• Industrial Process Control
• Multiplexed Data Acquisition Systems
• High Speed Data Acquisition for PCs
• Digital Signal Processing
