Analog Devices LTC2512-24 Product Info

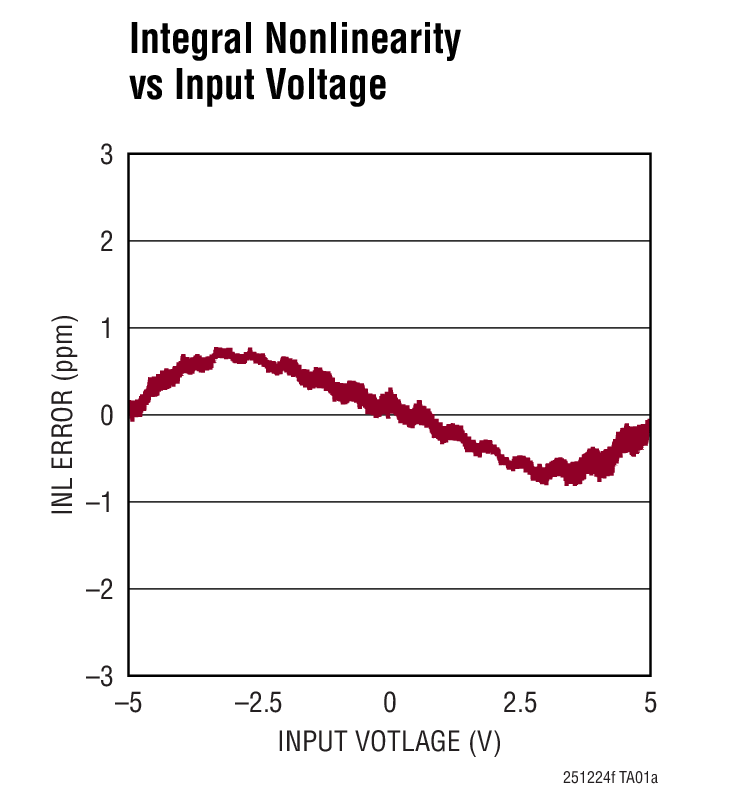

• ±1ppm INL (Typ)
• 117dB Dynamic Range (Typ) at 50ksps
• 108dB Dynamic Range (Typ) at 400ksps
• Guaranteed 24-Bits No Missing Codes
• Configurable Digital Filter with Synchronization
• Relaxed Anti-Aliasing Filter Requirements
• Dual Output 24-Bit SAR ADC
• 24-Bit Digitally Filtered Low Noise Output
• 14-Bit Differential + 8-Bit Common Mode No Latency Output
• Wide Input Common-Mode Range
• Guaranteed Operation to 85°C
• 1.8V to 5V SPI-Compatible Serial I/O
• Low Power: 30mW at 1.6Msps

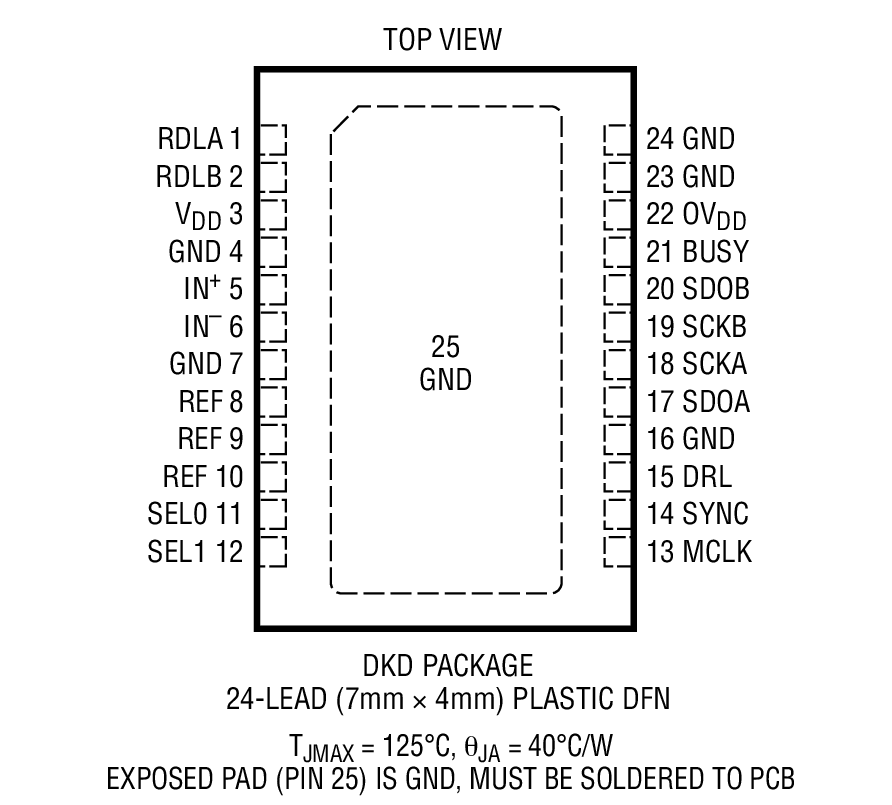

• 24-Lead 7mm × 4mm DFN Package

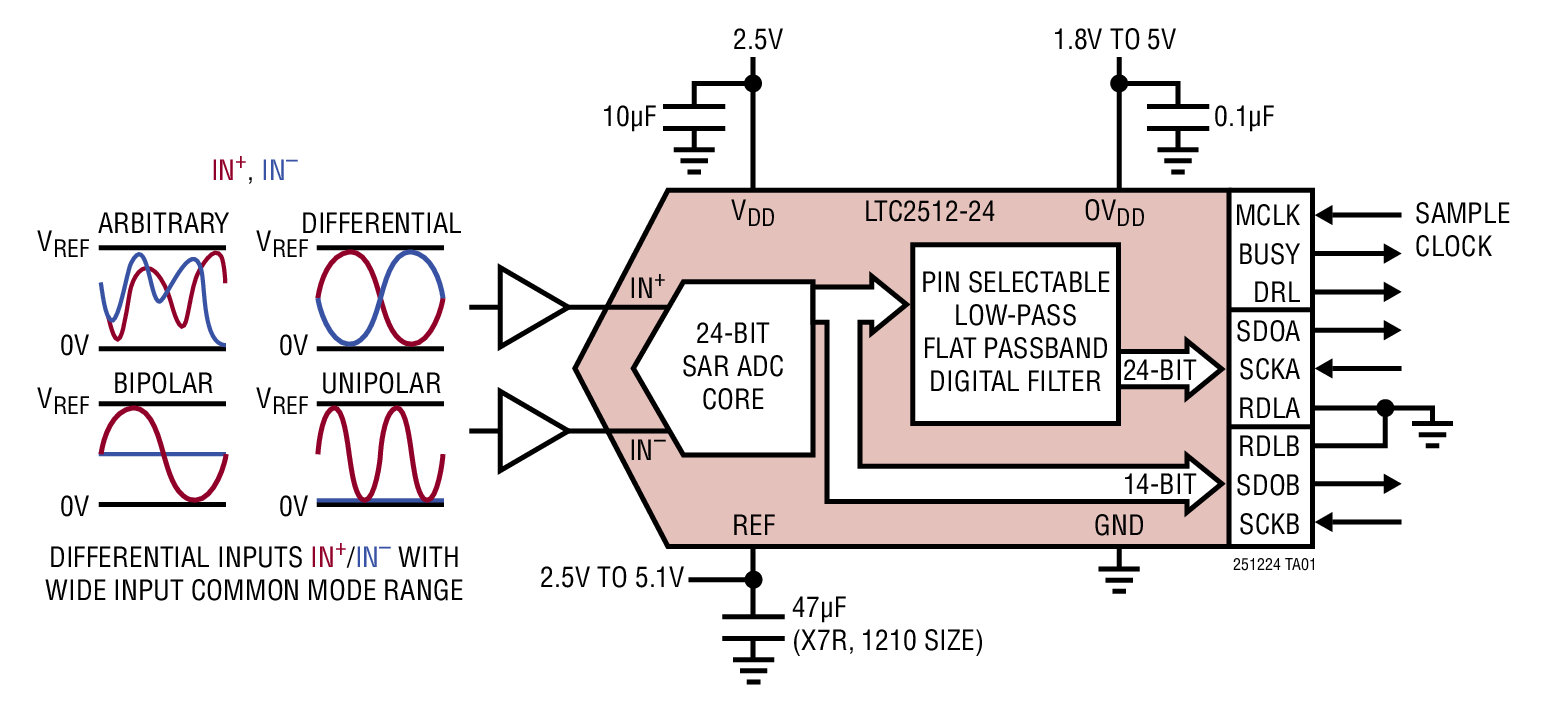

The LTC2512-24 is a low noise, low power, high-performance 24-bit ADC with an integrated configurable digital filter. Operating from a single 2.5V supply, the LTC2512-24 features a fully differential input range up to ±V_REF, with V_REF ranging from 2.5V to 5.1V. The LTC2512-24 supports a wide common mode range from 0V to V_REF simplifying analog signal conditioning requirements.

The LTC2512-24 simultaneously provides two output codes: (1) a 24-bit digitally filtered high precision low noise code, and (2) a 22-bit no latency composite code. The configurable digital filter reduces measurement noise by lowpass filtering and down-sampling the stream of data from the SAR ADC core, giving the 24-bit filtered output code. The 22-bit composite code consists of a 14-bit code representing the differential voltage and an 8-bit code representing the common mode voltage. The 22-bit composite code is available each conversion cycle, with no cycle of latency.

The digital filter can be easily configured for 4 different down-sampling factors by pin strapping. The configurations provide a dynamic range of 108dB at 400ksps and 117dB at 50ksps. The digital lowpass filter relaxes the requirements for analog anti-aliasing. Multiple LTC2512-24 devices can be easily synchronized using the SYNC pin.

Applications

• Seismology
• Energy Exploration
• Automated Test Equipment (ATE)
• High-Accuracy Instrumentation
