Analog Devices MAX11607 Product Info

• Reduce Cost with Highly Integrated ADCs
  • Internal Reference
    • 2.048V (MAX11607/MAX11609/MAX11611)
    • 4.096V (MAX11606/MAX11608/MAX11610)
  • External Reference Option: 1V to V_DD
  • Internal Clock
  • 4-Channel Single-Ended or 2-Channel Fully Differential (MAX11606/MAX11607)
  • 8-Channel Single-Ended or 4-Channel Fully Differential (MAX11608/MAX11609)
  • 12-Channel Single-Ended or 6-Channel Fully Differential (MAX11610/MAX11611)
  • Internal FIFO with Channel-Scan Mode
  • Software-Configurable Unipolar/Bipolar
  • High-Speed I²C-Compatible Serial Interface
    • 400kHz Fast Mode
    • 1.7MHz High-Speed Mode
• Simplify Power-Supply Design with Single-Supply Operation
  • 2.7V to 3.6V (MAX11607/MAX11609/MAX11611)
  • 5V to 5.5V (MAX11606/MAX11608/MAX11610)
  • Low Power
    • 670µA at 94.4ksps
    • 230µA at 40ksps
    • 60µA at 10ksps
    • 6µA at 1ksps
    • 0.5µA in Power-Down Mode
• Reduce Size with Ultra-Small Packages
  • 8-Pin µMAX (MAX11606/MAX11607)
  • 12-Pin 1.9mm x 2.2mm, Wafer-Level Package(MAX11607)
• 16-Pin QSOP (MAX11608–MAX11611)

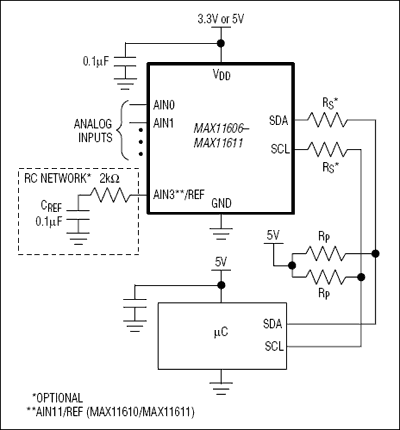

The MAX11606–MAX11611 low-power, 10-bit, multichannel analog-to-digital converters (ADCs) feature internal track/hold (T/H), voltage reference, clock, and an I²C-compatible 2-wire serial interface. These devices operate from a single supply of 2.7V to 3.6V (MAX11607/MAX11609/MAX11611) or 4.5V to 5.5V (MAX11606/MAX11608/MAX11610) and require only 670µA at the maximum sampling rate of 94.4ksps. Supply current falls below 230µA for sampling rates under 46ksps. AutoShutdown™ powers down the devices between conversions, reducing supply current to less than 1µA at low throughput rates. The MAX11606/MAX11607 have 4 analog input channels each, the MAX11608/MAX11609 have 8 analog input channels each, while the MAX11610/MAX11611 have 12 analog input channels each. The fully differential analog inputs are software configurable for unipolar or bipolar, and single ended or differential operation.

The full-scale analog input range is determined by the internal reference or by an externally applied reference voltage ranging from 1V to V_DD. The MAX11607/MAX11609/MAX11611 feature a 2.048V internal reference and the MAX11606/MAX11608/MAX11610 feature a 4.096V internal reference.

The MAX11606/MAX11607 are available in an 8-pin µMAX^® package. The MAX11607 is also available in an ultra-small 1.9mm x 2.2mm WLP package. The MAX11608–MAX11611 are available in a 16-pin QSOP package. The MAX11606–MAX11611 are guaranteed over the extended temperature range (-40°C to +85°C). For pin-compatible 12-bit parts, refer to the MAX11612–MAX11617 data sheet. For pin-compatible 8-bit parts, refer to the MAX11600–MAX11605 data sheet.

Applications

• Battery-Powered Test Equipment
• Handheld Portable Applications
• Medical Instruments
• Received-Signal-Strength Indicators
• Solar-Powered Remote Systems
• System Supervision
