HMC7992

RECOMMENDED FOR NEW DESIGNS

Nonreflective, Silicon SP4T Switch, 0.1 GHz to 6.0 GHz

Analog Devices HMC7992 Product Info

10 February 2026 5

Features

Nonreflective, 50 Ω design
High isolation: 45 dB typical at 2 GHz
Low insertion loss: 0.6 dB at 2 GHz
High power handling
- 33 dBm through path
- 27 dBm terminated path
High linearity
- 1 dB compression (P1dB): 35 dBm typical
- Input third-order intercept (IIP3): 58 dBm typical

ESD rating: 2 kV human body model (HBM), Class 2
Single positive supply: 3.3 V to 5.0 V

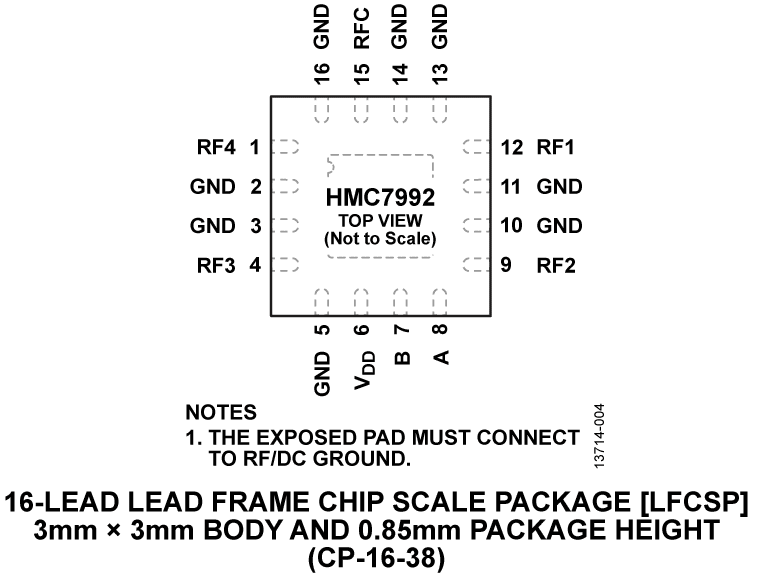

Standard TTL-, CMOS-, and 1.8 V-compatible control 16-lead, 3 mm × 3 mm LFCSP package (9 mm²)
Pin compatible with the HMC241ALP3E

Part details & applications

The HMC7992 is a general-purpose, nonreflective, 0.1 GHz to 6.0 GHz, silicon, single-pole, four-throw (SP4T) switch in a leadless, surface-mount package. The switch is ideal for cellular infrastructure applications, offers high isolation of 45 dB typical at 2 GHz, and a low insertion loss of 0.6 dB at 2 GHz. It offers excellent power handling capability up to 6.0 GHz, with input power of 1 dB compression point (P1dB) of 35 dBm at 5 V operation. The HMC7992 has good low frequency input power handling below 0.1 GHz and can operate well down to 10 kHz, with a typical 1 dB compression of 21 dBm and an IIP3 of 37 dBm at 1 MHz.

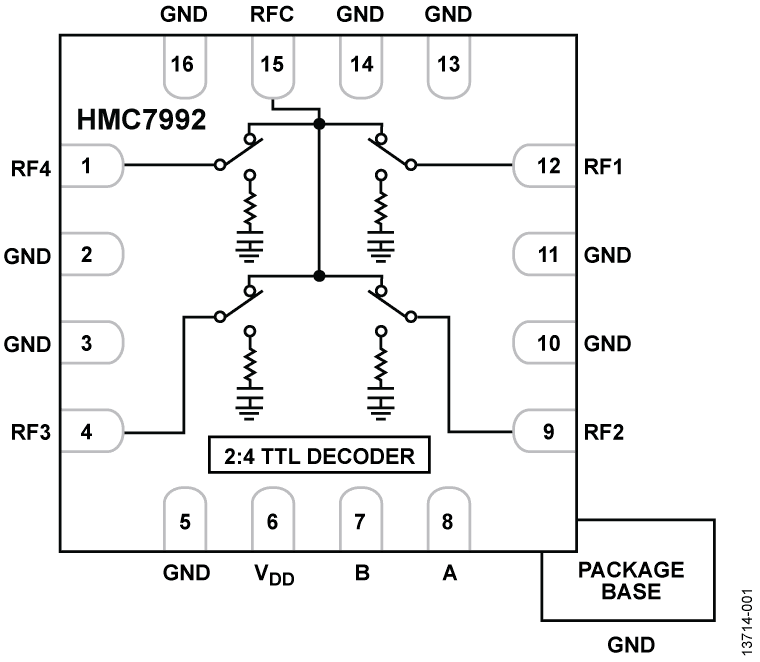

The on-chip circuitry allows the HMC7992 to operate at a single, positive supply voltage range from 3.3 V to 5 V, and as well as a single, positive control voltage from 0 V to 1.8 V/3.3 V/5.0 V. A 2:4 decoder integrated in the switch requires only two controlled input signals, with a positive control voltage range from 0 V to 1.8 V/3.3 V/5.0 V, to select one of the four radio frequency (RF) paths.

Applications

Cellular/4G infrastructure
Wireless infrastructure
Automotive telematics
Mobile radios
Test equipment
