HMC1018A
  • HMC1018A

HMC1018A

RECOMMENDED FOR NEW DESIGNS

1.0 dB LSB GaAs MMIC 5-BIT DIGITAL ATTENUATOR, 0.1 - 30 GHz

Analog Devices HMC1018A Product Info

10 February 2026 4

Features

  • 1.0 dB LSB Steps to 31 dB
  • TTL/CMOS Compatible, Serial Control
  • Unique Asynchronous Mode Control Allows Immediate Attenuation Level Setting
  • ±1.0 dB Typical Bit Error
  • High Input IP3: +43 dBm
  • 24 Lead 4×4mm SMT Package: 16mm2

Part details & applications

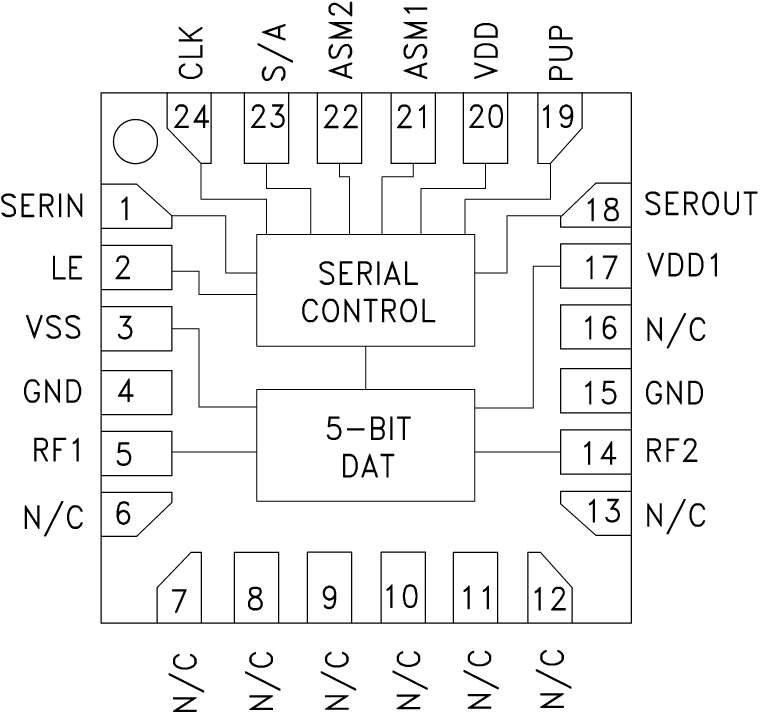

The HMC1018ALP4E is a broadband 5-bit GaAs IC digital attenuator in a low cost leadless surface mount package. Covering 0.1 to 30.0 GHz, the insertion loss is less than 5.5 dB typical. The attenuator bit values are 1.0 (LS B), 2, 4, 8, 16 for a total attenuation of 31 dB. Attenuation accuracy is excellent at ±0.4 dB typical step error with an IIP3 of +43 dBm. The control interface is CMOS/TTL compatible and accepts a three wire serial input. The HMC1018ALP4E features a user selectable power up state and a serial output port for cascading other Analog Devices serial controlled components.

APPLICATIONS

  • Fiber Optics & Broadband Telecom
  • Microwave Radio & VSAT
  • Military Radios, Radar & ECM
  • Space Applications
  • Sensors
  • Test & Measurement Equipment
