HMC1169

RECOMMENDED FOR NEW DESIGNS

12.92 GHz to 14.07 GHz MMIC VCO with Half Frequency Output

Analog Devices HMC1169 Product Info

10 February 2026 4

Features

Dual output frequency range
- f_OUT = 12.92 GHz to 14.07 GHz
- f_OUT/2 = 6.46 GHz to 7.035 GHz
Output power (P_OUT): 11.5 dBm
Single-sideband (SSB) phase noise: −113 dBc/Hz at 100 kHz
No external resonator needed

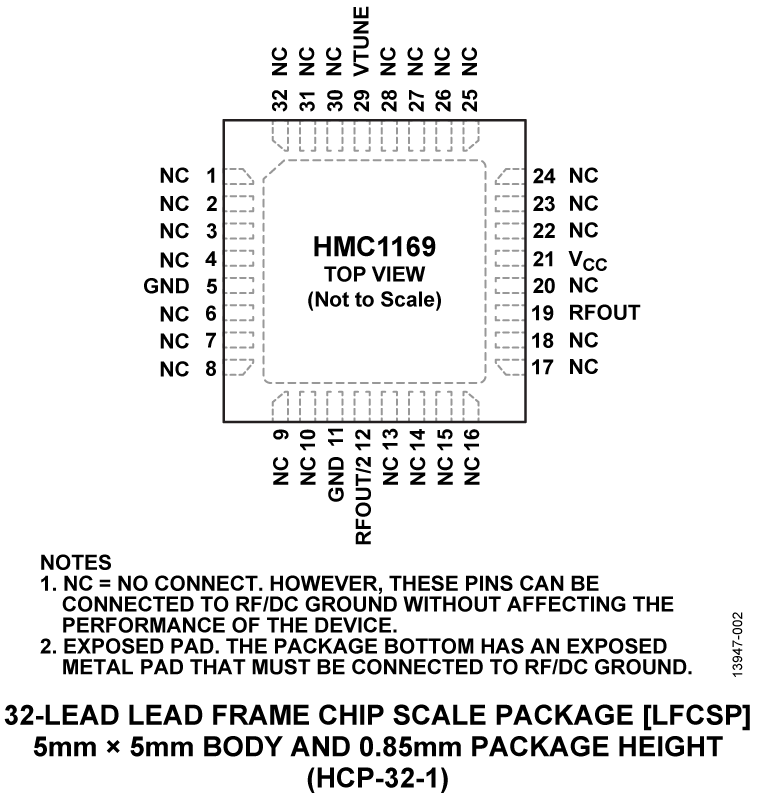

RoHS-compliant, 5 mm × 5 mm, 32-lead LFCSP: 25 mm²

Part details & applications

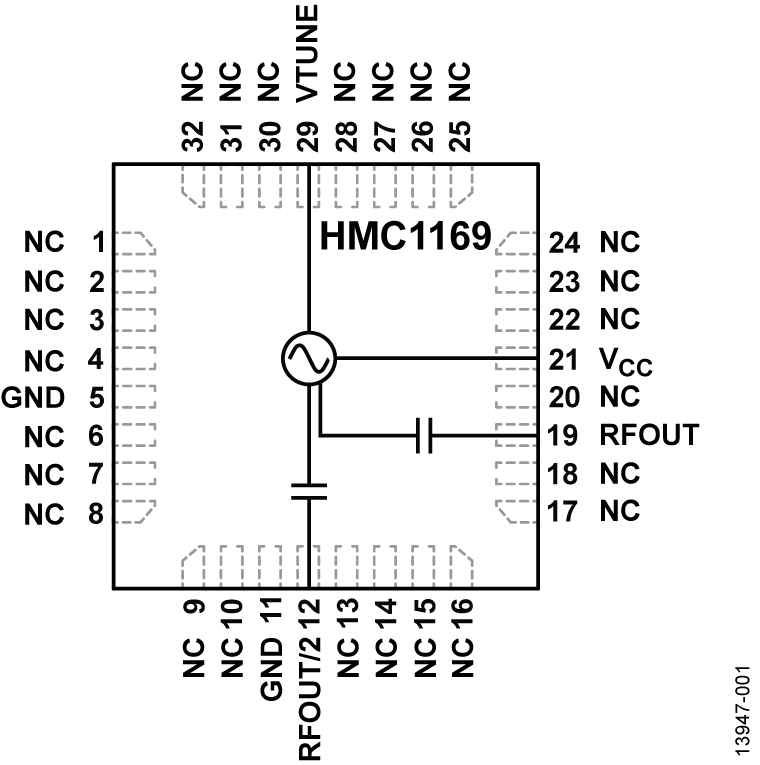

The HMC1169 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.

Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.

The output power is 11.5 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS compliant LFCSP and requires no external matching components.

Applications

Point to point and multipoint radios
Test equipment and industrial controls
Very small aperture terminals (VSATs)
