AD9088

PRE-RELEASE

Apollo MxFE Octal, 16-Bit, 16 GSPS RF DAC and Octal, 12-Bit, 8 GSPS RF ADC

Analog Devices AD9088 Product Info

10 February 2026 4

Features

Flexible reconfigurable common platform design
- 8 DACs and 8 ADCs (8D8A)
- Usable RF analog bandwidth to 16 GHz
- Maximum DAC/ADC sample rate up to 16 GSPS/8 GSPS
DAC to ADC sample rate ratios of 1 and 2
- Clocking
- On-chip PLL (7 GHz to 14 GHz VCO)
External RFCLK input up to 8 GHz
- Multichip synchronization
Single-ended (SE) ADC inputs
- 50 Ω input impedance
- Integrated on-chip wide bandwidth balun
ADC AC performance at 8 GSPS
- Full-scale input voltage: 650 mV p-p/0.3 dBm
- Noise density: −148 dBFS/Hz at −20 dBFS at 2 GHz
- HD2/HD3: −70 dBFS/−75 dBFS at −7 dBFS at 2 GHz
- IMD3: −75 dBFS at −13 dBFS/tone at 2 GHz
DAC AC performance at 16 GSPS
- Full-scale output power: −1.1 dBm at 2 GHz
- IMD3: −7 5 dBc at −13 dBFS/tone at 2 GHz
- NSD (shuffling disabled): −163 dBFS/Hz at −1 dBFS at 2 GHz
- NSD (shuffling enabled): −158 dBFS/Hz at −1 dBFS at 2 GHz
Versatile digital features
- Supports real or complex digital data (8-, 12-, 16-bit)
- Configurable DDC and DUC
- 16 fine complex DUCs and 8 coarse complex DUCs
- 16 fine complex DDCs and 8 coarse complex DDCs
- Option to bypass fine and coarse DUC/DDC
- DUC/DDC alias rejection
- 85 dB for interpolation filters
- 100 dB for decimation filters

Programmable FIR filters for transmit/rece

Part details & applications

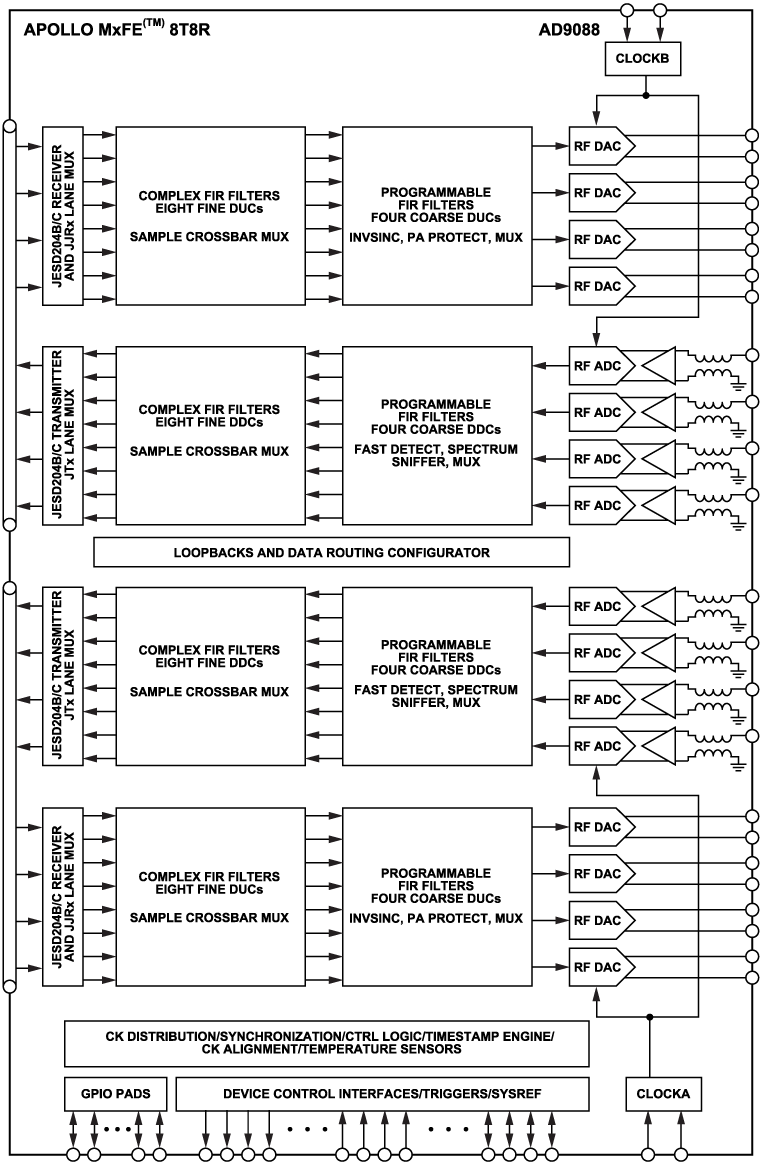

The Apollo mixed signal front-end (MxFE™) is a highly integrated device with a 16-bit, 16 GSPS maximum sample rate, RF digital-to-analog converter (DAC) core, and 12-bit, 8 GSPS maximum sample rate, RF analog-to-digital converter (ADC) core. The AD9088 supports eight transmit channels and eight receive channels. The AD9088 is well suited for applications requiring both wideband ADCs and DACs to process signal(s) having wide instantaneous bandwidth. The device features a 48 lane, 32.5 Gbps JESD204C or 20 Gbps JESD204B data transceiver port, an on-chip clock multiplier, and a digital signal processing (DSP) capability targeted at either wideband or multi-band, direct to RF applications. The AD9088 also features a bypass mode that allows the full bandwidth capability of the ADC and/or DAC cores to bypass the DSP datapaths. The device also features low latency loopback and frequency hopping modes targeted at phased array radar systems and electronic warfare applications.

The AD9088 is available in a 24mm x 26mm, 899-ball BGA and operates within the –40°C to +110°C junction temperature range. For additional information, contact [email protected].

APPLICATIONS

Radar and communications
L/S/C band radar and electronic warfare
Phase array system
Broadband communications systems
Electronic test and measurement systems
Satellite communications
Microwave point-to-point, E-band and 5G mmWave
