Analog Devices DS8023 Product Info

• Analog Interface and Level Shifting for IC Card Communication
• ±8kV (min) ESD (IEC) Protection on Card Interface Pins
• Ultra-Low Stop-Mode Current, Less Than 10nA (typ)
• Internal IC Card-Supply Voltage Generation
  • 5.0V ±5%, 80mA (max)
  • 3.0V ±8%, 65mA (max)
  • 1.8V ±10%, 30mA (max)
• Automatic Card Activation and Deactivation Controlled by Dedicated Internal Sequencer
• I/O Lines from Host Directly Level Shifted for Smart Card Communication
• Flexible Card Clock Generation, Supporting External Crystal Frequency Divided by 1, 2, 4, or 8
• High-Current/Short-Circuit and High-Temperature Protection

The DS8023 smart card interface IC is a low-cost, low-power, analog front-end for a smart card reader designed for all ISO 7816, EMV*, and GSM11-11 applications. The DS8023 supports 5V, 3V, and 1.8V smart cards, and provides an option for ultra-low stop-mode power consumption. The DS8023 is available in 28-pin TSSOP and SO packages, and can often be used as a replacement for the TDA8024 with little or no application changes.

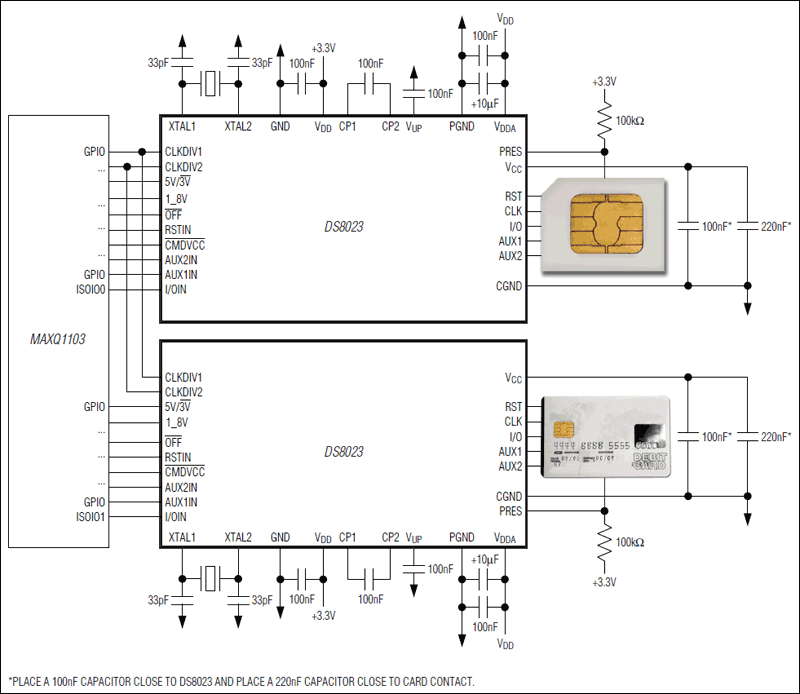

The DS8023 is designed to interface between a system microcontroller and the smart card interface, providing all power supply, protection, and level shifting required for IC card applications.

Applications

• Access Control
• Automated Teller Machines
• Banking Applications
• Debit/Credit Payment Terminals
• Pay/Premium Television
• PIN Pads
• POS Terminals
• Set-Top Box Conditional Access
• Telecommunications
