Analog Devices MAX22514 Product Info

• High Configurability and Integration
  • IO-Link Device and Master Applications
  • COM1, COM2, and COM3 Data Rates
  • Integrated High-Efficiency 200mA DC-DC Buck Regulator
  • 200μA/2mA/5mA Current Sinks/Sources
  • C/Q Receiver is Configurable for 5V TTL
  • Highly Configurable Driver Overload Handling
  • Four Selectable Driver Slew Rates
  • SPI Configuration and Monitoring
  • Integrated Temperature Sensor
  • Configurable C/Q Driver: PNP, NPN, and PP Modes
• Integrated Protection Enables Robust Systems
  • Integrated ±1kV/500Ω Surge Protection
  • Spread Spectrum DC-DC
  • Reverse Polarity Protection
  • Glitch Filter for Improved Burst Resilience
  • Hot-Plug Protection
• Optimized for Small Sensor Designs
  • Accurate Oscillator for IO-Link Communication
  • 2.4Ω (typ) Driver On-Resistance for Low Power Dissipation
  • 1.2MHz DC-DC Switching Rate
  • Integrated 3.3V and 5V Linear Regulators
  • Available in Tiny WLP (2.5mm x 2.6mm) and TQFN (4mm x 5mm) Packages

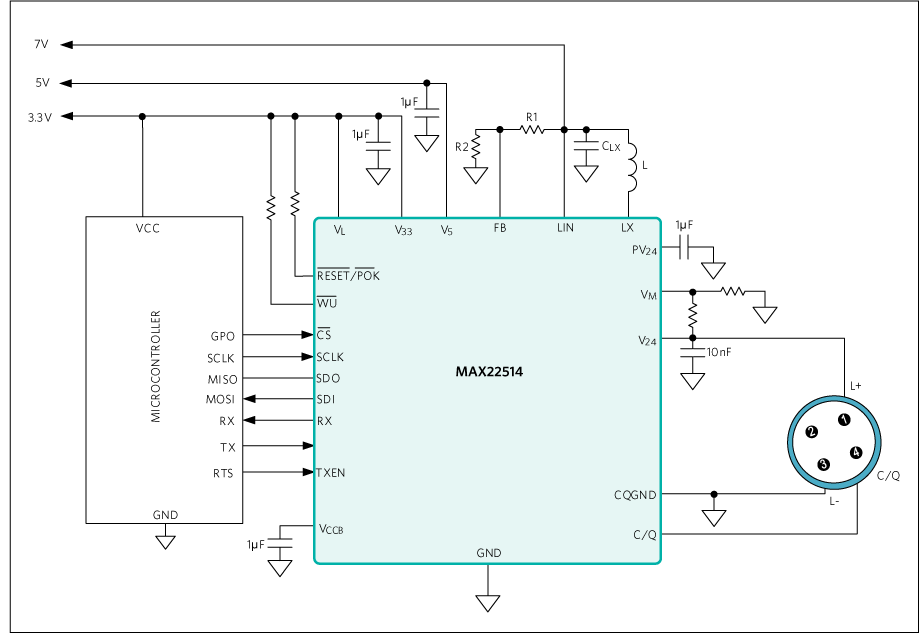

The MAX22514 IO-Link transceiver integrates high voltage functionality, including one 24V line driver, an integrated DC-DC buck regulator, and 5V and 3.3V linear regulators. The MAX22514 is targeted for IO-Link devices, masters, and industrial switching sensor applications, and can be configured and monitored using a standard SPI interface.

Applications

• IO-Link and Industrial Sensor and Actuator Devices
• The MAX22514 features a SPI interface for configuration and diagnostics. A high level of integration (including two linear regulators, a DC-DC buck regulator, and integrated surge protection, combined with low power dissipation and small packages) optimizes the MAX22514 for use in many different industrial and IO-Link small sensor applications.
• IO-Link Master Transceivers: The MAX22514 is capable of being used in both IOLink devices and IO-Link master applications. A SPI interface is used for extended configurability and diagnostics, and the transceiver is capable of operating at the COM1, COM2, and COM3 IO-Link data rates. The MAX22514 can be configured to enable the required 5mA pull-down/pull-up current on the C/Q line and generate a wake-up pulse.
