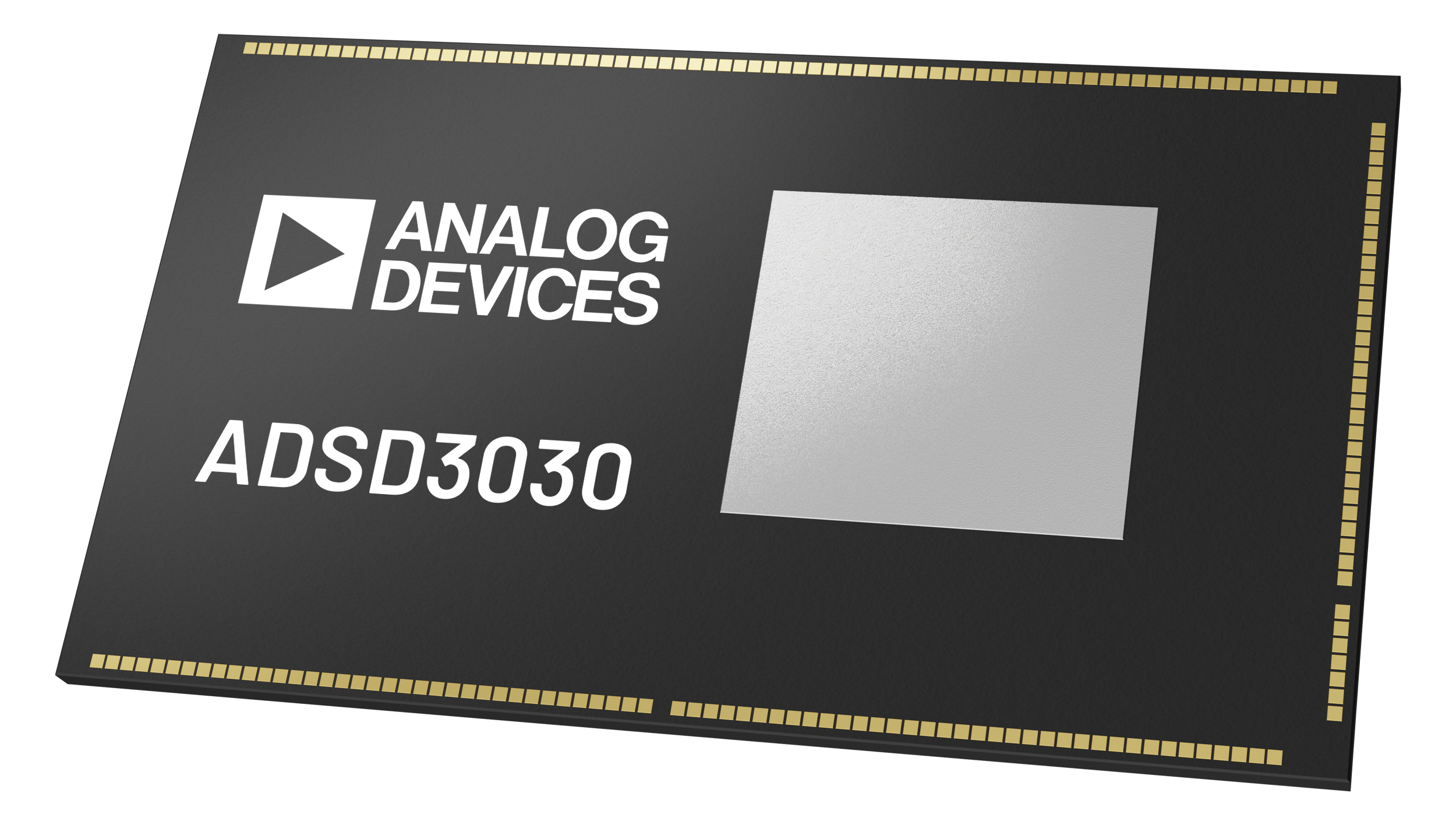

ADSD3030

RECOMMENDED FOR NEW DESIGNS

VGA, CMOS, Time of Flight, Backside Illumination Sensor

Analog Devices ADSD3030 Product Info

10 February 2026 5

Features

512 (horizontal) × 640 (vertical) pixel array
3.5 μm × 3.5 μm square pixels
1/6 inch optical format
4-wire SPI or 2-wire I²C serial interface

MIPI CSI-2 transmitter interface with support for 1 or 2 data lanes, programmable up to 2.5 Gbps per lane
Dual, 3.3 V and 1.2 V external supplies, 1.8 V input and output section
Die size: 3.749 mm± 0.01 mm × 6.4544 mm ± 0.01 mm

Part details & applications

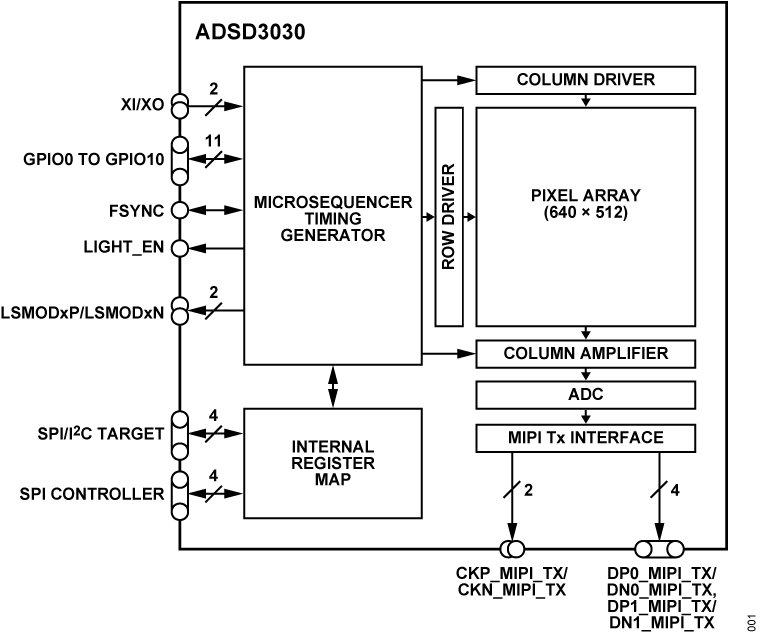

The ADSD3030 is a CMOS 3D Time of Flight (ToF)-based 3D depth and 2D visual light imager that is available for integration into 3D sensor systems. The functional blocks required for read out, which include analog-to-digital converters (ADCs), amplifiers, pixel biasing circuitry, and sensor control logic, are built into the chip to enable a cost-effective and simple implementation into systems.

The ADSD3030 interfaces electrically to a host system over a mobile industry processor interface (MIPI), Camera Serial Interface 2 (CSI-2) interface. A lens plus optical band-pass filter for the imager and an infrared light source plus an associated driver are required to complete the working subsystem.

APPLICATIONS

Smartphones
Augmented reality (AR) and virtual reality (VR)
Machine vision systems (logistics and inventory)
Robotics (consumer and industrial)
