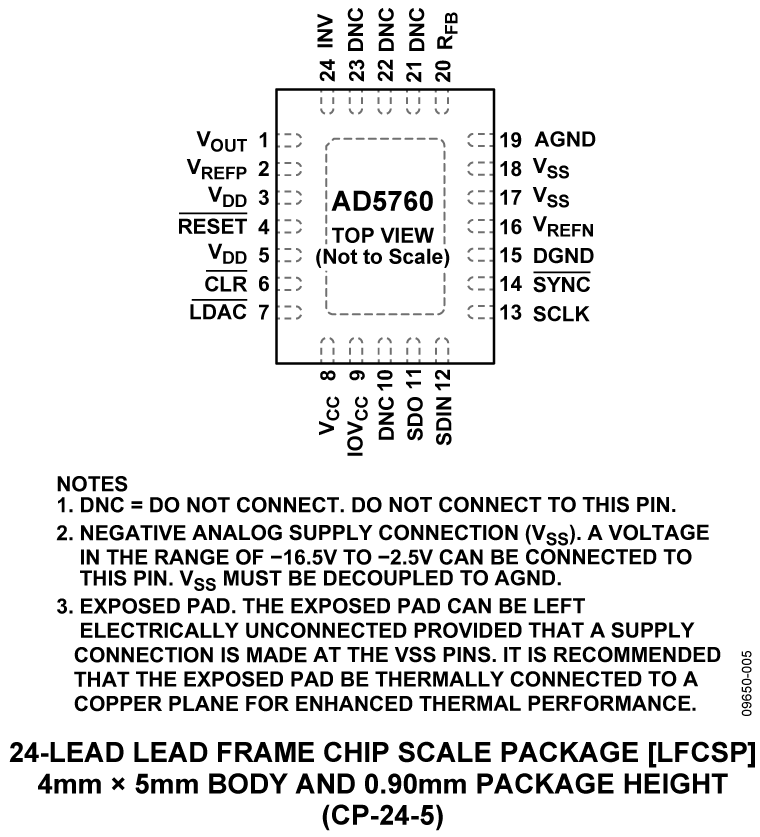

Analog Devices AD5760 Product Info

The AD5760 is a true 16-bit, unbuffered voltage out DAC that operates from a bipolar supply up to 33V. The AD5760 accepts a positive reference input in the range of 5V to V_DD – 2.5V and a negative reference input in the range of V_SS + 2.5v to 0V. The AD5760 offers relative accuracy of +/-0.5 LSB max and operation is guaranteed monotonic with a ±0.5 LSB DNL max range specification.

The part uses a versatile 3-wire serial interface that operates at clock rates of up to 35 MHz and is compatible with standard SPI, QSPI^™, MICROWIRE^™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0V in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides an output clamp feature that places the output in a defined load state.

PRODUCT HIGHLIGHTS

1. True 16-Bit Accuracy.
2. Wide Power Supply Range of Up to ±16.5 V.
3. −40°C to +125°C Operating Temperature Range.
4. Low 8 nV/√Hz Noise.
5. Low 0.018 ppm/°C gain error temperature coefficient.

APPLICATIONS

• Medical instrumentation
• Test and measurement
• Industrial control
• Scientific and aerospace instrumentation
• Data acquisition systems
• Digital gain and offset adjustment
• Power supply control
