AD9154

RECOMMENDED FOR NEW DESIGNS

Quad, 16-Bit, 2.4 GSPS, TxDAC+® Digital-to-Analog Converter

Analog Devices AD9154 Product Info

10 February 2026 5

Features

Supports input data rates up to 1 GSPS
Proprietary, low spurious and distortion design
Single carrier LTE 20 MHz bandwidth (BW), ACLR = 77 dBc at 180 MHz IF
Six carrier GSM IMD = 78 dBc, 600 kHz carrier spacing at 180 MHz IF
SFDR = 72 dBc at 180 MHz IF, −6 dBFS single tone
Flexible 8-lane JESD204B interface
Multiple chip synchronization
Fixed latency
Data generator latency compensation

Input signal power detection
High performance, low noise phase-locked loop (PLL) clock multiplier
Digital inverse sinc filter
Digital quadrature modulation using a numerically controlled oscillator (NCO)
Nyquist band selection—mix mode
Selectable 1×, 2×, 4×, and 8× interpolation filters
Low power: 2.11 W at 1.6 GSPS, full operating conditions

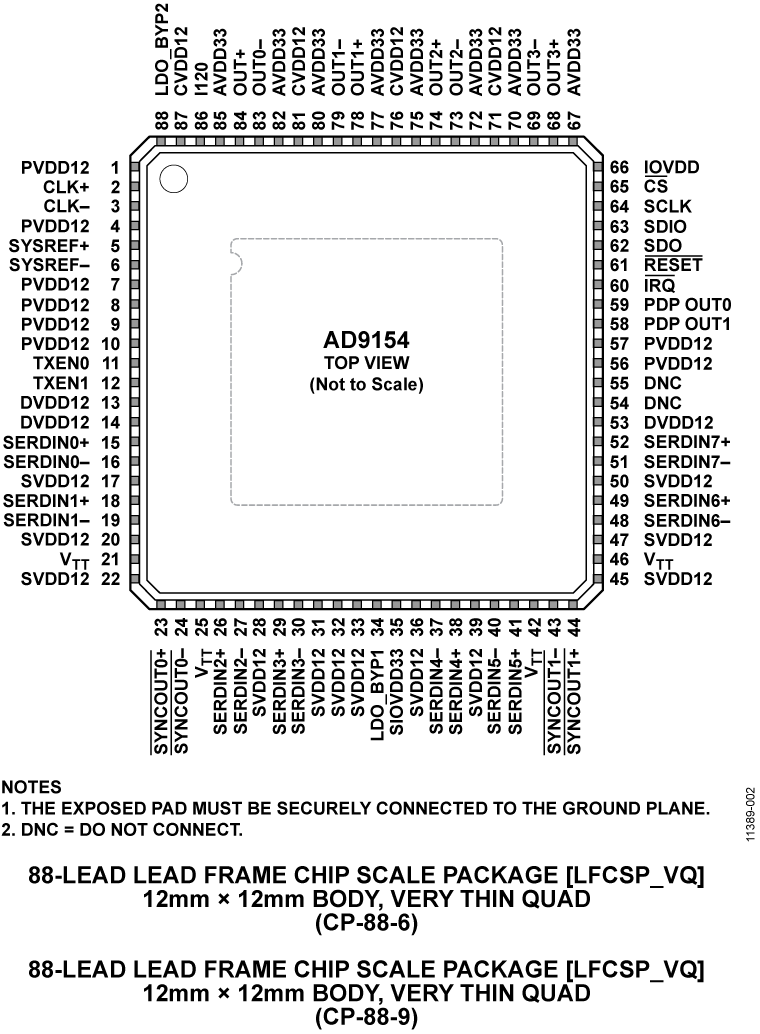

88-lead, exposed pad LFCSP

Part details & applications

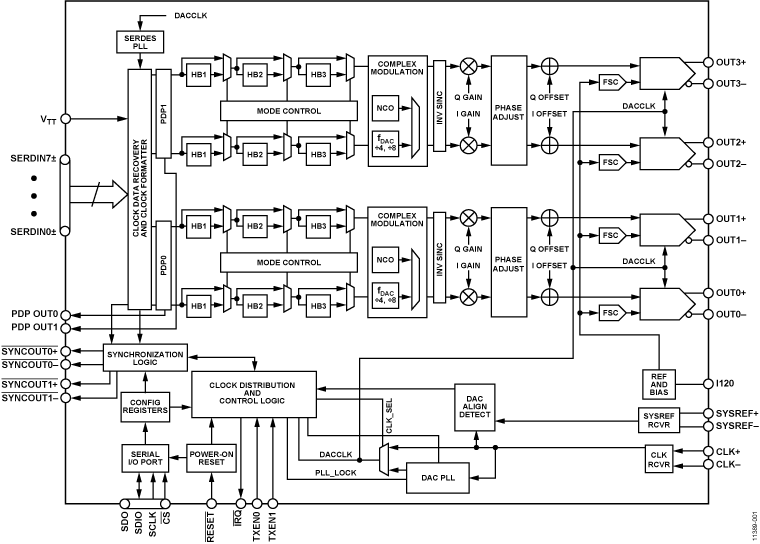

The AD9154 is a quad, 16-bit, high dynamic range digital-to-analog converter (DAC) that provides a maximum sample rate of 2.4 GSPS, permitting multicarrier generation up to the Nyquist frequency in baseband mode. The AD9154 includes features optimized for direct conversion transmit applications including complex digital modulation, input signal power detection, and gain, phase, and offset compensation. The DAC outputs are optimized to interface seamlessly with the ADRF6720-27 radio frequency quadrature modulator (AQM) from Analog Devices, Inc. In mix mode, the AD9154 DAC can reconstruct carriers in the second and third Nyquist Zones. A serial port interface (SPI) provides the programming/readback of internal parameters. The full-scale output current can be programmed over a range of 4 mA to 20 mA. The AD9154 is available in two different 88-lead LFCSP packages.

Product Highlights

Ultrawide signal bandwidth enables emerging wideband and multiband wireless applications.
Advanced low spurious and distortion design techniques provide high quality synthesis of wideband signals from baseband to high intermediate frequencies.
JESD204B Subclass 1 support simplifies multichip synchronization.
Small package size with a 12 mm × 12 mm footprint.

Applications

Wireless communications
Multicarrier LTE and GSM base stations
Wideband repeaters
Software defined radios
Wideband communications
Point to point microwave radio
Transmit diversity, multiple input/multiple output (MIMO)
Instrumentation
Automated test equipment
