ADPD7008

RECOMMENDED FOR NEW DESIGNS

Multimodal Sensor Front End

Analog Devices ADPD7008 Product Info

10 February 2026 4

Features

Optical channel
- 4 input channels with multiple operation modes for various sensor measurements
- 4-channel processing with simultaneous sampling
- 12 programmable time slots for synchronized sensor measurements
- Flexible input multiplexing to support single-ended sensor measurements
- 8 LED drivers, 2 of which can be driven simultaneously
- Flexible sampling rate from 0.004 Hz to 9 kHz using internal oscillators

AC ambient light rejection: 78 dB up to 100 Hz
400 mA total LED peak drive current
Individual ambient cancellation DAC at TIA input with 9-bit control up to 300 μA
Individual LED DC cancellation DAC at TIA input with 7-bit control up to 190 μA

SPI communications supported

704-byte FIFO

Part details & applications

The ADPD7008 is a highly integrated analog front end (AFE) designed for measuring various vital signals.

The optical channel is designed as an optical transceiver, stimulating up to eight light emitting diodes (LEDs) and measuring the return signal on up to four separate current inputs. The signal chain rejects signal offsets and corruption from asynchronous modulated interference, typically from ambient light, eliminating the need for optical filters or externally controlled DC cancellation circuitry.

The data output and functional configuration use a serial port interface (SPI) on the ADPD7008. The control circuitry includes flexible LED signaling and synchronous detection, digital filters, digital wave generators, and configurable filters.

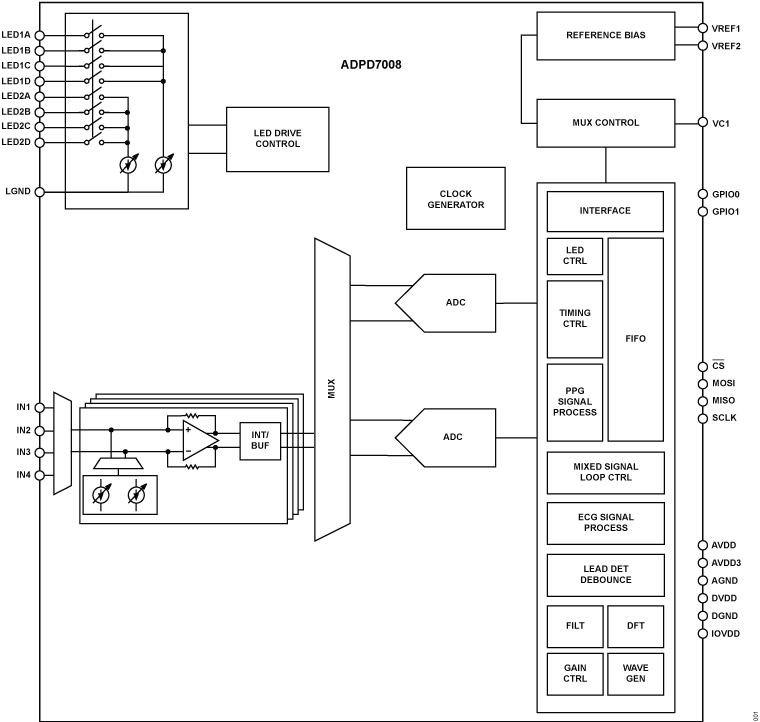

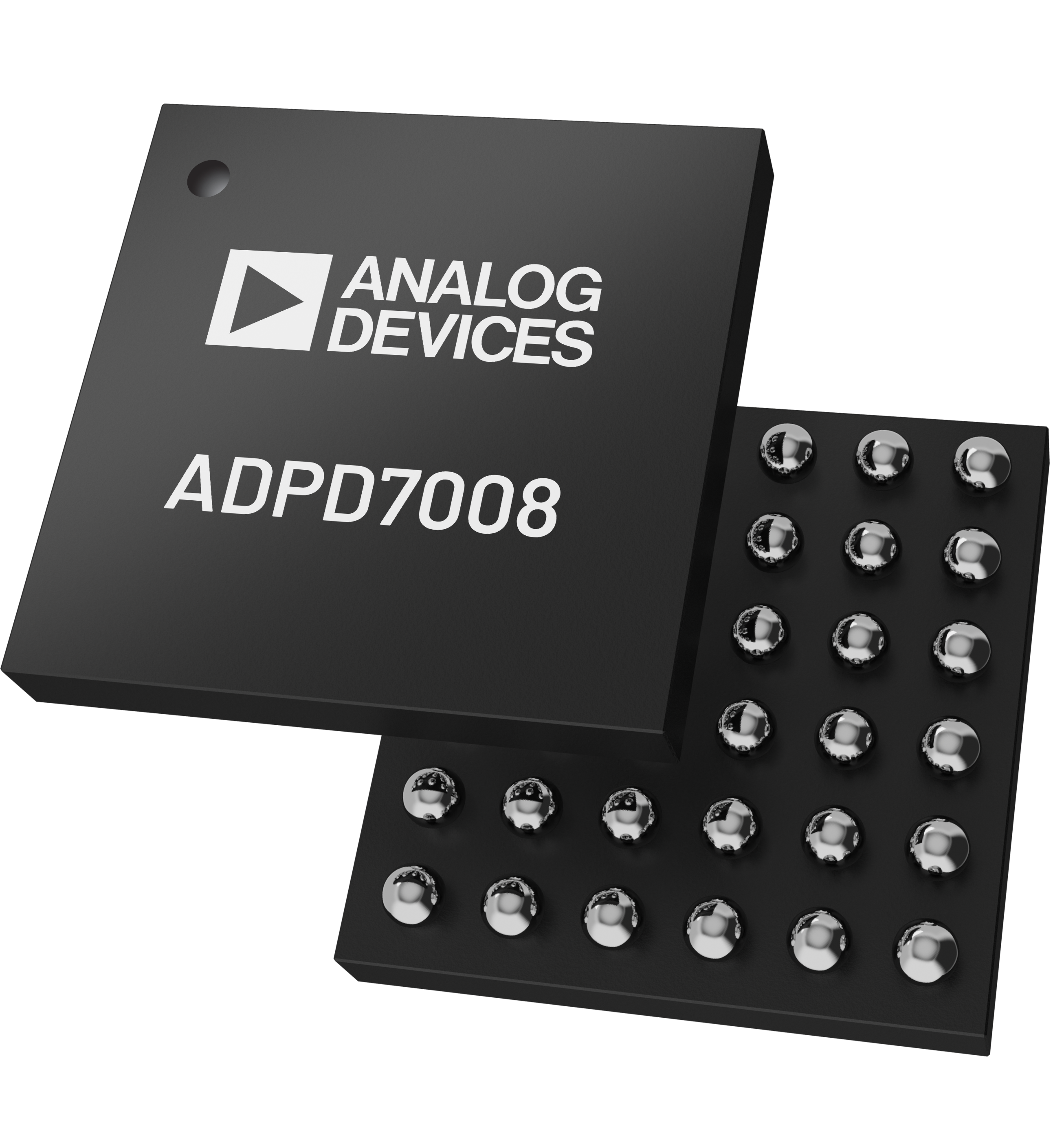

The ADPD7008 is available in a 2.795 mm × 2.560 mm, 0.40 mm pitch, 36-ball WLCSP.

APPLICATIONS

Wearable health and fitness monitors: heart rate, heart rate variability, and saturation level of pulse oxygen
Clinical patient monitors: small bed side patient, home portable patient, and small remote patient
Industrial monitoring: particle, aerosol, and gas detection
