NOT RECOMMENDED FOR NEW DESIGNS

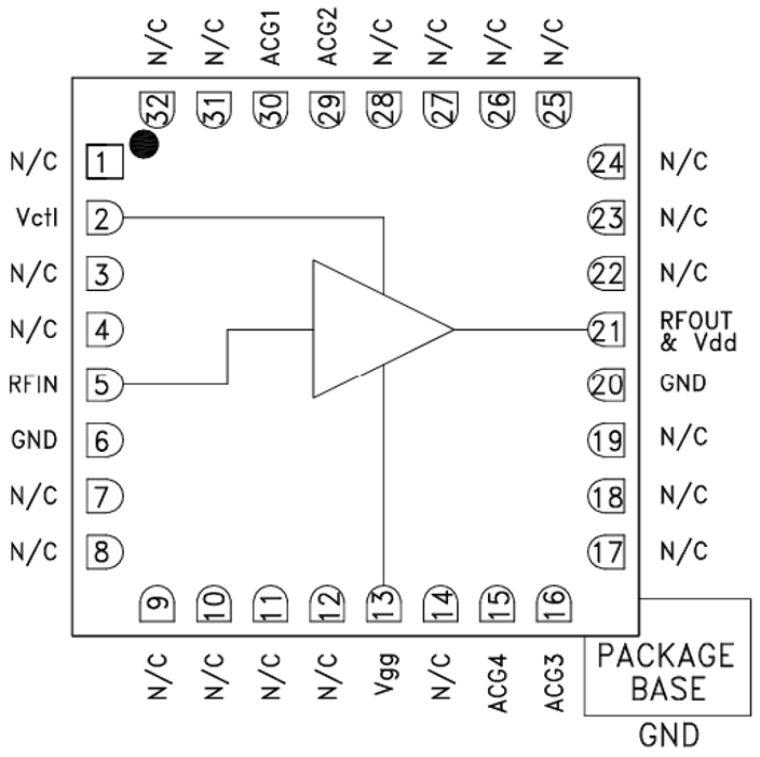

The ADH870S is a GaAs MMIC PHEMT MZ optical modulator driver that operates between DC and 20 GHz. The amplifier provides 17 dB of gain, 8 Vp-p saturated output swing and features output swing cross point adjustment. Gain flatness is excellent at ±0.5 dB as well as very low additive RMS jitter of 300 fs for 10 Gbps operation.
The ADH870S provides Metro and Long-Haul designers with scalable power dissipation for varying output drive requirements. (<0.4 W at VOUT = 3.6 Vp-p and < 1 W at VOUT = 8.5 Vp-p). The ADH870S has a very wide supply (Vdd) operating range from +3.3 V to +7 V, and the RF I/Os are internally matched to 50 Ohms.
Applications
