Analog Devices ADG5419 Product Info

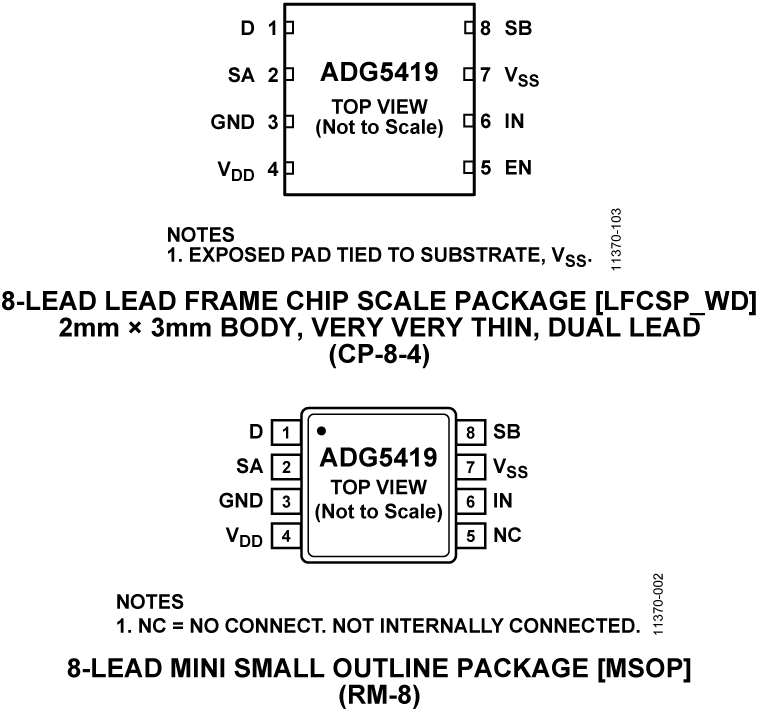

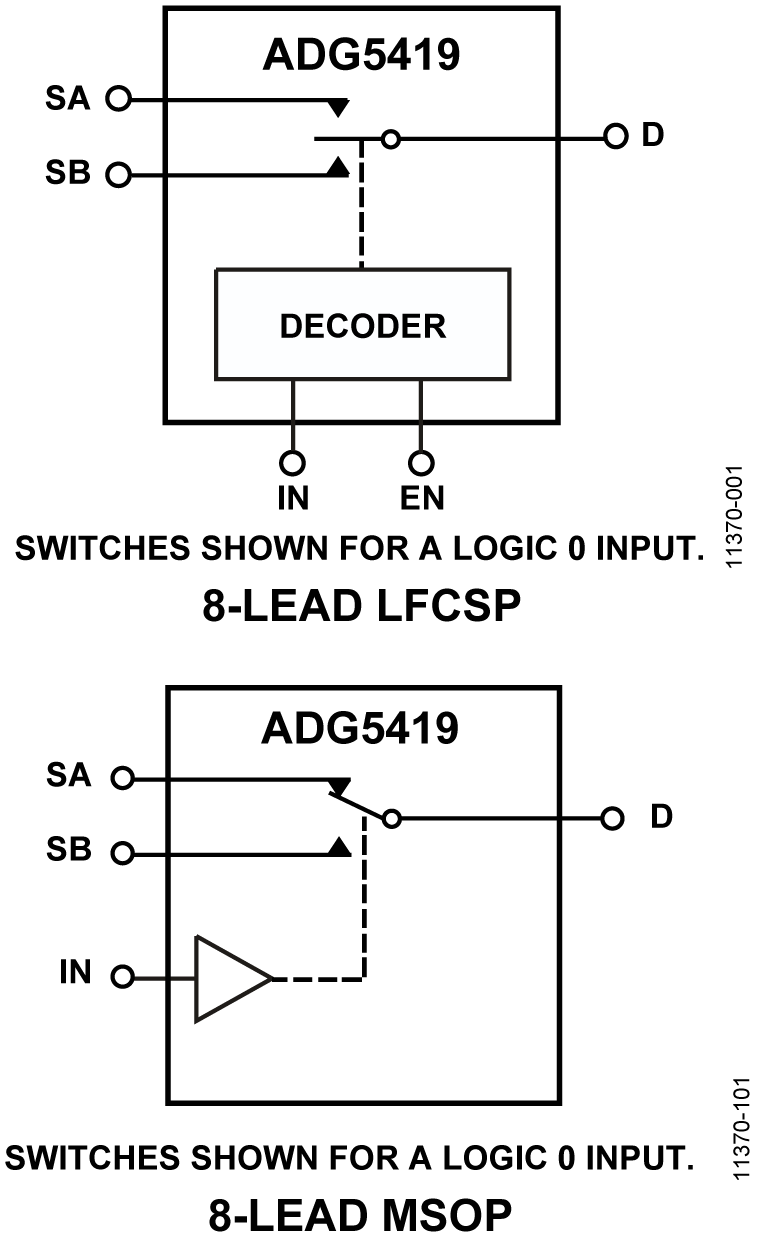

The ADG5419 is a monolithic industrial CMOS analog switch containing a latch-up immune single-pole/double-throw (SPDT) switch. An EN input on the LFCSP package is used to enable or disable the device. When disabled, all channels are switched off.

Each switch conducts equally well in both directions when on, and each switch has an input signal range that extends to the power supplies. In the off condition, signal levels up to the supplies are blocked. The ADG5419 exhibits break-before-make switching action for use in multiplexer applications.

The ultralow on resistance and on-resistance flatness of these switches make them ideal solutions for data acquisition and gain switching applications, where low distortion is critical. The latch-up immune construction, and high ESD rating, makes these switches more robust in harsh environments.

PRODUCT HIGHLIGHTS

1. Trench isolation guards against latch-up. A dielectric trench
   separates the P and N channel transistors thereby preventing
   latch-up even under severe overvoltage conditions.
2. Low R_ON.
3. Dual-supply operation. For applications where the analog
   signal is bipolar, the ADG5419 can be operated from dual
   supplies up to ±22 V.
4. Single-supply operation. For applications where the analog
   signal is unipolar, the ADG5419 can be operated from a
   single-rail power supply up to 40 V.
5. 3 V logic compatible digital inputs: V_INH = 2.0 V, V_INL = 0.8 V.
6. No V_L logic power supply required.

APPLICATIONS

• High voltage signal routing
• Automatic test equipment
• Analog front-end circuits
• Precision data acquisition
• Industrial Instrumentation
• Amplifier gain select
