ADE9103

RECOMMENDED FOR NEW DESIGNS

Non-Isolated, Sigma-Delta ADCs with SPI

Analog Devices ADE9103 Product Info

10 February 2026 6

Features

2 (ADE9112) or 3 (ADE9113) channel isolated, simultaneously sampling Σ-Δ ADCs, with integrated isoPower, isolated dc-to-dc converters

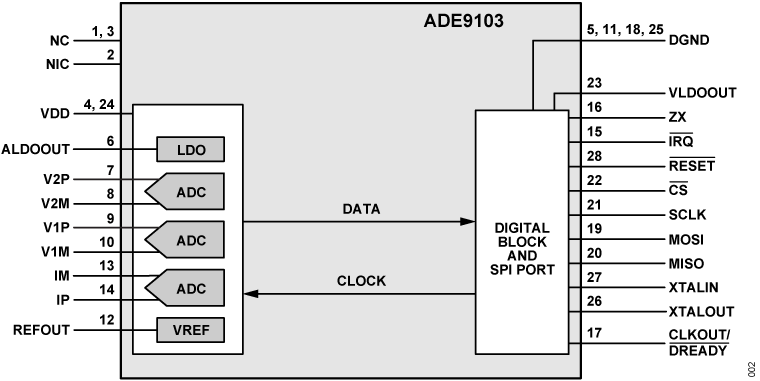

3 (ADE9103) channel nonisolated, simultaneously sampling Σ-Δ ADCs
Synchronization of multiple ADE9103/ADE9112/ADE9113 devices
4-wire SPI with bidirectional CRC and daisy-chain functionality
Unique SPI readable part ID registers
Up to 4 ADE9103/ADE9112/ADE9113 devices clocked from a single crystal or an external clock
IRQ hardware pin and registers for fault detection and robustness
Sample rate up to 32 kSPS
SNR up to 95 dB
±31.25 mV peak analog input voltage range for current channel
±500 mV peak single-ended analog input voltage range for voltage channels

Internal voltage reference temperature coefficient: <13 ppm/°C typical
ADC offset drift: <2 nV/°C typical
Ideal for both AC and DC measurement systems
Single 3.3 V supply for isolated and nonisolated measurements
Compact 28-lead, wide-body with finer pitch SOIC package with 8.3 mm creepage
Temperature range: −40°C to +125°C
Passes CISPR 32 Class B RF Emissions
ADE9112 and ADE9113 safety and regulatory approvals
- IEC 60747-17 certificate of conformity expected
- 5000 V RMS for 1 minute per UL 1577
- IEC 61010-1 and IEC 62368-1

Part details & applications

The ADE9103/ADE9112/ADE9113are precision simultaneously sampling Σ-Δ analog-to-digital converters (ADCs) for both DC and polyphase shunt-based energy metering applications. The ADE9113 integrates safety certified signal and power galvanic isolation with three simultaneously sampling fully differential 24-bit Σ-Δ ADC channels. The ADE9112 features two fully differential Σ-Δ ADC channels for isolated applications where only a single voltage channel is required. The ADE9103 is a nonisolated, 3-channel Σ-Δ ADC for use in applications where isolation is not required, such as for neutral measurement. The ADE9103/ADE9112/ADE9113 all include a high-gain, current channel best suited for use with a shunt resistor as the current sensor. Multiple ADE9103/ADE9112/ ADE9113 devices can be synchronized to sample simultaneously and provide coherent outputs.

The current channel ADC provides an 86 dBFS signal-to-noise ratio (SNR), at a sample rate of 4 kSPS, over a 1.65 kHz signal bandwidth and a typical gain drift of 13 ppm/°C, which enables down to Class 0.2 accuracy. The voltage ADCs provide an SNR of 91 dBFS over the same sample rate and bandwidth. The high gain on the current channel (IP and IM) aids the use of lower resistance shunts for reduced losses due to heat. The low offset drift of 2 nV/°C offers the performance required for DC metering.

The ADE9103/ADE9112/ADE9113 delivers system cost savings and increased robustness. The main ADE9103/ADE9112/ADE9113 can drive clocks of up to three additional ADE9103/ADE9112/ ADE9113 with a single crystal. The bidirectional, serial port interface (SPI) supports a daisy-chain capability, allowing access to all registers while reducing the required microcontroller pin count. The 28-lead SOIC_W_FP allows more compact layouts. Valid data transfers are ensured with bidirectional, cyclic redundancy check (CRC) and IRQ pin alerts the system o
