Analog Devices MAX178 Product Info

• Continuous Transparent Calibration of Offset and Gain
• True 12-Bit Performance without Adjustments
• T/H Front End and Internal Reference
• DC and Dynamically Specified
• Zero Error Typically <100μV
• Standard Microprocessor Interface

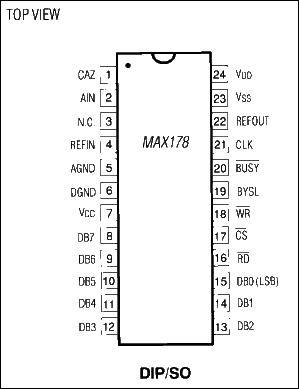

• 24-Pin DIP and Wide SO Packages

The MAX178 is a complete, calibrated 12-bit A/D converter (ADC) which includes a precision voltage reference, track-and-hold, and conversion clock. Internal calibration circuitry maintains true 12-bit performance over the full operating temperature range without external adjustments. In addition, each conversion includes an auto-zero cycle which reduces zero errors to typically below 100μV.

CHIP SELECT, READ, and WRITE inputs are included for easy microprocessor interfacing without additional logic. 2-byte, 12-bit conversion data is provided over an 8-bit three-state output bus. Either byte may be read first. Two converter busy flags facilitate polling of the converter's status.

The MAX178's analog input range is 0V to +5V when using a +5V reference. The MAX178A's internal reference accuracy is ±0.3%, while the MAX178B is intended for use with an external reference.

Applications

• Audio and Telecom Processing
• Digital-Signal Processing
• High-Accuracy Process Control
• High-Speed Data Acquisition
