Analog Devices MAX11960 Product Info

• 20-Bit Resolution with No Missing Codes
• 1Msps Throughput with No Pipeline Delay
• 18mW at 1Msps, Ultra-Low Power Consumption
• ±1.5 LSB INL, Over Temperature
• ±1 LSB DNL Maximum at 20 Bits
• 99dB SNR at f_IN = 10kHz
• 99dB SINAD at f_IN = 10kHz
• -123dB THD at f_IN = 10kHz
• ±V_REF Unipolar Differential Analog Input Range
• V_REF = 2.5V to 3.6V
• Integrated Reference Buffers
• 1.8V Analog and Digital Core Supply
• 3.3V REFVDD Reference Buffer Supply
• 1.5V to 3.6V Digital Interface Supply
• Serial Interface SPI/QSPI™/MICROWIRE^®/DSP-Compatible
• -40°C to +85°C Operation*
• 32-Pin, 5mm × 5mm, TQFN Package

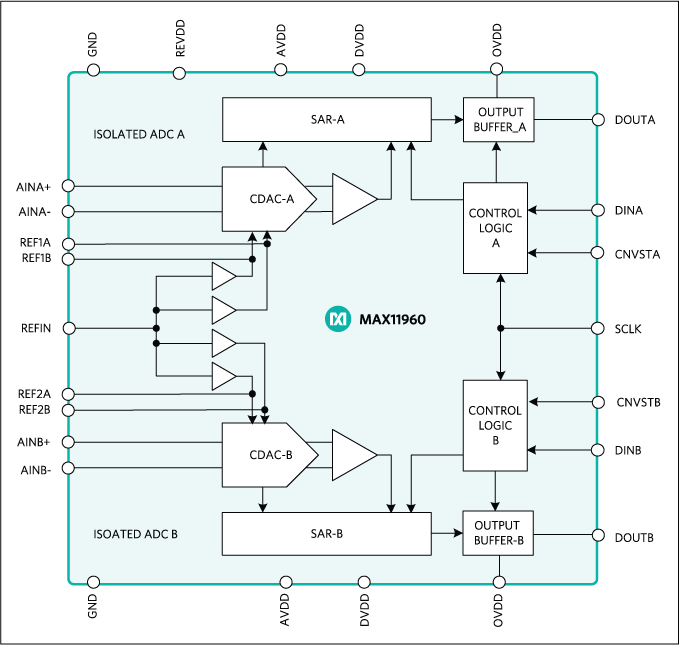

The MAX11960 is a 20-bit, 1Msps, dual simultaneous sampling, fully differential SAR ADC with internal reference buffers. The MAX11960 provides excellent static and dynamic performance with best-in-class power consumption that directly scales with throughput. The device has a unipolar differential ±V_REF input range. Supplies include a 3.3V supply for the reference buffers, a 1.8V analog supply, a 1.8V digital supply, and a 1.5V to 3.6V digital interface supply.

This ADC achieves 99dB SNR and -123dB THD, guarantees 20-bit resolution with no-missing codes and 5 LSB INL (max).

The MAX11960 communicates data using a SPI-compatible serial interface. The MAX11960 is offered in a 32-pin, 5mm × 5mm, TQFN package and is specified over the -40°C to +85°C operating temperature range.

Applications

• Automatic Test Equipment
• Data Acquisition Systems
• Encoder and Resolver in Motion Control
• Medical Instrumentation
• Process Control and Industrial Automation
• Redundant Measurement
• Telecommunications
