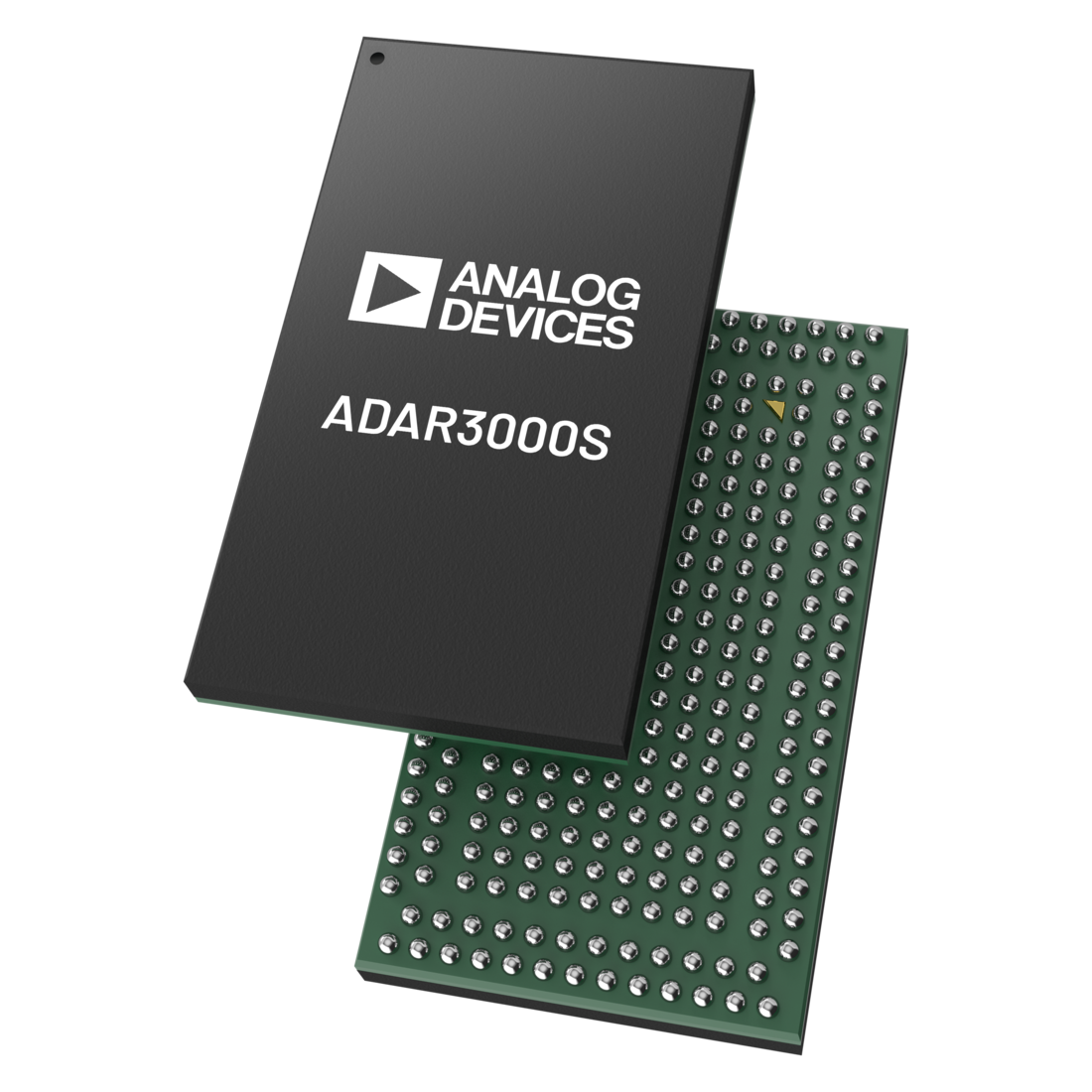

ADAR3000S

RECOMMENDED FOR NEW DESIGNS

Analog Devices ADAR3000S Product Info

10 February 2026 5

7 GHz to 22 GHz frequency range
Low power dissipation (<12 mW per channel)
4-beam/4-element beamforming IC
Configurable for transmit or receive operation
Programmable time delay and step attenuator for beam steering
Internal memory for storing beam positions
User programmable sequencer for quick and efficient beam state selection
- Update, reset, & mute beam commands issued via pins or SPI
- Supports beam hopping and raster scanning
Integrated ADC for:
- Temperature sensor
- General analog inputs
Programmable bias modes
16 chip parallel addressability over 4-wire SPI interface
BGA package with Pb-free ball terminal (SAC305)

Commercial Space Features

Supports aerospace applications
Certificate of Conformance
Wafer diffusion lot traceability
Qualification based on flows per NASA PEM-INST-001 and SAE AS6294
Burn-in life test, and deltas analysis
Radiation monitors
- TID benchmark characterization
- Radiation lot acceptance test (RLAT) for production TID assurance
- SEL benchmark characterization
Outgassing characterization

ADAR3000S
