Analog Devices AD7699 Product Info

The AD7699 is an 8-channel, 16-bit, charge redistribution successive approximation register (SAR) analog-to-digital converter (ADC) that operates from a single power supply, V_DD.

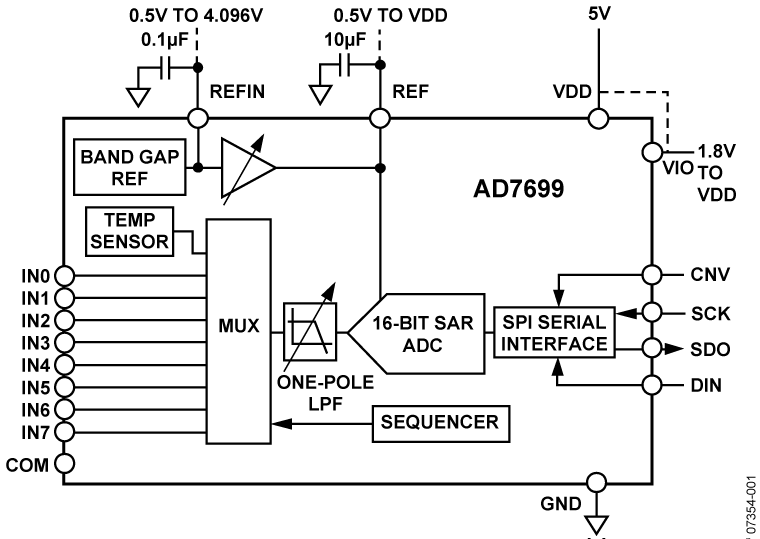

The AD7699 contains all components for use in a multichannel, low power data acquisition system, including a true 16-bit SAR ADC with no missing codes; an 8-channel low crosstalk multiplexer useful for configuring the inputs as single-ended (with or without ground sense), differential, or bipolar; an internal 4.096 V low drift reference and buffer; a temperature sensor; a selectable one-pole filter; and a sequencer that is useful when channels are continuously scanned in order.

The AD7699 uses a simple serial port interface (SPI) for writing to the configuration register and receiving conversion results. The SPI interface uses a separate supply, VIO, which is set to the host logic level. Power dissipation scales with throughput.

The AD7699 is housed in a tiny 20-lead LFCSP and a 20-ball WLCSP with operation specified from −40°C to +85°C.

APPLICATIONS

• Battery-powered equipment
• Medical instruments: ECG/EKG
• Mobile communications: GPS
• Personal digital assistants
• Power line monitoring
• Data acquisition
• Seismic data acquisition systems
• Instrumentation
• Process control
