Analog Devices MAX198 Product Info

• 12-Bit Resolution, 1/2 LSB Linearity
• Single +5V Supply Operation
• Software-Selectable Input Ranges:
  • ±10V, ±5V, 0V to +10V, 0V to +5V (MAX196)
  • ±V_REF, ±V_REF/2, 0V to +V_REF, 0V to +V_REF/2 (MAX198)
• Internal 4.096V or External Reference
• Fault-Protected Input Multiplexer
• 6 Analog Input Channels
• 6µs Conversion Time, 100ksps Sampling Rate
• Internal or External Acquisition Control
• Two Power-Down Modes
• Internal or External Clock

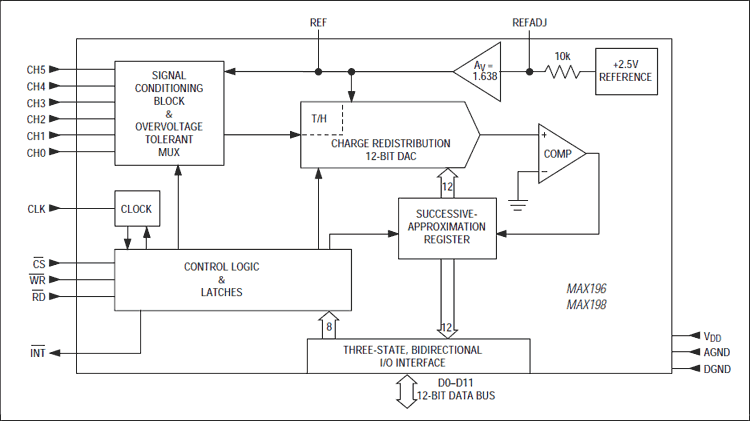

The MAX196/MAX198 multirange, 12-bit data-acquisition systems (DAS) require only a single +5V supply for operation, yet convert analog signals at their inputs up to ±10V (MAX196) and ±4V (MAX198). These systems provide six analog input channels that are independently software programmable for a variety of ranges: ±10V, ±5V, 0V to +10V, and 0V to +5V for the MAX196; ±V_REF, ±V_REF/2, 0V to +V_REF, and 0V to +V_REF/2 for the MAX198. This range switching increases the effective dynamic range to 14 bits and provides the flexibility to interface ±12V, ±15V, and 4mA to 20mA powered sensors to a single +5V system. In addition, these converters are fault protected to ±16.5V; a fault condition on any channel will not affect the conversion result of the selected channel. Other features include a 5MHz bandwidth track/hold, 100ksps throughput rate, software-selectable internal/external clock, internal/external acquisition control, 12-bit parallel interface, and internal 4.096V or external reference.

Two programmable power-down modes (STBYPD, FULLPD) provide low-current shutdown between conversions. In STBYPD mode, the reference buffer remains active, eliminating start-up delays.

The MAX196/MAX198 employ a standard microprocessor (µP) interface. A three-state data I/O port is configured to operate with 16-bit data buses, and data-access and bus-release timing specifications are compatible with most popular µPs. All logic inputs and outputs are TTL/CMOS compatible.

These devices are available in 28-pin DIP, wide SO, SSOP (55% smaller in area than wide SO), and ceramic SB packages. For 8+4 bus interface, see the MAX197 and the MAX199 data sheets. An evaluation kit is available (MAX196EVKIT-DIP).

Applications

• Automated Test Equipment (ATE)
• Data Acquisition
• Industrial Controls Systems
<
